ANYLOAD | 247ASLH Load Button, Stainless Steel, Environmentally Sealed, IP66

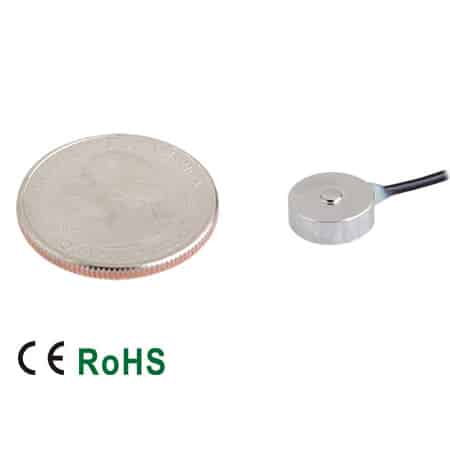

247ASLH Load Button

Description:

The 247ASLH load button is a versatile and compact compression weighing and force measurement solution well suited to applications where space and weight may be limited. The IP66 waterproof stainless steel construction and 150% safe overload provide a robust product that performs reliably and accurately in challenging conditions.

Anyload is equipping growth in the force measurement industry with this portable and reliable load cell, click here to see more force measurement products.

Features:

  • Material: Stainless steel
  • Rated Capacities: 10kg, 25kg, 50kg, 100kg, 250kg, 500kg, 1t, 2t, 5t, 10t
  • Full Scale Output: Cap. ≤ 10kg: ≥0.8mV/V; Cap. > 10kg: 2.0mV/V ± 20%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • IP Rating: IP66
Clear
Product Enquiry
Rated Capacity 10kg, 25kg, 50kg, 100kg, 250kg, 500kg, 1t, 2t, 5t, 10t
Thread No thread (10kg, 25kg, 50kg, 100kg); Metric thread (250kg, 500kg, 1t, 2t, 5t, 10t)
Full Scale Output Cap. ≤ 10kg: ≥0.8mV/V; Cap. > 10kg: 2.0mV/V ± 20%
Zero Balance CAP≤10kg: ±0.03mV/V CAP>10kg: ±0.04mV/V
Non-linearity < ± 0.5%
Repeatability < ± 0.5%
Hysteresis Error < ± 0.5%
Creep in 30 minutes < ± 0.5%
Input Resistance Cap. ≤ 500kg: 375Ω ±25Ω; Cap. > 500kg: 700Ω ±25Ω
Output Resistance Cap. ≤ 500kg: 350Ω ±3Ω; Cap. > 500kg: 700Ω ±3Ω
Recommended Excitation Cap. ≤ 10kg: 5V (7V Maximum); Cap. > 10kg: 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet

pdf- 247ASLH, (10-500)kg

pdf- 247ASLH, (1-10)t

Note: You may need a software that can open/view STEP files.

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity
