ANYLOAD | 247AS Load Button, Stainless Steel, Environmentally Sealed, IP66

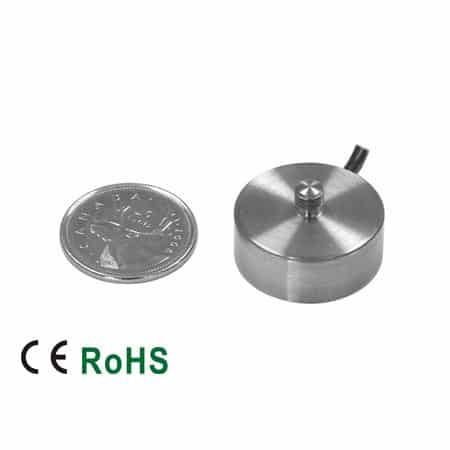

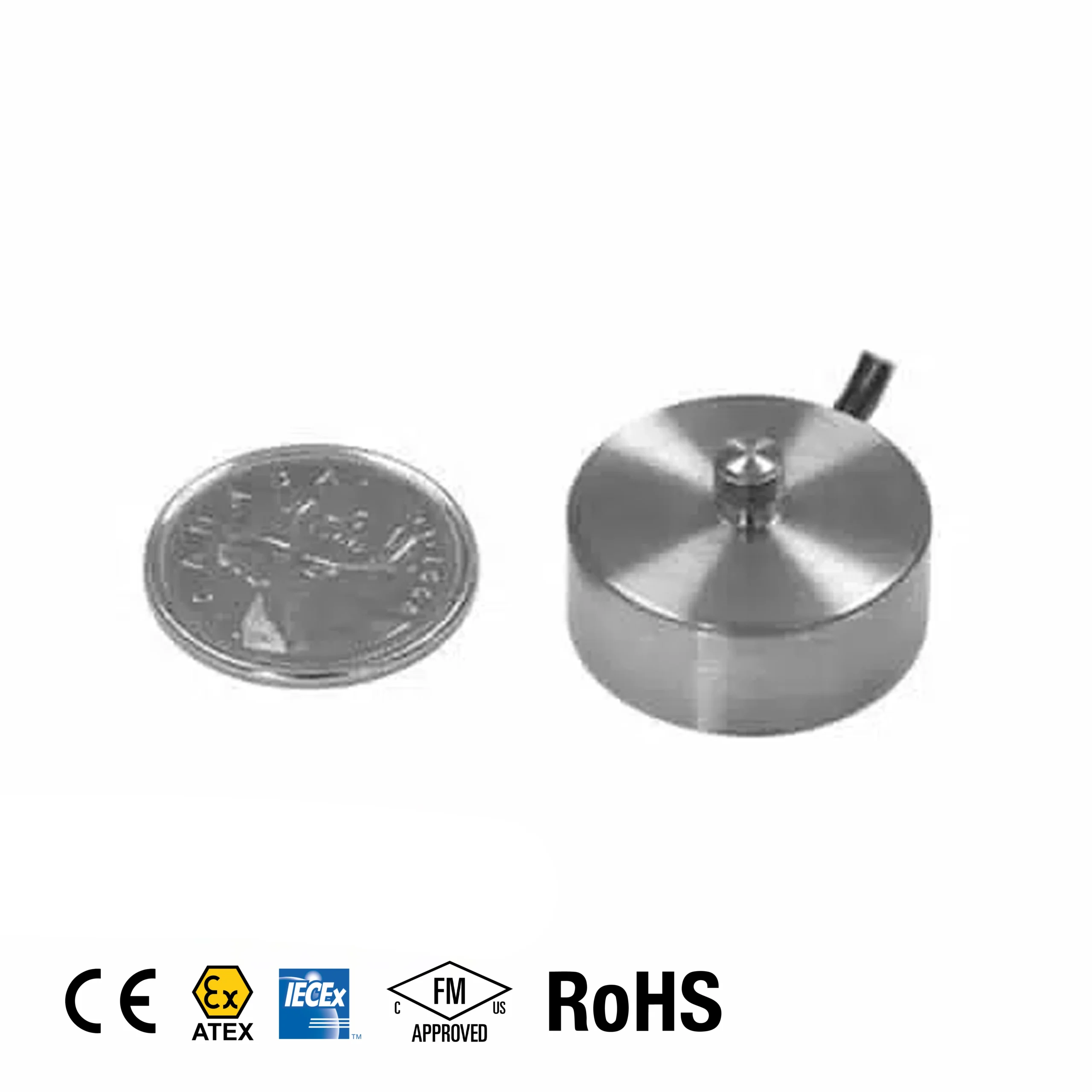

247AS Load Button

Description:

The 247AS is a versatile and cost-effective stainless steel load button with IP66 water resistance and corrosion resistance. The compact design is ideal for compression weighing and force measurement wherever space and weight are limited. This model is particularly popular in automation, vehicle maintenance, sports science, and many other industries.

Features:

  • Material: Stainless steel
  • Rated Capacities: 30kg, 50kg, 100kg, 150kg, 200kg, 500kg, 1t, 2t, 5t
  • Full Scale Output: Cap.≤30kg: 1.0mV/V±20%; Cap.≥50kg: 1.5mV/V±20%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • IP Rating: IP66
Clear
Product Enquiry
SKU: N/A Categories: ,
Rated Capacity 30kg, 50kg, 100kg, 150kg, 200kg, 500kg, 1t, 2t, 5t
Full Scale Output Cap.≤30kg: 1.0mV/V±20%; Cap.≥50kg: 1.5mV/V±20%
Zero Balance ± 0.03mV/V
Non-linearity < ± 0.5%
Repeatability < ± 0.3%
Hysteresis Error < ± 0.5%
Creep in 30 minutes < ± 0.5%
Input Resistance 375Ω ±25Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.020% of Cn/k
Temperature Effect on Zero Balance < ± 0.020% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet

pdf- 247AS,(30-2000)kg

pdf- 247AS,(2-5)t

Note: You may need a software that can open/view STEP files.

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity
