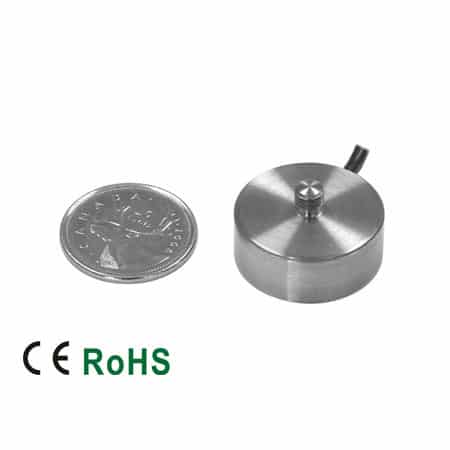

247AA Load Button


The 247AA is a reliable and cost-saving load button for compression. This load button serves as a versatile solution, especially where space and weight are limited. Load buttons are especially popular in force measurement and weighing in the medical, automotive, and automation industries.


  • Material: Aluminum
  • Rated Capacities: 1kg, 2kg, 5kg, 10kg, 20kg
  • Full Scale Output: 1.0mV/V±20%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • IP Rating: IP66
Rated Capacity 1kg, 2kg, 5kg, 10kg, 20kg
Full Scale Output 1.0mV/V±20%
Zero Balance ± 0.03mV/V
Non-linearity < ± 0.5%
Repeatability < ± 0.3%
Hysteresis Error < ± 0.5%
Creep in 30 minutes < ± 0.5%
Input Resistance 375Ω ±25Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.020% of Cn/k
Temperature Effect on Zero Balance < ± 0.020% of Cn/k
Nominal Temperature Range 10°C to 40°C/14°F to 104°F
Service Temperature Range 18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet

pdf- 247AA,(1-20)kg

Note: You may need a software that can open/view STEP files.

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity
