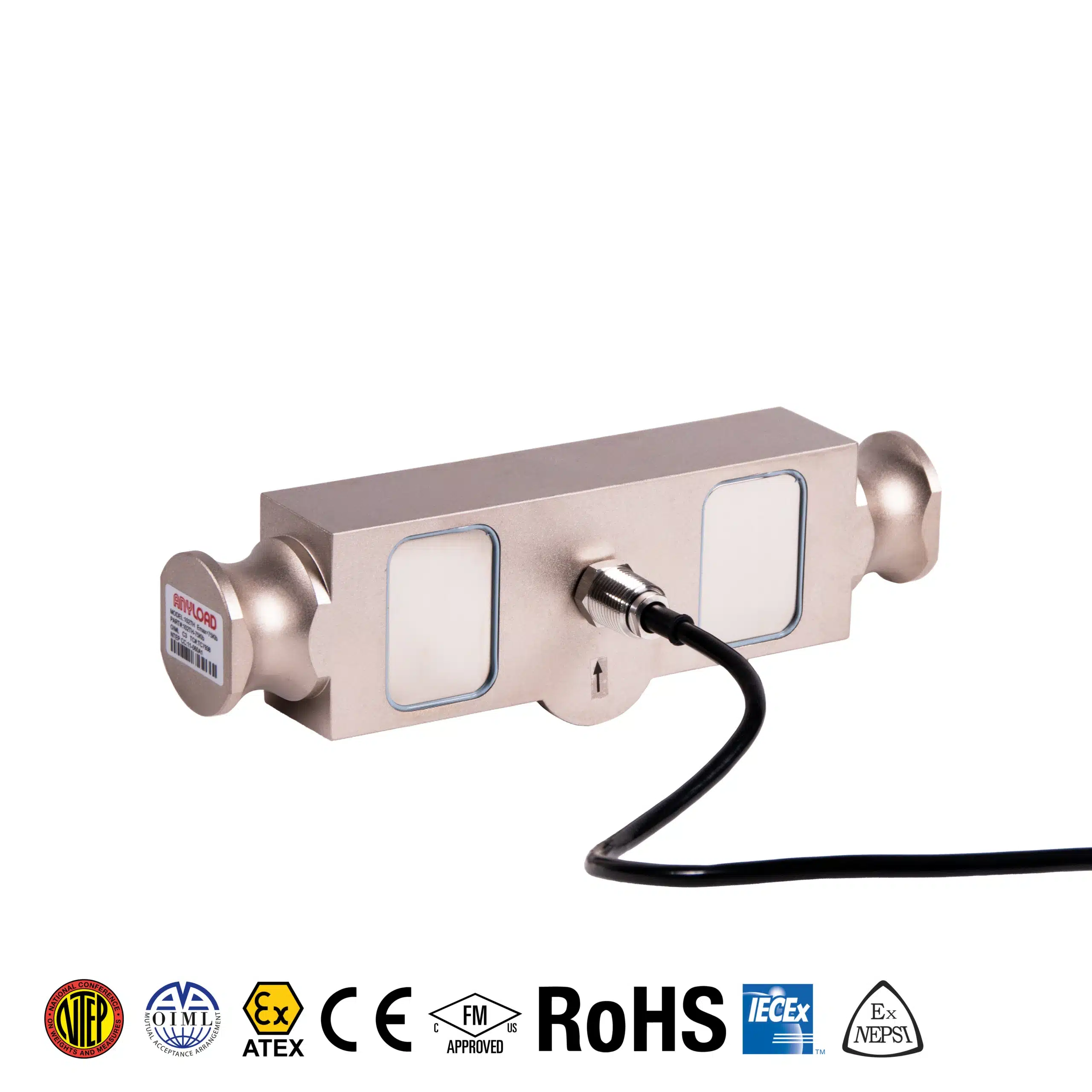

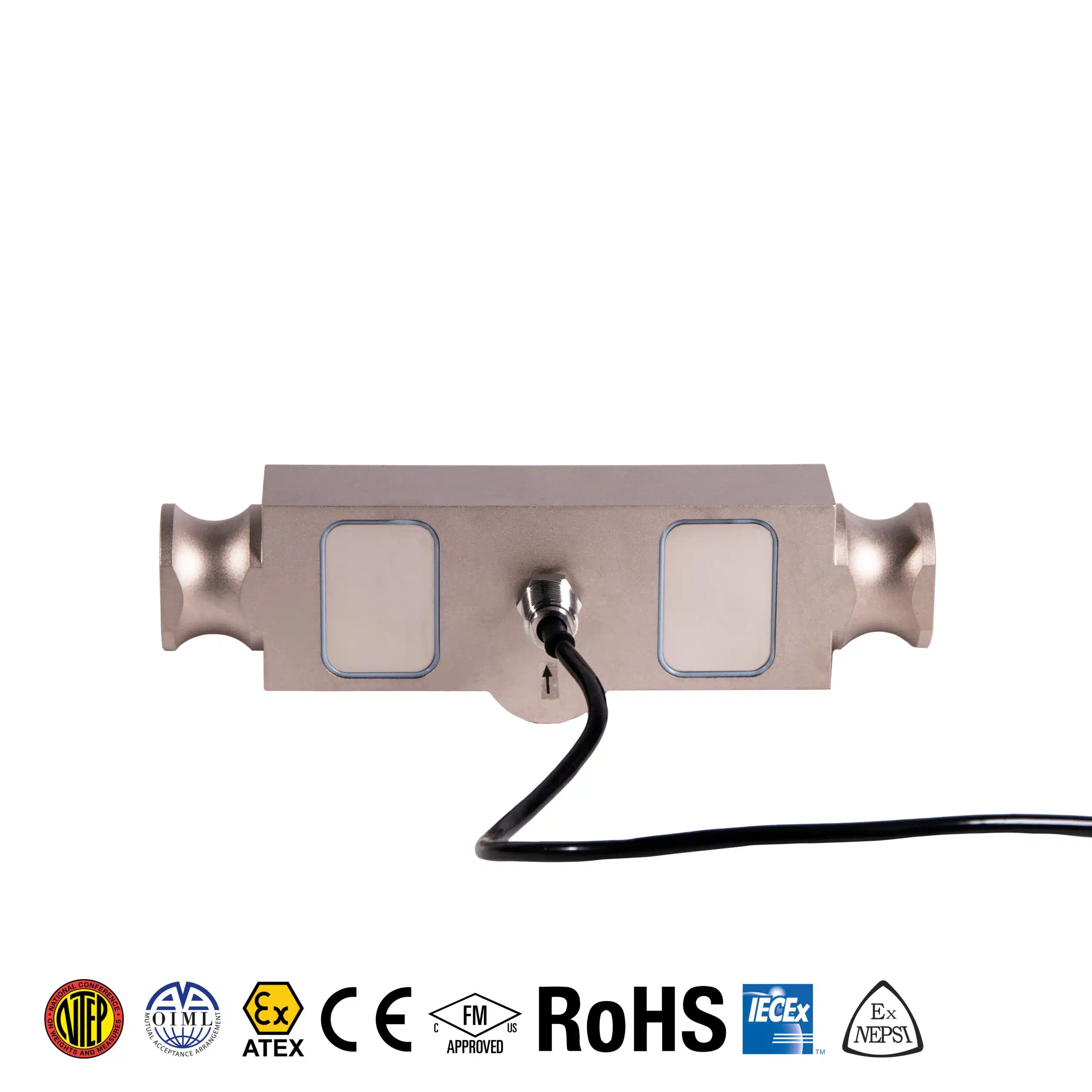

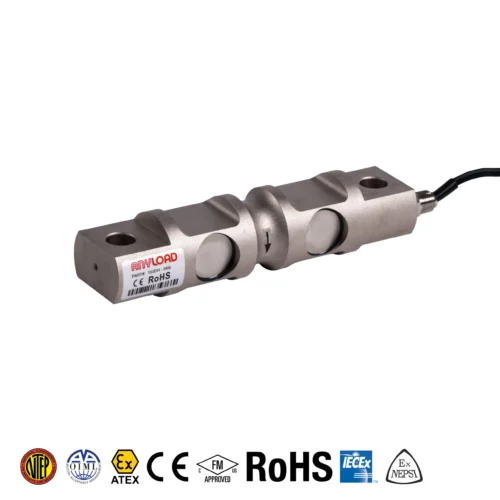

102TH Double Ended Beam Load Cell

The ANYLOAD 102TH is a nickel-plated alloy steel double ended beam load cell designed for high-capacity multiple-cell weighing systems. It is offered in rated capacities from 25Klb to 125Klb, including SE (small envelope) models at SE50Klb, SE60Klb, and SE75Klb. With a full scale output of 3.0 mV/V and a zero balance of ±0.02 mV/V, the 102TH delivers nonlinearity, hysteresis, and creep all held below ±0.023% of full scale, with repeatability below ±0.017%. Engineers and OEM designers get a dependable, environmentally sealed sensor rated IP67, with a safe overload of 150% and a breaking overload of 300% of full scale.

Installation and integration are straightforward. The datasheet provides dimensional drawings and tables in both inches and millimeters for each capacity group, along with the 1/2-14 NPT thread, approximate weights from 4.9 kg to 21.1 kg, and the full cable color code (Exc+ red, Exc- black, Sig+ green, Sig- white, shield bare). It also documents input and output resistance of 700Ω, a recommended excitation of 10V (15V maximum), and a compensated temperature range of -10°C to 50°C (14°F to 122°F). Standard cable is supplied at 10 m for capacities up to 40Klb and 18 m for SE50Klb and above. Optional versions include lightning protection and a lightning plus rodent protection 50ft cable variant, and a matching 102THM5-AA weigh module is available. Everything needed to specify, wire, and install the load cell is in one place, without guesswork.

The 102TH carries RoHS compliance, NTEP 1:10,000 Class IIIL multiple cell approval, and OIML MAA C4 (Y=15,000) approval for the 11t to 55t range. ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix. The built-in interchangeability reference cross-references equivalent models from Artech, Coti Global, Rice Lake, Vishay Celtron, Vishay Revere Transducers, and Vishay Sensortronics. This helps dealers, service technicians, and procurement teams quickly find a direct ANYLOAD replacement.

See more

- +

Features

  • Rated Capacities: 25Klb, 40Klb, SE50Klb, 50Klb, SE60Klb, 60Klb, SE75Klb, 75Klb, 100Klb, 125Klb
  • Material: Alloy steel
  • Full Scale Output: 3mV/V ± 0.25%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • IP Rating: IP67
  • NTEP 1:10 000 Class IIIL, Multiple Cell certified from 25Klb-125Klb
  • OIML MAA C4, Y=15 000 certified from 11t-55t
  • CE, RoHS and Ex(NEPSI) certified
  • ATEX, FM, IECEx available upon request
  • Lightning Protection Version
  • Interchangeable with Rice Lake RL75040

Specifications

Rated Capacities 25Klb, 40Klb, SE50Klb, 50Klb, SE60Klb, 60Klb, SE75Klb, 75Klb, 100Klb, 125Klb
Full Scale Output 3.0mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.023%
Input Resistance 700Ω ± 10Ω
Output Resistance 700Ω ± 5Ω
Element Material Alloy Steel, Nickel Plated
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Compensated Temperature Range –10°C to 50°C / 14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type / IP Rating Environmentally Sealed / IP67

Interchangeable

Artech 80310
Coti Global CG-BE40
Rice Lake RL75040
Vishay Celtron DLB
Vishay Revere Transducers 9323*
Vishay Revere Transducers 9903**
Vishay Sensortronics 65040A
