101BH S-Beam Load Cell, Alloy Steel, Environmentally Sealed, IP66/67

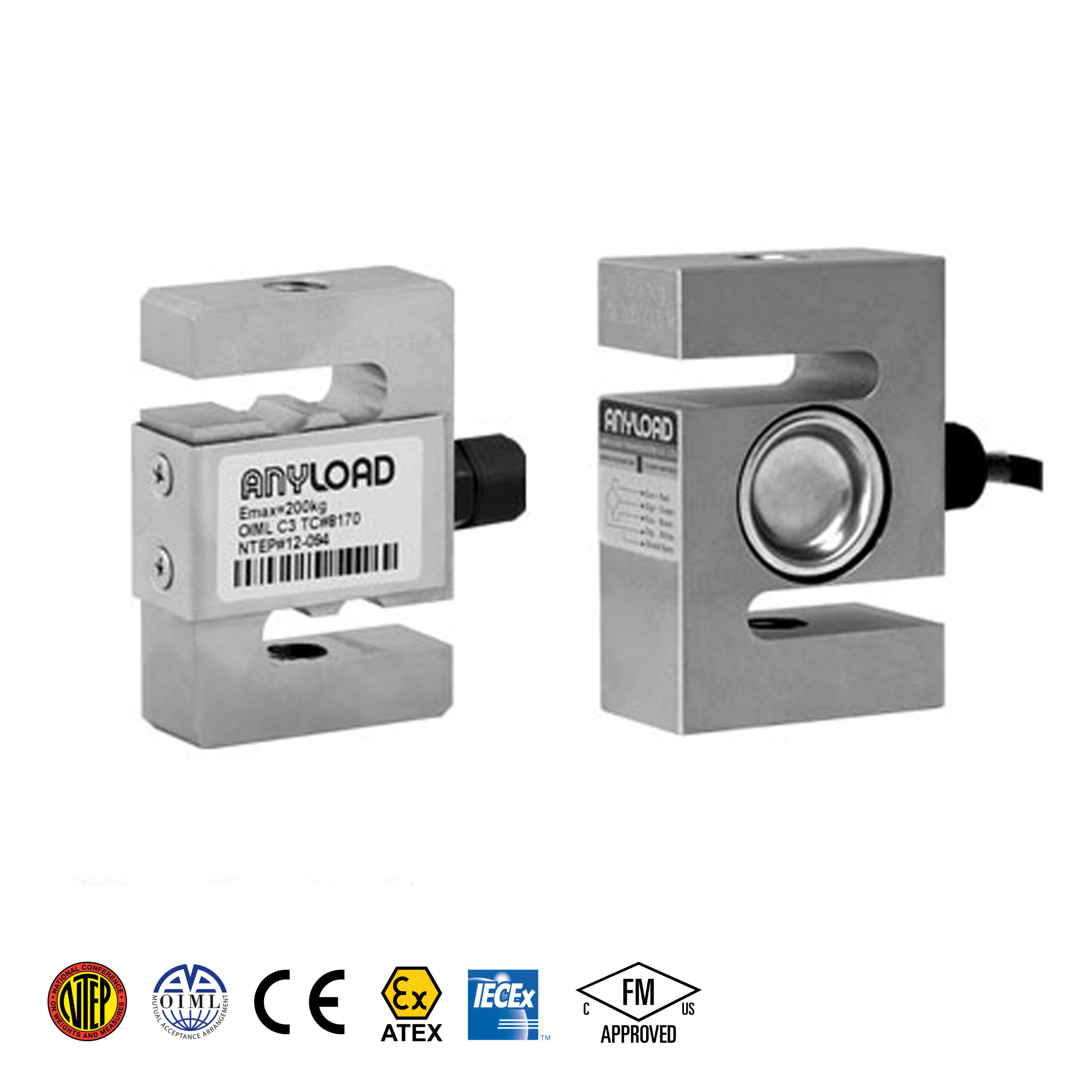

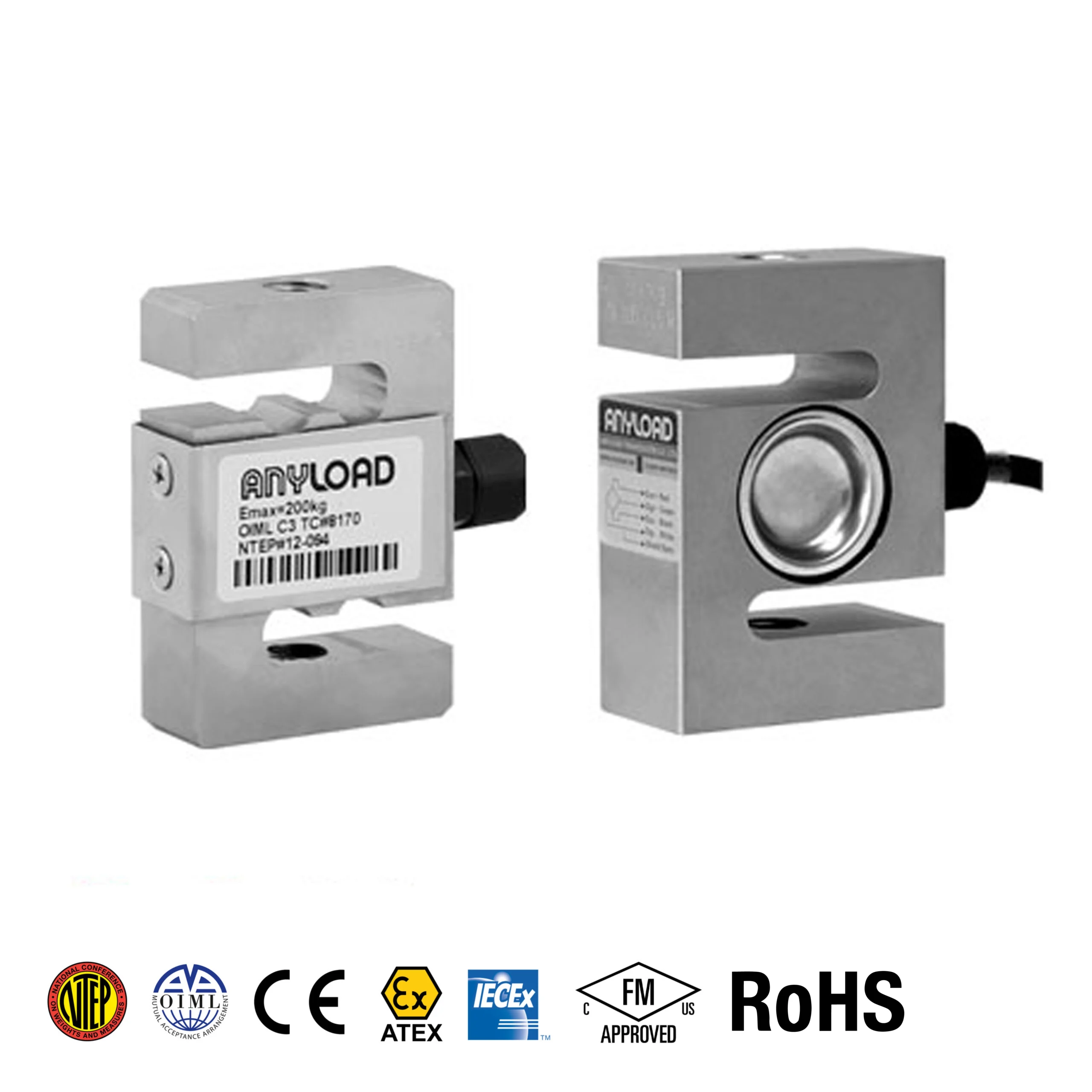

101BH S-Beam Load Cell

Description:

The 101BH S-beam is a highly versatile load cell with a wide range of capacities. The design offers excellent accuracy and reliability while remaining an affordable weighing solution. This model is OIML C3/C4.5 and NTEP certified and is interchangeable with Vishay Tedea-Huntleigh 615. The 101BH is ideal for many tension applications, including converting mechanical weighbridges, hopper weighing, and force measurement.

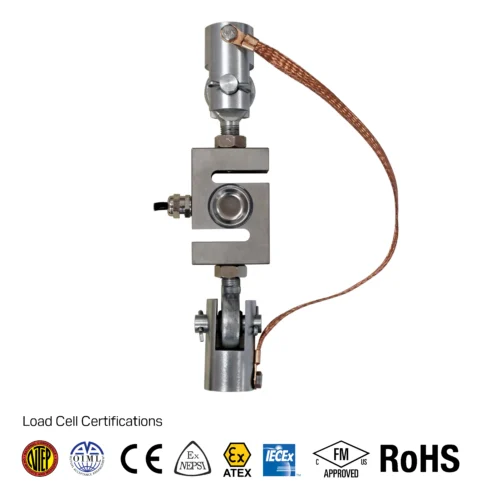

The 101BHM1 and 101BHM2 weigh modules facilitate high accuracy tension loading, including protection against stray currents. Anyload is equipping growth in the force measurement industry with this simple, portable, and reliable load cell, click here to see more force measurement products.

Features:

  • Material: Alloy steel
  • Rated Capacities: 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t
  • Full Scale Output: 2mV/V ± 1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
  • NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
  • OIML MAA C3, Y=17 000 certified from 200kg-1.5t
  • OIML MAA C4.5, Y=14 000 certified from 2t-10t
  • CE, RoHS and Ex certified
Clear
Product Enquiry
Rated Capacities 50kg, 100kg, 200kg, 300kg, 500kg, 1t, SE2t, 2t, 3t, 5t, 10t
Full Scale Output 2mV/V ± 1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 400Ω ± 25Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP67

pdf- Download data sheet

pdf- 101BH-(50-200)kg

pdf- 101BH-(300-1500)kg

pdf- 101BH-(2-10)t

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity
