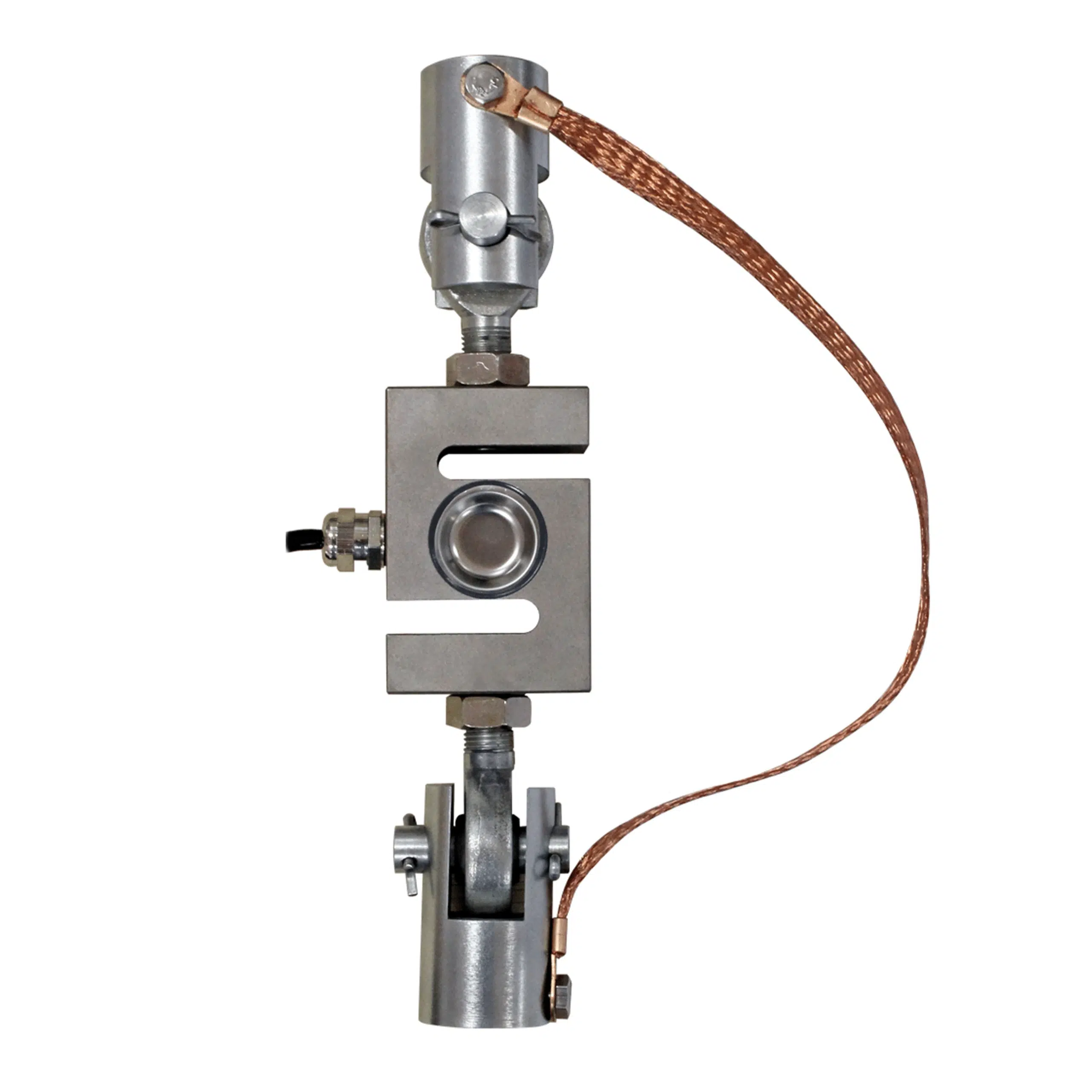

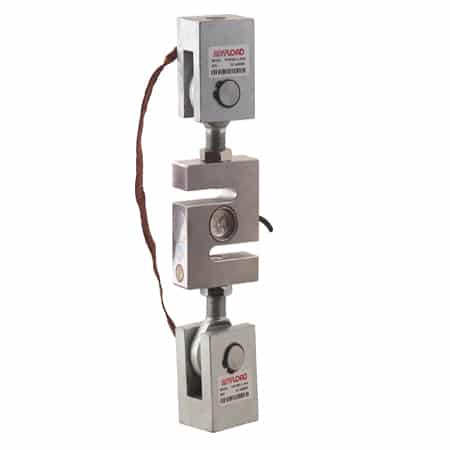

The ANYLOAD 101BHM2 is an alloy steel tension weigh module designed for high-accuracy tension loading with the ANYLOAD 101BH S-beam load cell. It is offered for load cell capacities from 50kg to 2t, under part numbers 101BHM2-(50-1500)kg and 101BHM2-2t. The module is built for engineers and OEM designers who need to integrate S-beam load cells into tension weighing and force measurement applications. The load cell itself is not included, so you can pair the module with the capacity your system requires.
The datasheet gives dimensional drawings and tables, in metric and imperial units, for each capacity group. They cover thread size and depth, mounting hole diameter, length, width, and the minimum and maximum height of the assembly. Approximate weights are listed as well: 1.3kg for the 50kg to 1.5t versions and 3.2kg for the 2t version. With these dimensions on one page, designers and installers can plan mounting, clearances, and fit without guesswork.
The ANYLOAD 101BHM2 datasheet carries RoHS and OIML marks. Specifications are subject to change without notice, and customers should verify the applicability of the information at the time of order.
