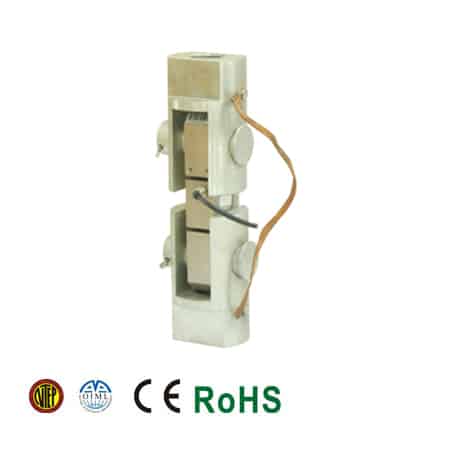

110BHM3 Tension Weigh Module

Available in four capacity variants — 110BHM3-1t, 110BHM3-2t, 110BHM3-5t, and 110BHM3-10t — the module scales in both physical dimensions and mounting thread specifications to match the associated load cell capacity, ranging from 1/2-20 UNF to 1-1/2-12 UNF thread patterns. The compact alloy steel construction keeps module weight between 0.6 kg and 6.4 kg depending on capacity, making it practical for overhead, suspended, and hanging scale installations where space and weight are considerations.

The 110BHM3 is suited for tension-based industrial weighing applications such as hanging scales, overhead crane scales, hopper suspension systems, tank and silo weighing in tension configurations, and other suspended load measurement setups. Its compatibility with OIML-certified 110BH load cells and approvals including ATEX, IECEx, FM, CE, and RoHS makes it appropriate for use in legal-for-trade, hazardous area, and compliance-driven industrial environments.

For guidance on selecting the correct capacity or integrating the 110BHM3 into a complete tension weighing system, contact ANYLOAD. Our engineering team supports system integrators, OEMs, and industrial weighing professionals in matching weigh modules to specific load cell configurations and application requirements.
