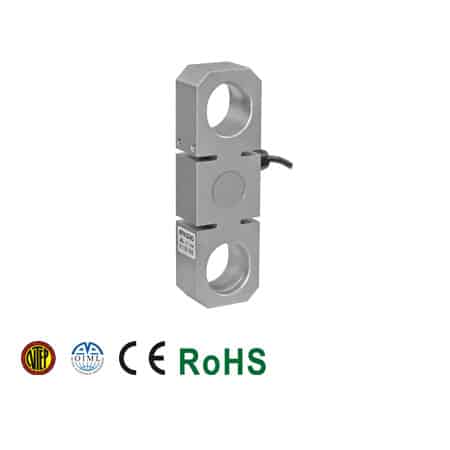

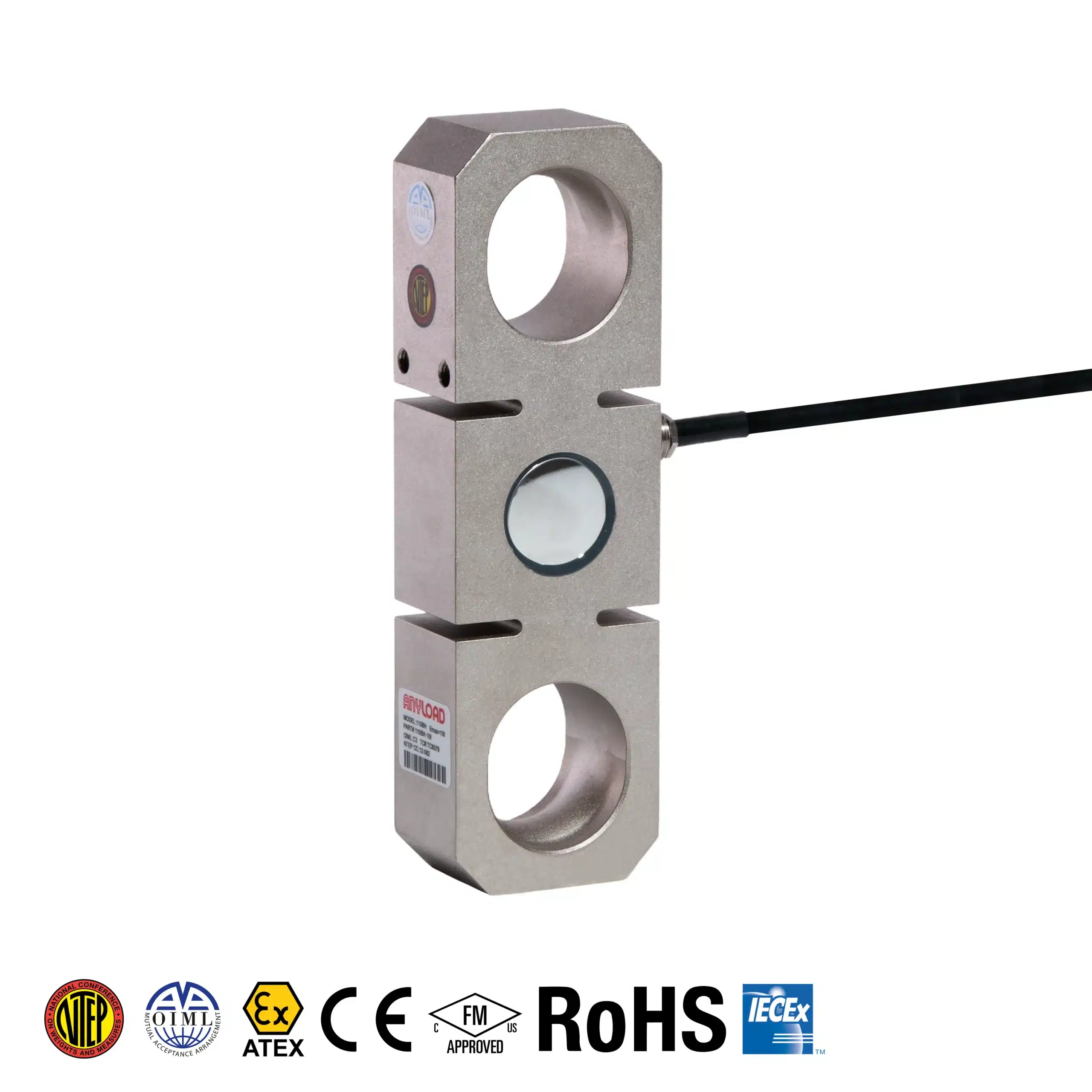

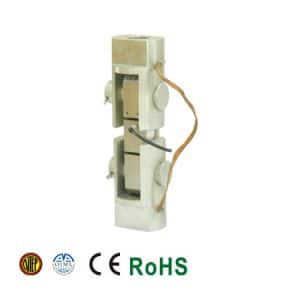

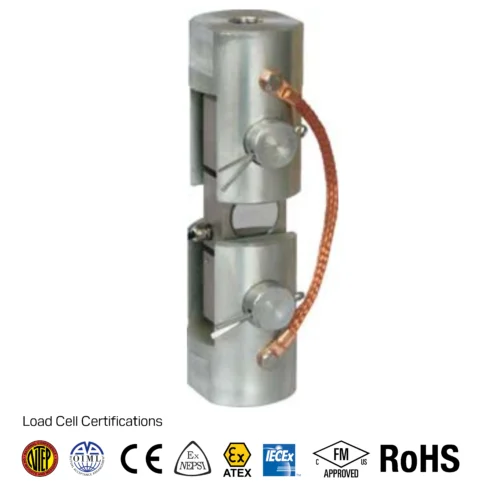

110BH Tension Link Load Cell

Description:

Leading the industry in tension link engineering, Anyload’s 110BH offers unparalleled accuracy and toughness all in a highly compact construction. The NTEP and OIML-certified design with a patented internal structure that achieves natural linearity with superior temperature compensation and resistance to vibration. The IP67 alloy steel construction with a breaking overload of 400% provides an excellent safety factor and years of problem-free service. Commonly used for crane scales and OEM applications, the 110BH is often found in the fishing, agricultural, construction, and manufacturing sectors.

Features:

  • Material: Alloy steel
  • Rated Capacities: 1t, 2t, 5t, 10t, 20t, 30t, 50t, 75t, 100t, 120t
  • Full Scale Output: 3mV/V ± 10%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 400% of full scale
  • IP Rating: IP67
  • NTEP 1:3000 Class III, Single Cell certified from 1t-2t
  • NTEP 1:5000 Class III, Multiple Cell certified from 1t-2t
  • NTEP 1:3000, up to 1:6000 Class III, Multiple Cell and Single Cell certified from 5t-50t
  • OIML MAA C3, Y=15 000 certified from 1t-10t
  • OIML MAA C3, up to C6, Y=13 5000 certified from 10t-50t
  • CE and RoHS certified
Rated Capacity 1t, 2t, 5t, 10t, 20t, 30t, 50t, 75t, 100t, 120t
Full Scale Output 3mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017% FS
Repeatability < ± 0.017% FS
Hysteresis Error < ± 0.017% FS
Creep in 30 minutes < ± 0.023% FS
Input Resistance 400Ω ±20Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range 10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Nominal Temperature Range (°C) 10°C to 40°C
Nominal Temperature Range (°F) 14°F to 104°F
Safe Overload 150% of full scale
Breaking Overload 400% of full scale
Seal Type Environmentally sealed
IP Rating IP67

pdf- Download data sheet

pdf- 110BH,(1-5)t

pdf- 110BH,(10-50)t

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformace

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity
