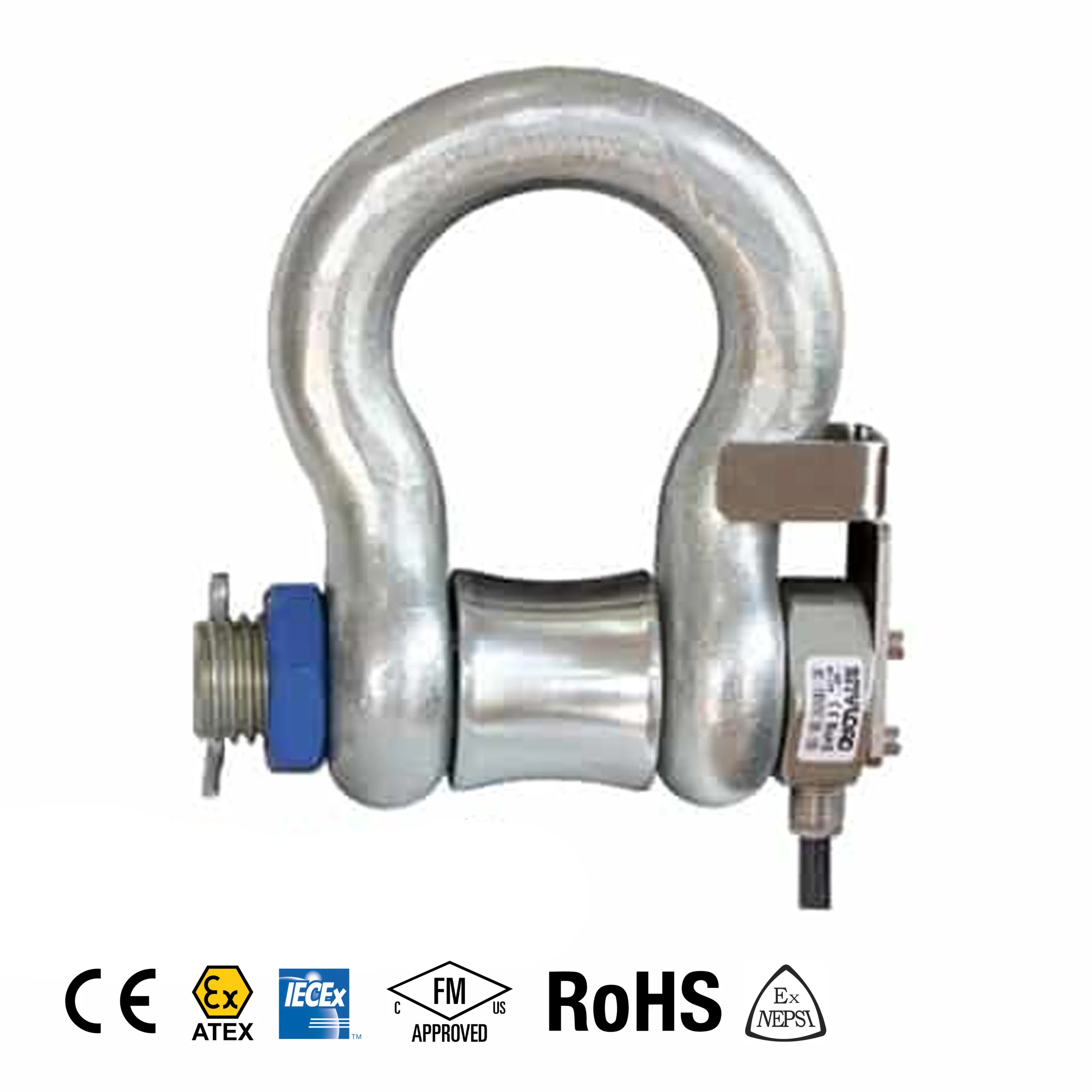

535AHM2 Shackle Load Cell

The 535AHM2 delivers a full scale output of 2.5 mV/V ±5% with non-linearity and repeatability both rated at less than ±1% and ±0.5% respectively, making it well-suited for precision tension monitoring in safety-critical and process-critical lifting environments. Its standard 350Ω bridge configuration is compatible with most digital weight indicators and telemetry systems. Each capacity variant ships with an anti-rotation bracket and TBX shackle assembly, along with a rated cable — 5.1×6m for capacities up to 20t and 7.6×10m for capacities 30t and above.

With certifications including CE, ATEX, FM Approved, IECEx, and RoHS compliance, the 535AHM2 is cleared for use in hazardous and explosive environments, making it appropriate for offshore lifting, oil and gas facilities, crane and hoist systems, marine mooring, and heavy industrial rigging operations. ANYLOAD offers the 535AHM2 in seven capacity ratings with corresponding part numbers, and our team can assist with system integration, indicator selection, and application-specific requirements.
