| Rated Capacity | 5t, 10t, 15t, 20t, 30t, 50t, 100t |
| Full Scale Output | 2.5mV/V ± 0.25% |
| Non-linearity | < 1% of full scale |
| Repeatability | < 0.5% |
| Hysteresis Error | < 1% of full scale |
| Bridge Impedance | 350Ω |
| Test load | 200% of the rated capacity |
| Total Error | 1% of full scale |
| Seal Type/IP Rating | Environmentally Sealed/IP67 |

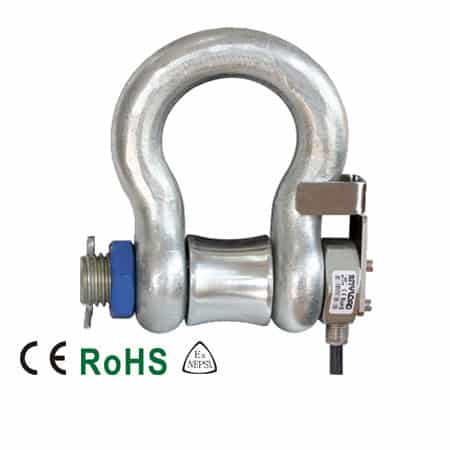

535ASM2 Shackle Load Cell
Descriptions:
Committed to load cell innovation, Anyload’s shackle load cells can be integrated directly and easily into existing workflows with little disruption, providing a time-saving and simple weighing solution. The stainless steel IP67 waterproof construction provides heavy-duty reliability for rugged and harsh environments.
Features:
- Material: Load cell: Stainless steel ( 2Cr13 or 17-4PH stainless steel ); Shackle: Alloy steel.
- Capacities: 5t, 10t, 15t, 20t, 30t, 50t, 100t
- CE, RoHS, and Ex certified load cells
- Load pin and shackle integration
- Bobbin design provides high accuracy and repeatability
- High tensile shackle meets ISO2415-2004 requirements
- Bridge Impedance: 350 Ohms
- Full Scale Output: 2.5mV/V ± 0.25%
- Non-linearity: ≤ 1% of full scale
- Repeatability: ≤ 0.5% of full scale
- Hysteresis Error: ≤ 1% of full scale
- Test Load: 2 times of the rated capacity
- Total Error: 1% of full scale
- Seal Type/IP Rating: Environmentally Sealed/IP67
