102FS Double Ended Beam Load Cell, Stainless Steel, Welded Seal, IP68

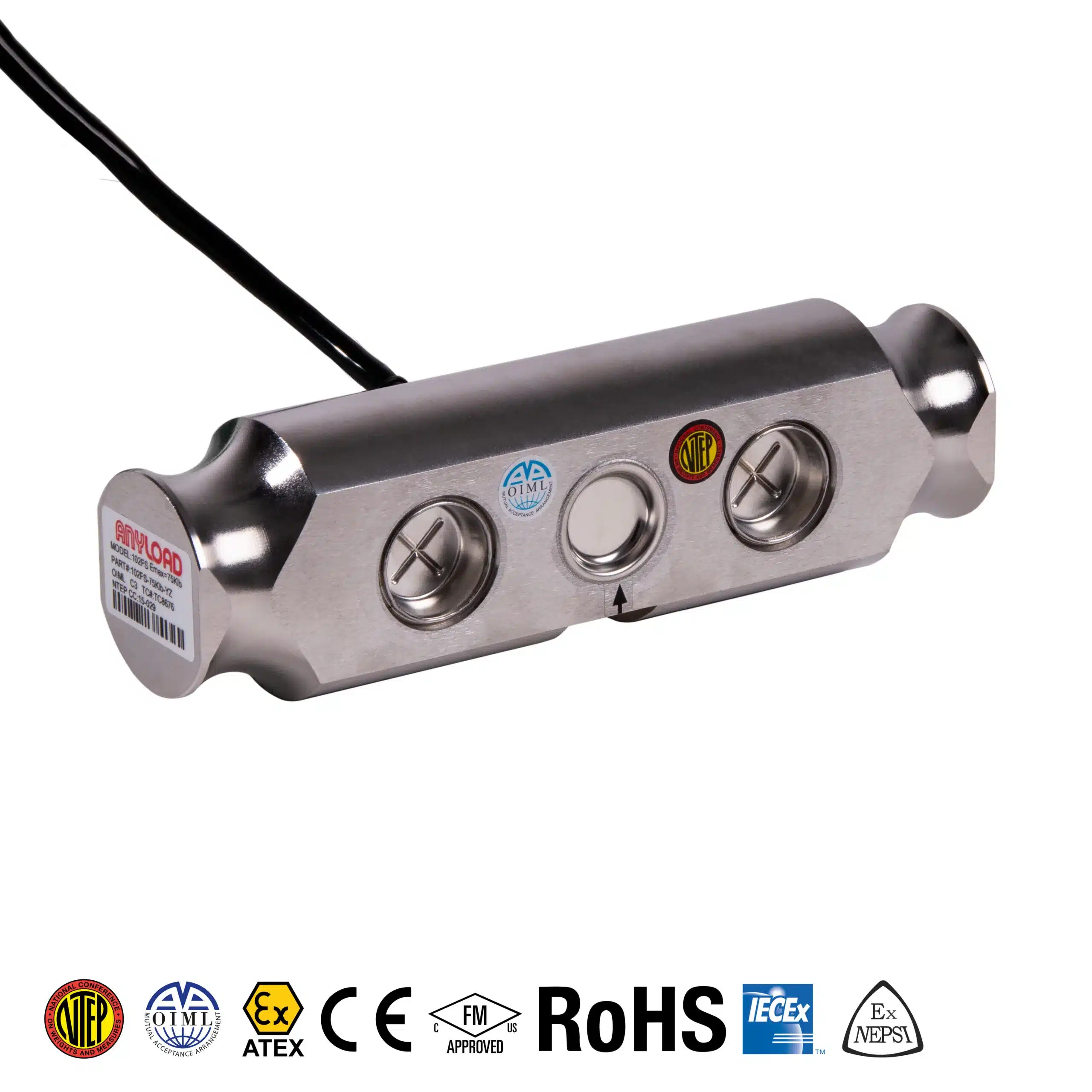

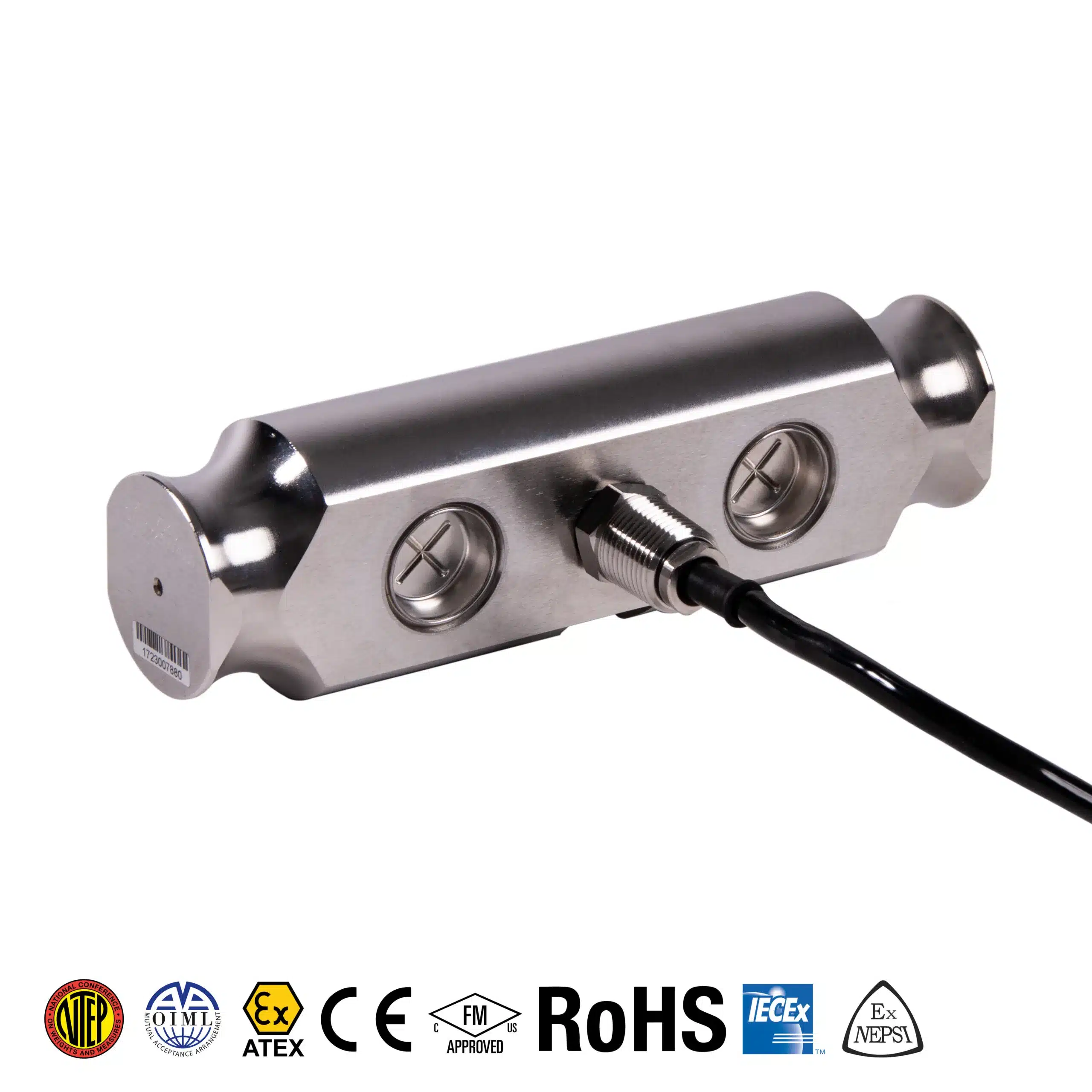

102FS Double Ended Beam Load Cell

Description:

The 102FS is an OIML and NTEP-certified welded sealed IP68-class water-resistant stainless steel load cell. It will perform reliably under harsh conditions and is suited for applications including truck scales, and other heavy-duty weighing needs. The 102FS is interchangeable with Coti Global CG-DB50000S, Cardinal DB50000S, Rice Lake RLDB5000S, and more (see: INTERCHANGEABLE tab).

Features:

  • Material: Stainless steel
  • Rated Capacities: 50Klb, 75Klb
  • Full Scale Output: 2mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • NTEP 1:10 000 Class IIIL, Multiple Cell certified from 50Klb-75Klb
  • OIML MAA C4.5, Y=18 000 certified from 11t-55t
  • CE, RoHS and Ex certified
Clear
Product Enquiry
Rated Capacities 50Klb, 75Klb
Full Scale Output 2mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.030%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.023%
Input Resistance 700Ω ± 10Ω
Output Resistance 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

pdf- Download data sheet

pdf- 102FS-(50-75)klb

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity

Manufacturer Model
Cardinal DB50000S
Cardinal DB75000S
Coti Global CG-DB50000S
Rice Lake RLDB50000S
Rice Lake RLDB75000S
