| Rated Capacities | 10kg, 20kg, 30kg, 40kg, 50kg, 80kg |
| Reference Max. Platform Size | 400mm x 400mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 385Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |

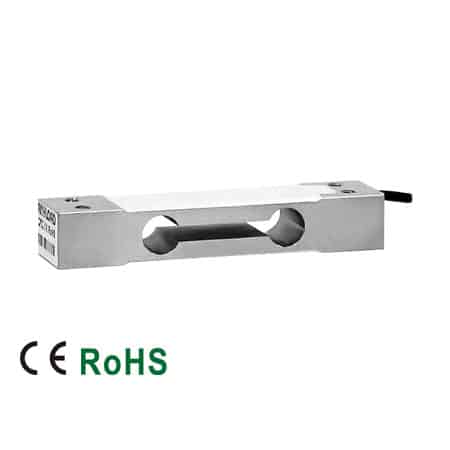

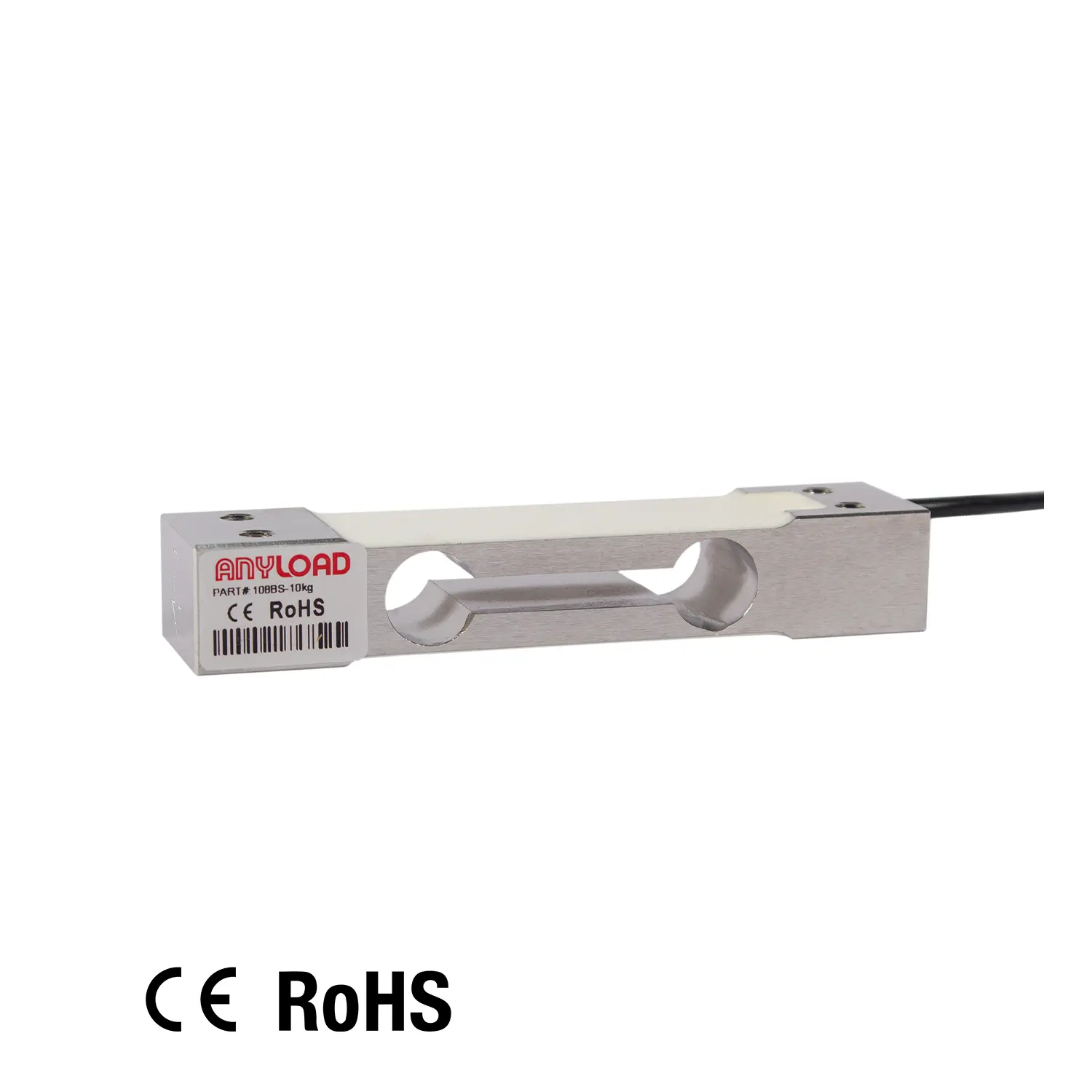

108BS Single Point Load Cell
Description:
The 108BS is a robust stainless steel single point with IP66 water resistance and corrosion resistance. This high accuracy low capacity compression weighing solution with a superior 150% safe overload allowance and excellent off-center load compensation gives this load cell excellent performance. Common applications include platform scales, retail scales, logistics scales, check weighing, and more. This model is interchangeable with the Mettler-Toledo SSP1022
Features:
- Material: Stainless steel
- Rated Capacities: 10kg, 20kg, 30kg, 40kg, 50kg, 80kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS certified
| Manufacturer | Model |
| Mettler-Toledo | SSP1022 |
