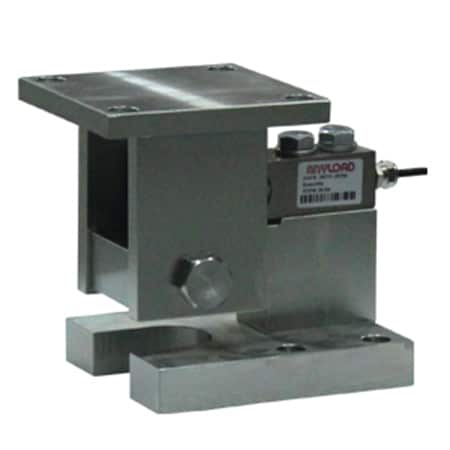

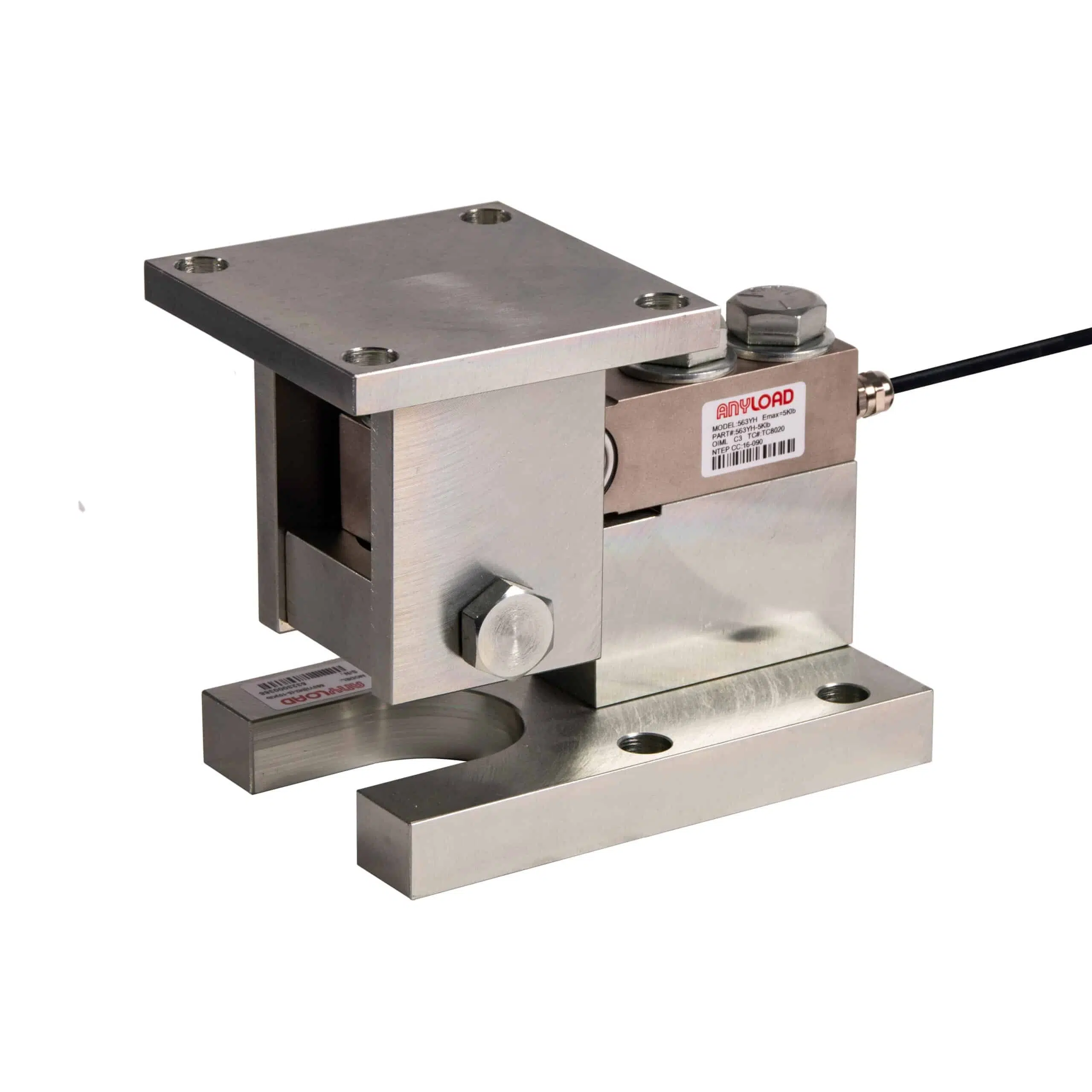

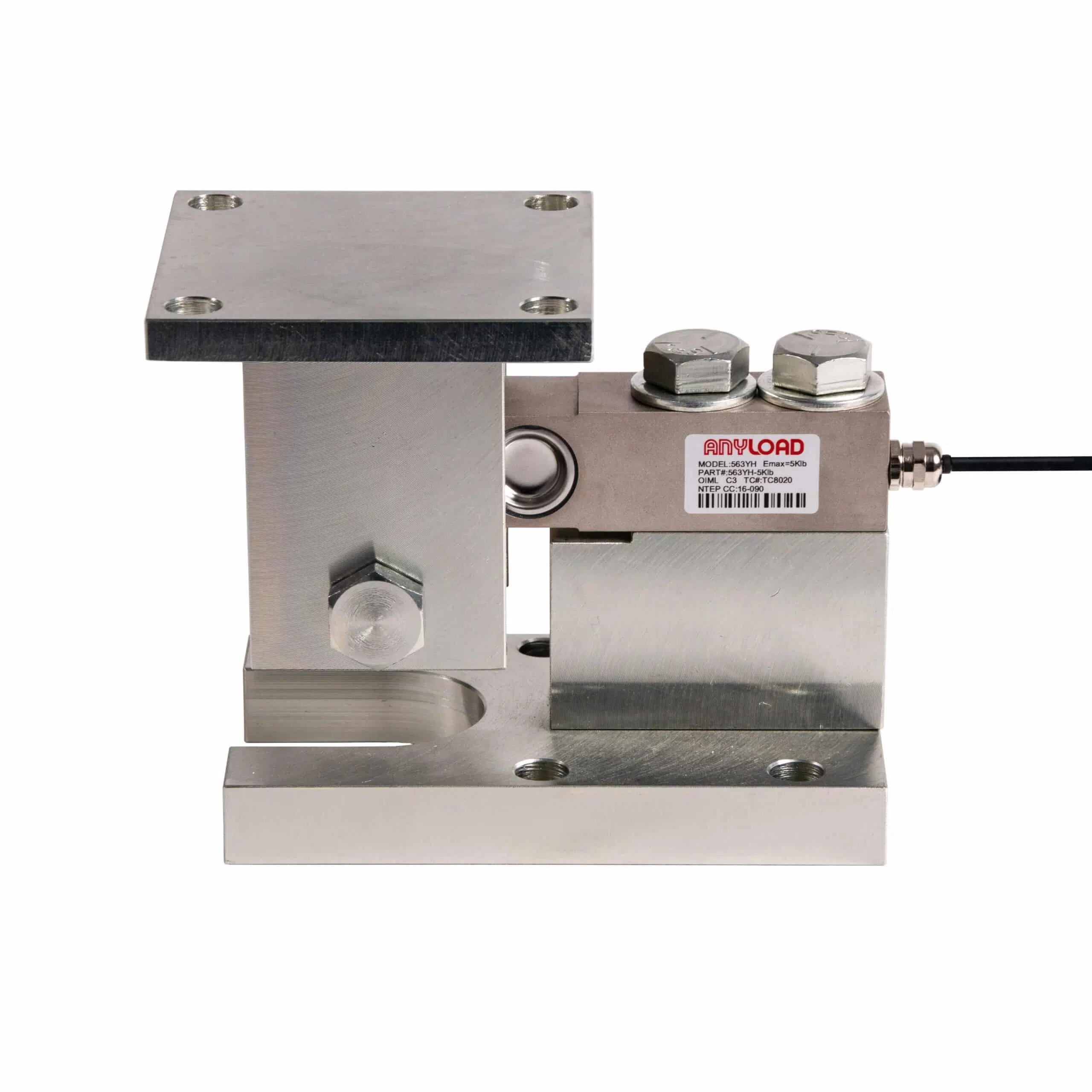

563YHM2 Compression Weigh Module

  • Assembles: 563YH single ended beam load cell
  • Material: Alloy steel
  • Capacities: 100lb-10Klb/100kg-5t
  • NTEP certified load cells from 1Klb-10Klb
  • OIML certified load cells from 500kg-2.5t
  • CE , RoHS and Ex certified load cells
  • Center pivoted and self-checking with 50% rated load anti-lifting protection
  • Tension load applied to the load cell is converted to compression load application for the weigh module
  • Load cell not included

pdf- Download data sheet

Manufacturer Model
Rice Lake RL1800*

* HMin/Max of RL1800 is 5.25/5.56 inch for 100lb to SE5Klb, 6.12/6.62 inch for 5Klb to 10Klb

pdf- Download Drawings-563YHM2(0.1-SE5)Klb

pdf- Download Drawings-563YHM2(5-10)Klb
