108BA Single Point Load Cell, Aluminum, Environmentally Sealed, IP66

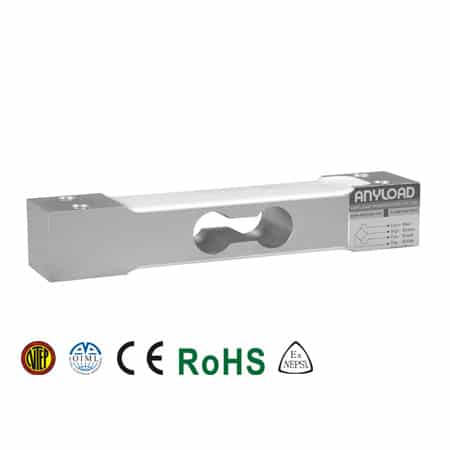

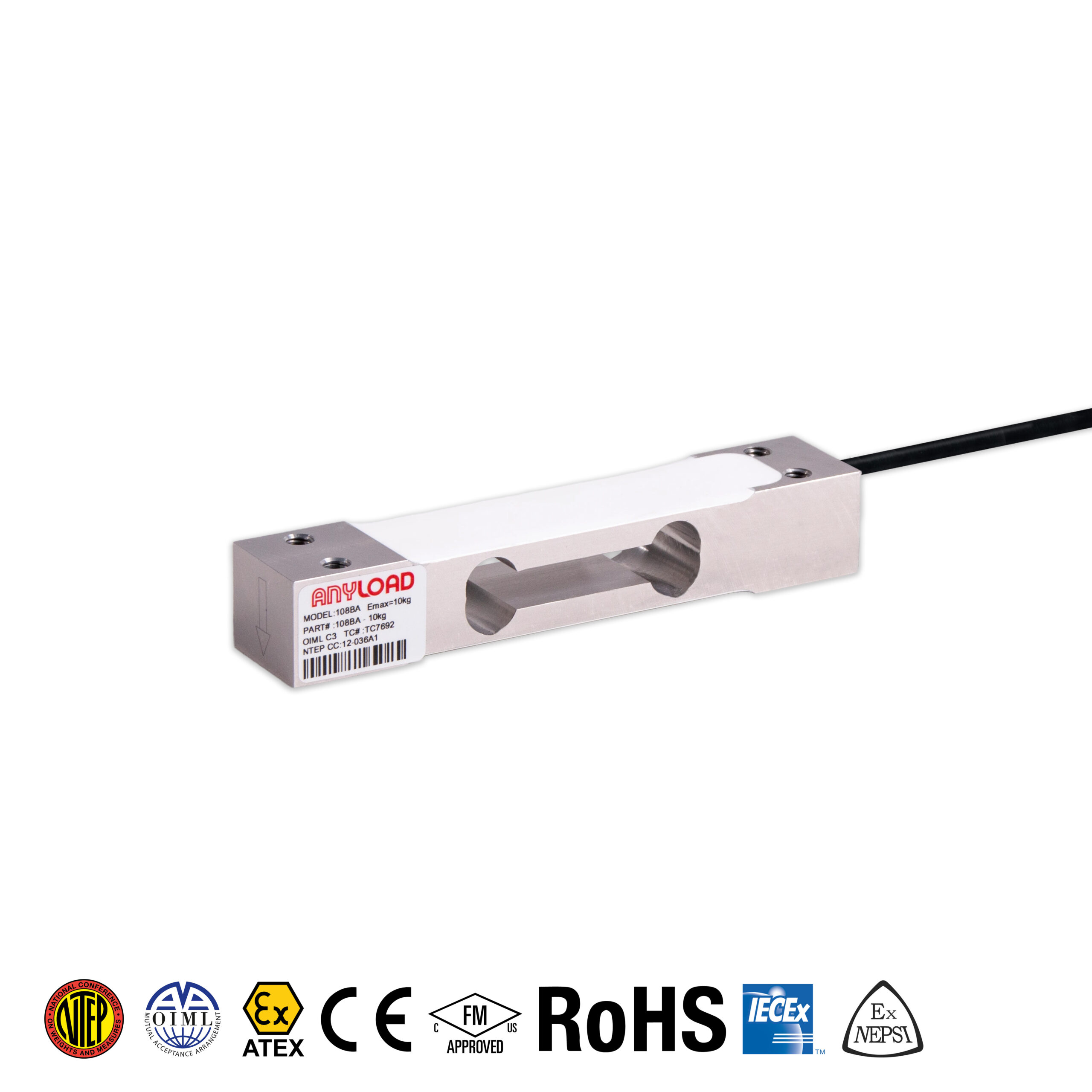

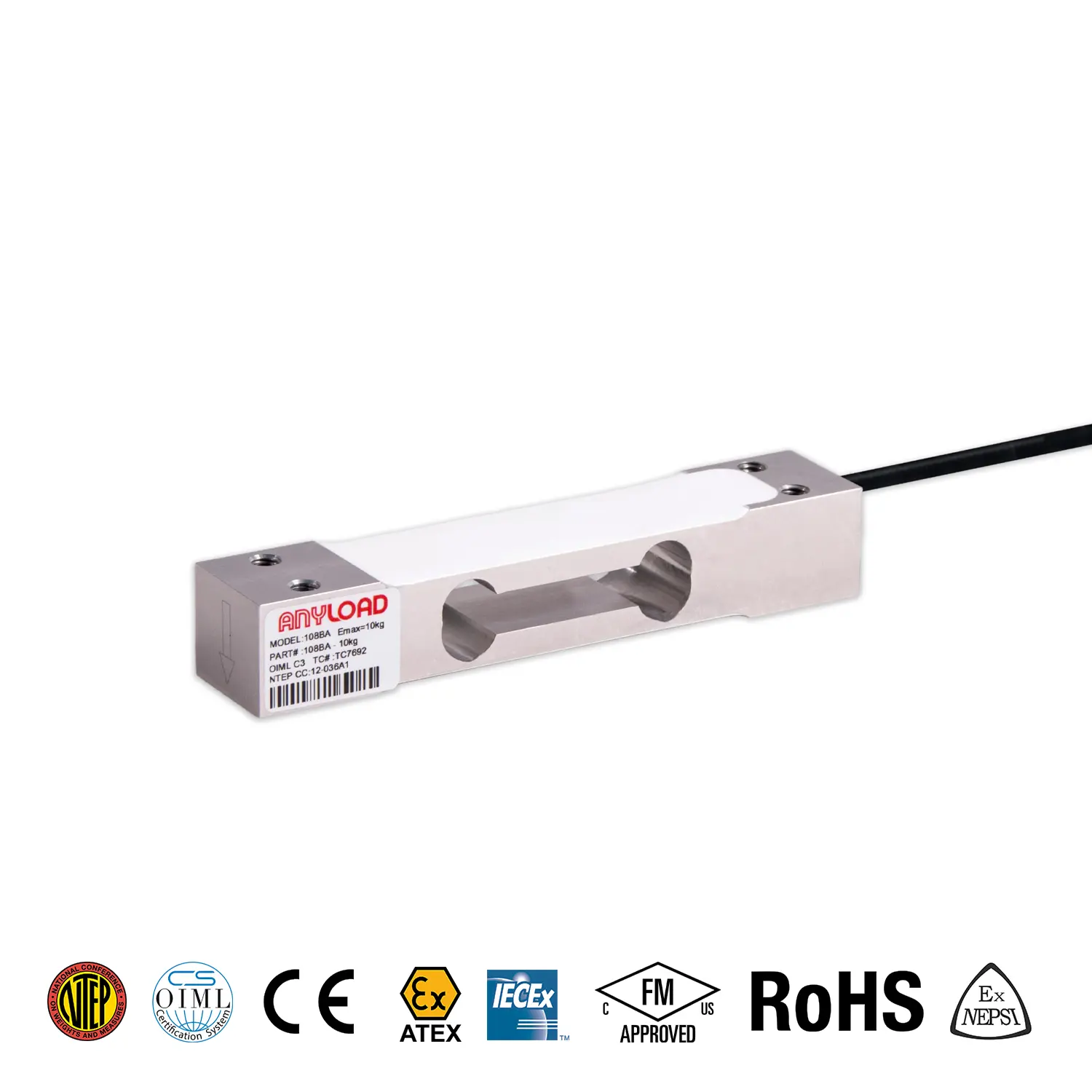

108BA Single Point Load Cell

Description:

The 108BA is a versatile and economic weighing solution for lower-capacity applications. It is compatible with a variety of models from other manufacturers (see: INTERCHANGEABLE tab), but has superior safe overload tolerance and selection of rated capacities. OIML and NTEP certified, with IP66 water resistance, this model is reliable and easy to install. This cost-effective load cell is popular in OEM applications, retail scales, other small packaging and process weighing systems, and platform scales.

Features:

  • Material: Aluminum
  • Rated Capacities: 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • OIML C3, Y=4 300 certified from 10kg-150kg
  • CE, RoHS, NTEP, and Ex certified
Clear
Product Enquiry
SKU: N/A Categories: , Tag:
Rated Capacities 3kg, 6kg, 7kg, 10kg, 15kg, 20kg, 30kg, 35kg, 40kg, 45kg, 50kg, 60kg, 75kg, 100kg, 150kg
Reference Max. Platform Size 400mm x 400mm
Full Scale Output 2mV/V ± 10%
Zero Balance ±0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 415Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Service Temperature Range -18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet

pdf- 108BA-(3-40)kg

pdf- 108BA-(50-150)kg

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity

Manufacturer Model
Mettler-Toledo MT1022
Flintec PC22*
HBM PW6C**
HBM PW6K
Rice Lake RL1521A
Vishay Celtron LPS ME 6-35kg
Vishay Tedea-Huntleigh 1022

* PC22 : 6-wire cable, the shielding wire connected to the sensor body, width of 20kg and 30kg is 30mm

** Full scale output of PW6C: 2.2±0.2% mV/V
