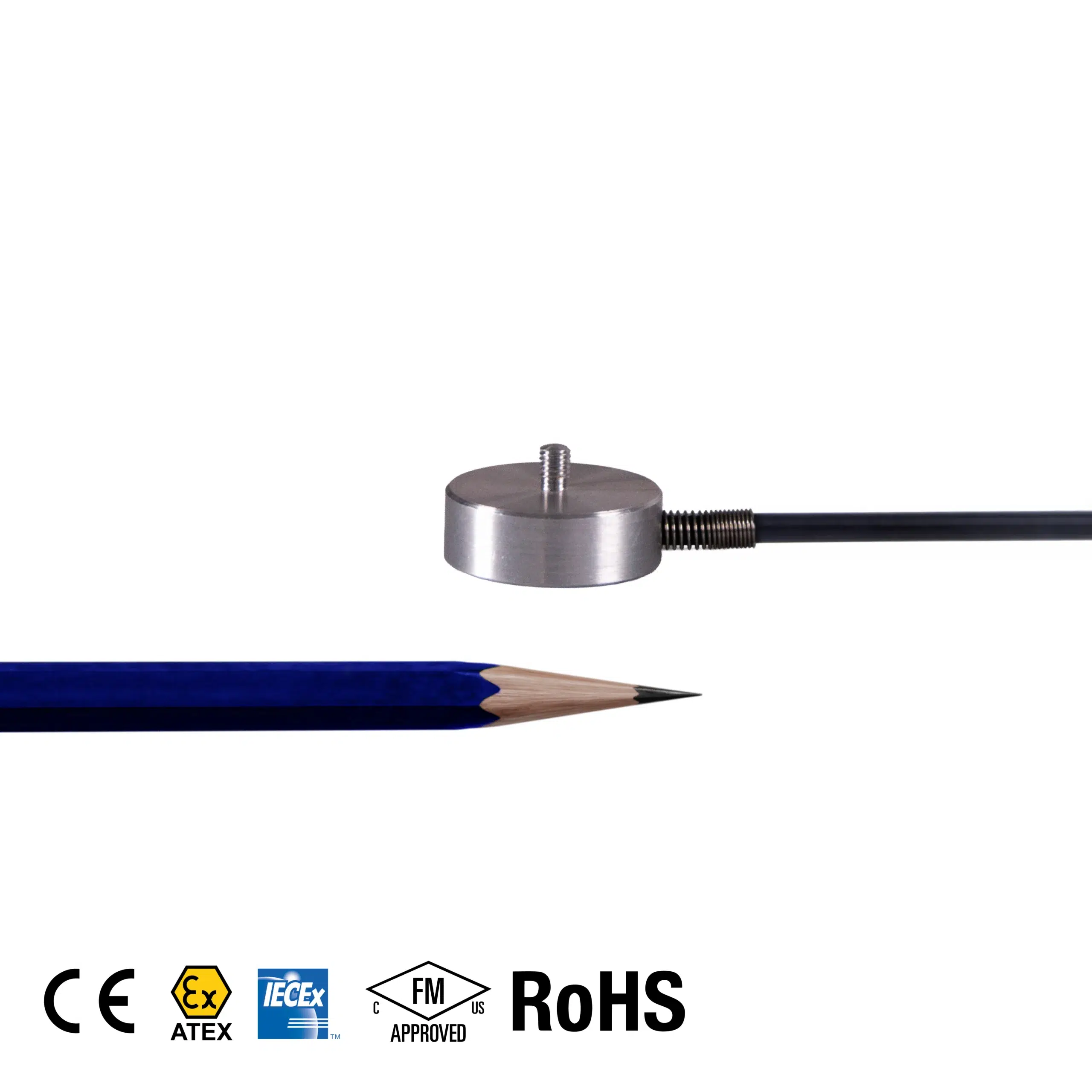

247AA Botón de carga
The 247AA is a reliable and cost-saving load button for compression. This load button serves as a versatile solution, especially where space and weight are limited. Load buttons are especially popular in force measurement and weighing in the medical, automotive, and automation industries.
Características
- Material: Aluminio, anodizado transparente
- Clasificación IP: IP66
- CE, RoHS certified
- ATEX, FM, IECEx approved versions available
Especificaciones
| Capacidades nominales | 1kg – 20kg |
|---|---|
| Salida a fondo de escala | 1.0 mV/V ± 20% |
| Saldo cero | ± 0.03 mV/V |
| No linealidad | < ± 0.5% |
| Repetibilidad | < ± 0.3% |
| Error de histéresis | < ± 0.5% |
| Creep in 30 min. | < ± 0.5% |
| Resistencia de entrada | 375Ω ± 25 |
| Resistencia de salida | 350Ω ± 3 |
| Elemento Material | Aluminum, Clear Anodized |
| Excitación recomendada | 10 V (15 V máximo) |
| Resistencia del aislamiento | > 2 [50V DC] GΩ |
| Temperatura nominal | –10°C to 40°C / 14°F to 104°F |
| Sobrecarga segura | 150% del fondo de escala |
| Romper la sobrecarga | 300% del fondo de escala |
| Tipo de junta / grado IP | Environmentally Sealed / IP66 |
