Sistema de pesaje de aeronaves de perfil bajo

Measurement of Airplane Weight and Balance

The subject of this study is a leading aerospace maintenance and flight operations facility. They manage a diverse fleet of aircrafts and are responsible for critical safety inspections, including periodic weight and balance verification to ensure flight stability and structural integrity.

Desafío

  1. Operational Bottlenecks: Traditional weighing methods created significant inefficiencies in the facility’s workflow, slowing down operations and increasing aircraft downtime.
  2. Labor-Intensive Process: The existing system required high-capacity hydraulic jacks to lift the aircraft onto load cells, making the weighing procedure time-consuming and physically demanding.
  3. Limited Portability: The weighing equipment was difficult to transport for off-site or on-ramp operations, reducing flexibility for field applications.

Solución

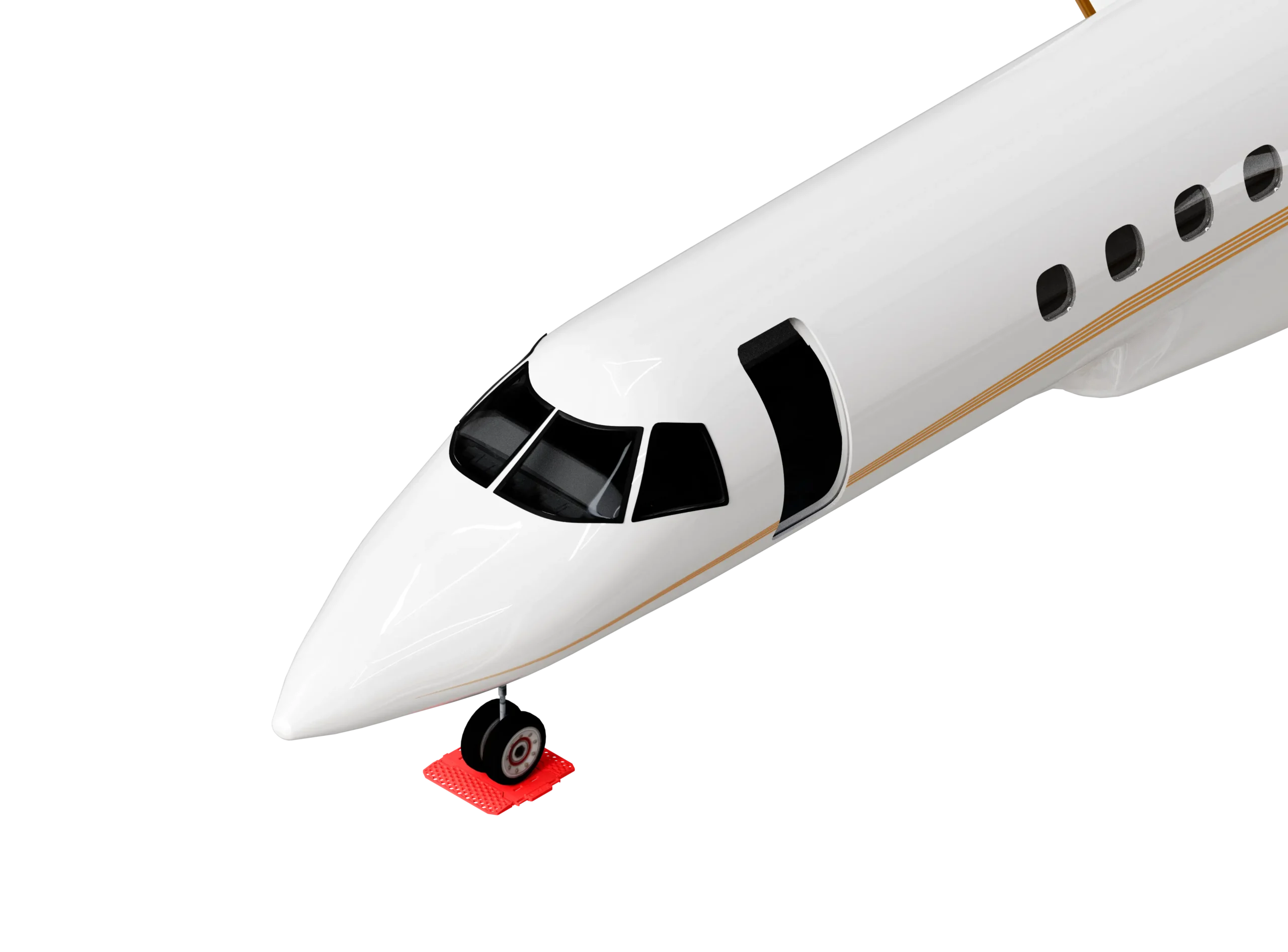

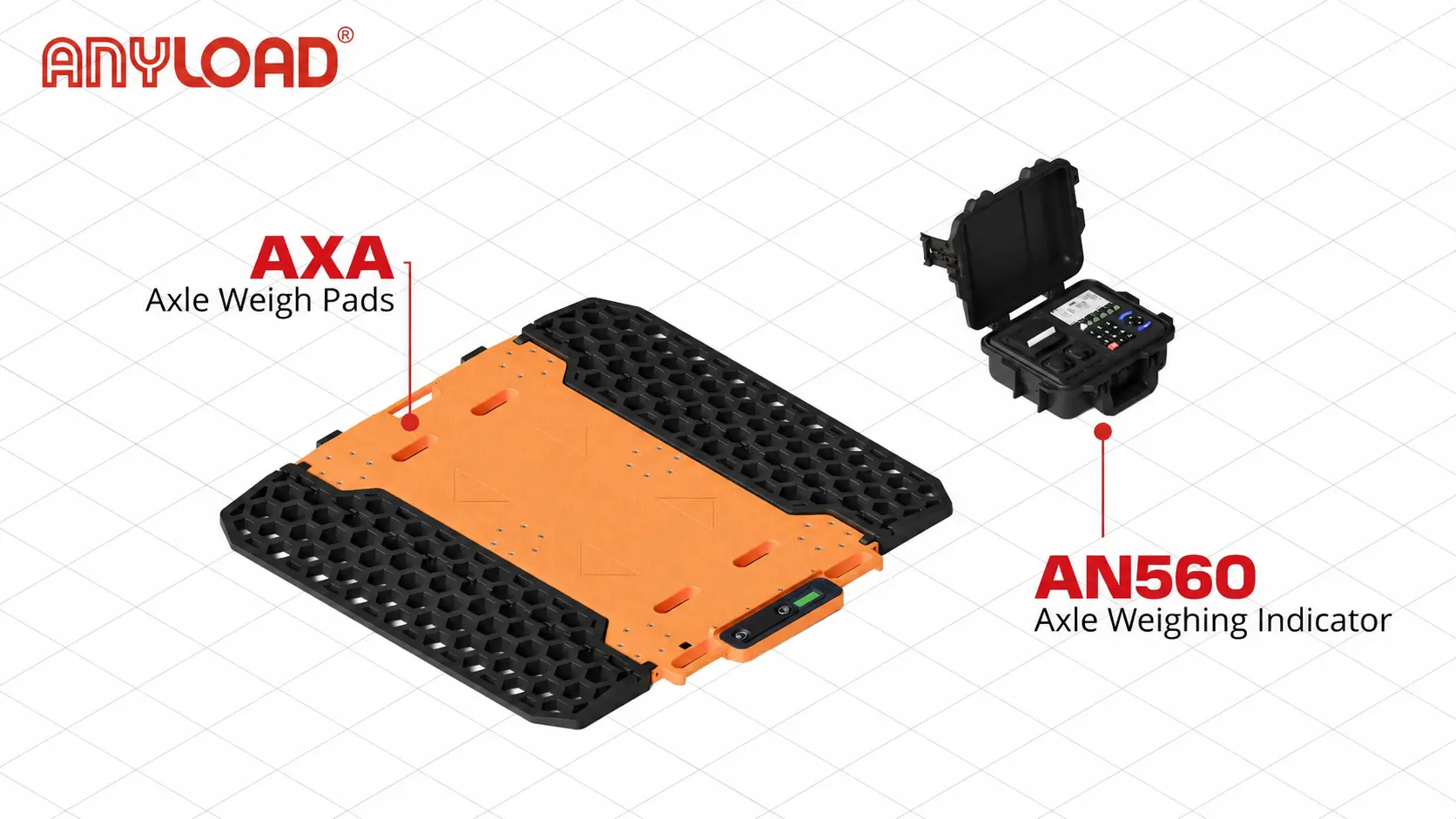

  1. Streamlined Workflow: The ANYLOAD AXA Axle Weigh Pads allowed the aircraft to be towed directly onto the weighing platforms, significantly reducing setup time and minimizing operational disruptions.
  2. Drive-On Design: With an ultra-low-profile height of only 33 mm, the AXA pads feature a drive-on design that removed the need for high-capacity hydraulic jacks, simplifying the weighing process and reducing labor demands.
  3. Portable Field Deployment: The lightweight and portable design enabled efficient transport and deployment for both hangar and on-ramp weighing operations, increasing flexibility for field applications.
Enviar consulta

Conclusión

The shift to the Almohadillas de pesaje para ejes AXA resulted in measurable improvements in operational efficiency. The weighing process time was reduced by over 50%, allowing for more frequent safety checks without disrupting flight schedules. Safety was also significantly enhanced, as the elimination of high-lift jacking and the lightweight design of the AXA pads reduced the risk of workplace accidents and potential airframe damage. In addition, the system’s portability enabled accurate weighing across a wide range of environments, including remote airfields and varying climatic conditions.

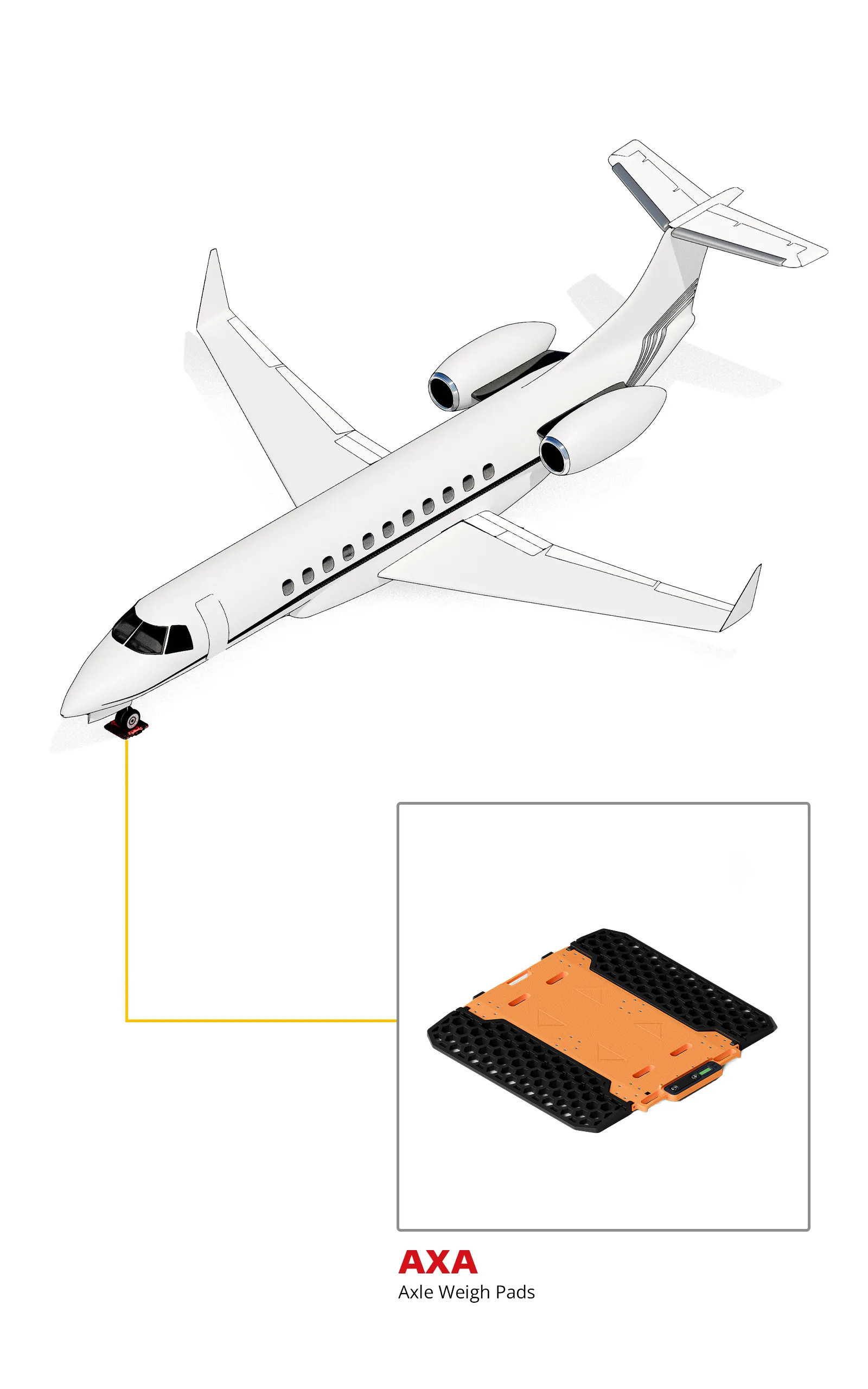

AL-Low-Profile-Aircraft

Palabras clave:
Aviation Maintenance, Center of Gravity (CG) Verification, Portable Weighing, Low-Profile Sensors

Productos destacados

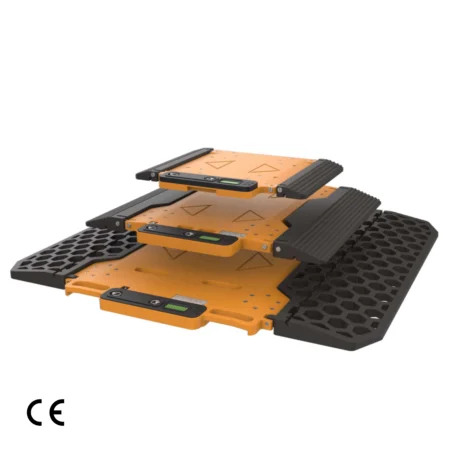

AXA
Almohadillas de pesaje de ejes
Véase la versión estándar.

  • Up to 600 hours of continuous use per charge
  • Compact and portable-ideal for mobile weighing applications
  • Replaceable & rechargeable standard 18650 li-ion battery with long operating life
  • IP68-rated aluminum body, hammer-tone powder coating
  • Wired, screen-less, and integrated battery options available upon request

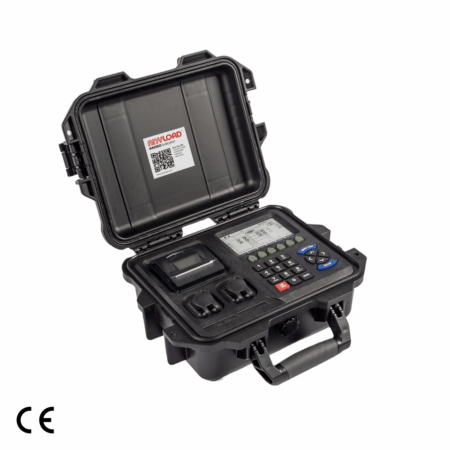

AN560
Indicador de pesaje por ejes
Véase la versión estándar.

  • Batería recargable de larga duración (~600 horas de funcionamiento continuo por carga)
  • Pantalla E-ink de 4,2″ de alto contraste con luz LED frontal para una excelente visibilidad en todas las condiciones de iluminación.
  • Admite la conexión inalámbrica de hasta 8 almohadillas de ejes o básculas simultáneamente
  • Teclado de silicona resistente para un uso prolongado sobre el terreno y respuesta táctil
  • Puerto USB-A para copia de seguridad de datos en unidades flash USB
  • Puerto USB-C para carga y comunicación COM virtual
  • Impresora de tickets integrada con formato configurable
  • Carcasa con clasificación IP-67 para condiciones duras
  • Diseño compacto y portátil (sólo 6Ib / 2,7kg)

Explorar casos prácticos

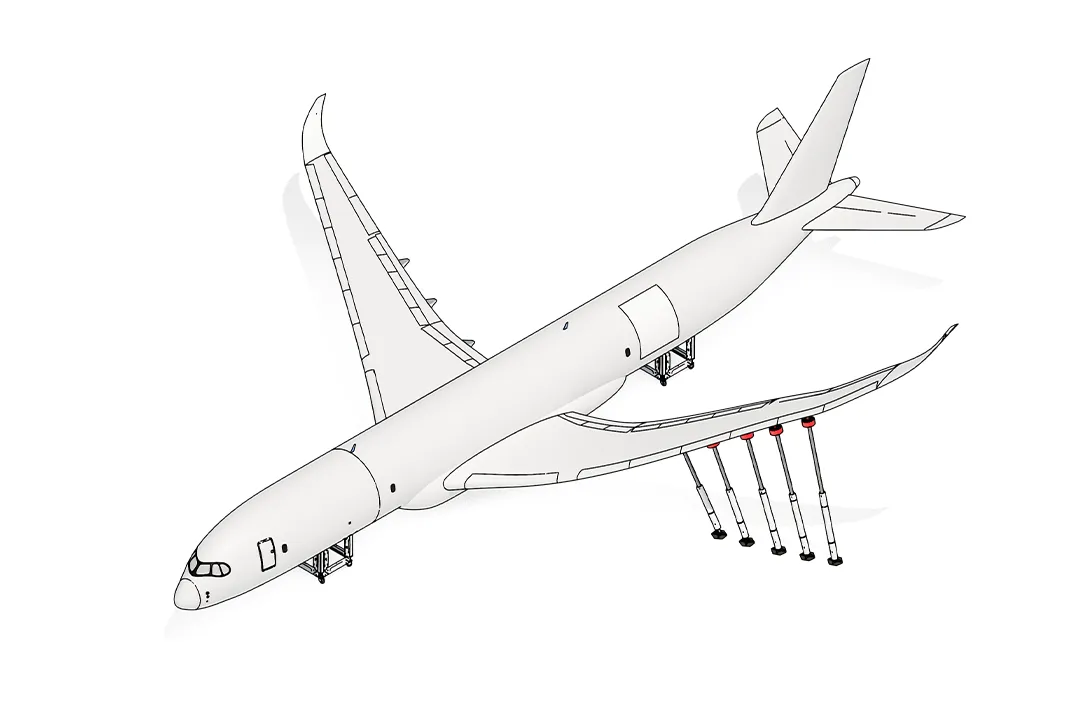

Aerospace-Grade Load Cells Wing Fatigue Testing

Aircraft wings serve as major load-bearing structures. Their fatigue life, structural integrity, and safety margin directly determine the long‑term safety and service life of the aircraft. During wing fatigue testing and certification, accurate force measurement is essential.

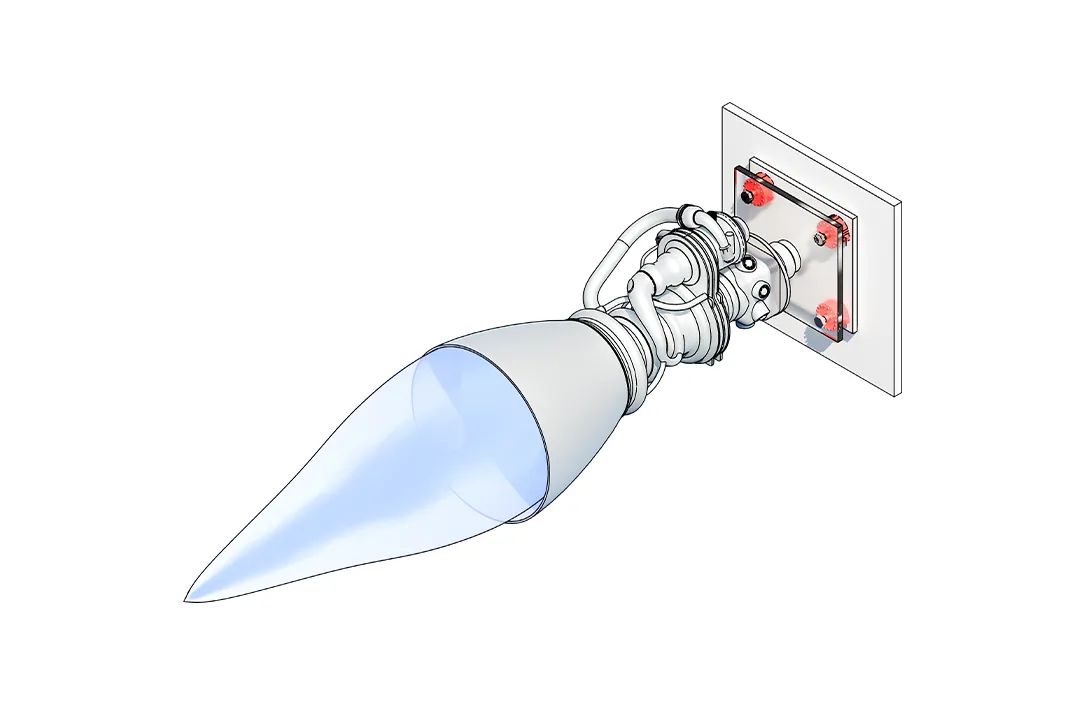

Rocket Engine Thrust Medición de la fuerza
