Pesaje de tanques de alimentación a granel

Células de carga OEM para proveedores agrícolas

Las células de carga ANYLOAD se utilizan para medir el peso de los sistemas de tolvas para la distribución de piensos en entornos agrícolas. Nuestras células de carga, fiables y de alta precisión, garantizan una gestión eficiente y precisa de los piensos, esencial para el cuidado óptimo del ganado y la eficiencia operativa.

Desafío

  1. Accurate Feed Inventory: Agricultural operations require continuous weight monitoring of bulk feed tanks to ensure livestock receive the correct amount of feed while maintaining accurate inventory levels.
  2. Reliable Performance in Harsh Environments: Feed tanks are exposed to moisture, dust, temperature fluctuations, and outdoor conditions that require durable weighing components capable of long-term operation.
  3. Global OEM Reliability: Agricultural equipment manufacturers need dependable weighing components that meet consistent quality standards and support large-scale global production.
  4. Cumplimiento normativo para el comercio: Bulk feed weighing systems must comply with international weighing regulations to support certified commercial applications in different markets.

Solución

  1. Continuous Feed Monitoring: ANYLOAD 563Y Series load cells provide accurate, real-time weight measurements that improve feed inventory management and ensure consistent feed distribution.
  2. Built for Agricultural Conditions: Designed with corrosion-resistant construction and reliable environmental protection, the load cells deliver dependable performance in demanding outdoor agricultural environments.
  3. OEM Production Support: ANYLOAD works closely with agricultural equipment manufacturers to provide high-volume production, consistent quality, and reliable global supply chain support.
  4. Certified Weighing Solution: The 563Y Series load cells feature OIML and NTEP certifications, simplifying legal-for-trade approvals while supporting international agricultural equipment markets.

Conclusión

By integrating ANYLOAD 563Y Series load cells into bulk feed tanks, agricultural equipment manufacturers achieve accurate inventory monitoring, efficient feed management, and reliable long-term performance. The rugged, certified weighing solution supports global OEM production while helping livestock operations reduce waste, improve productivity, and maintain consistent feeding practices.

Enviar consulta

Palabras clave:

Bulk feed tank weighing, feed tank weighing, livestock feeding, feed inventory, agricultural weighing, hopper weighing, silo weighing, load cell, compression load cell, weight monitoring, feed management, inventory monitoring, OEM agriculture, farming equipment, precision weighing, weighing system, livestock management, agriculture automation, load measurement, feed storage.

Productos destacados

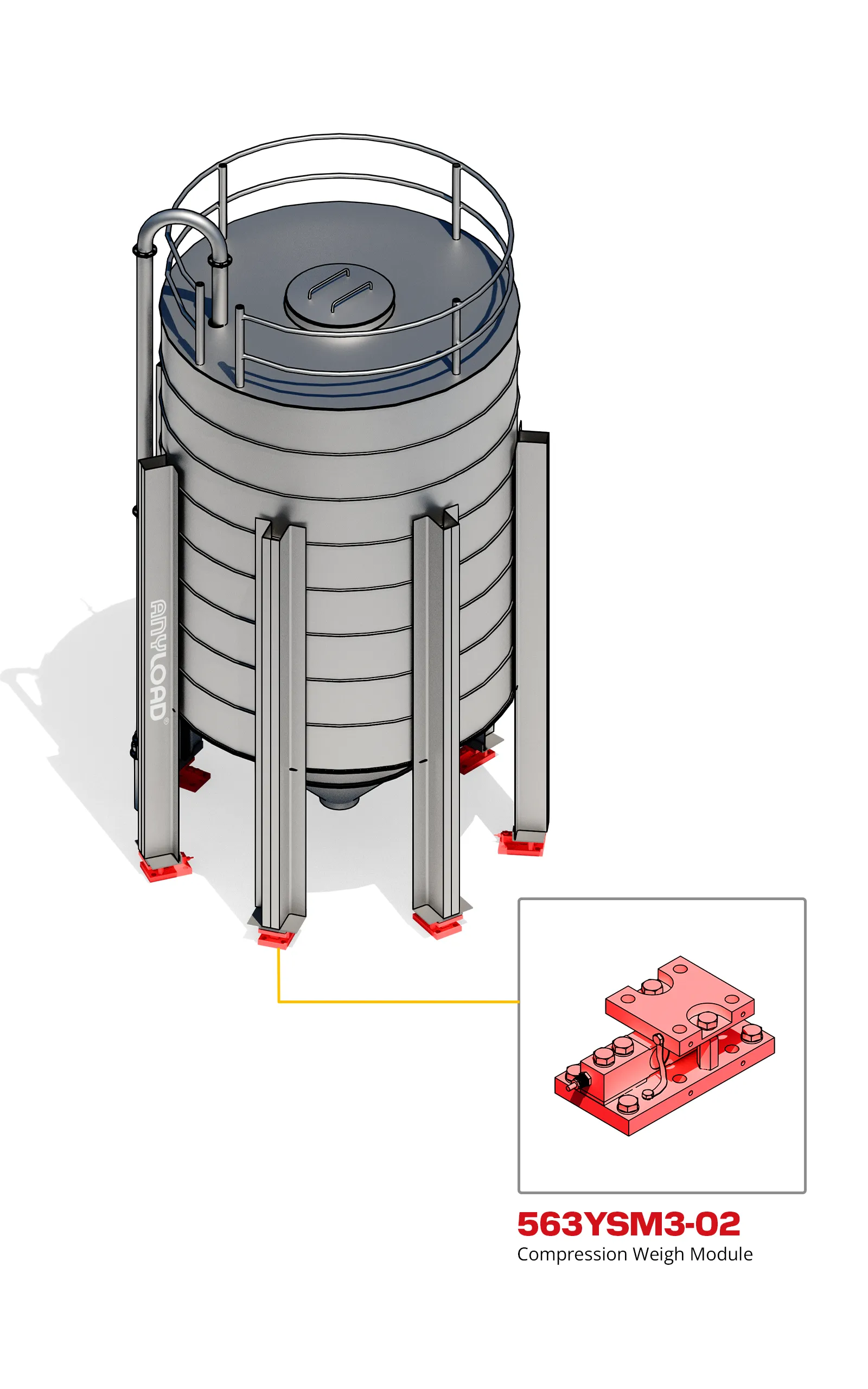

563YSM3-02
Módulo de pesaje por compresión
Véase la versión estándar.

The ANYLOAD 563YSM3-02 is a stainless steel compression weigh module designed to assemble with the ANYLOAD 563YS single ended beam load cell, supporting capacities from 500lb to 10Klb. The module features a rocker pin loading design that accommodates thermal expansion and structural movement, ensuring accurate and repeatable weight measurement in fixed vessel and platform weighing applications. Anti-lifting and overload protection, along with integrated lateral stops, provide structural safeguards that protect the load cell from side forces and uplift during dynamic loading conditions.

563YS30
Haz monofásico
Véase la versión estándar.

The 563YS30 is a medium to high-capacity single-ended beam load cell with stainless steel welded sealed IP68-class water and corrosion resistance. This is the 3mV/V iteration of the 563YS. The reliable, low-profile design is easy to install and is interchangeable with VPG, Rice Lake, HBM, and Coti Global models (see: INTERCHANGEABLE tab). Common applications include platform scales, hopper scales, tank scales, and process weighing. This cost-effective product is also frequently used in OEM applications.

Explorar casos prácticos

Un carro de fertilizantes utilizando la célula de carga de viga de un solo extremo 563YS de Anyload.

Soluciones de pesaje agrícola

Durable onboard weighing for fertilizer carts, enabling precise load monitoring and consistent material dispersion in harsh agricultural environments.

Aumentar la vida útil de la turbina

High-precision blade weighing that protects wind turbines from costly imbalance damage.

Células de carga para máquinas llenadoras de bolsas

Fast, accurate hopper weighing for bagging machines, enabling high-speed filling without sacrificing portion accuracy.
