247BS Load Button

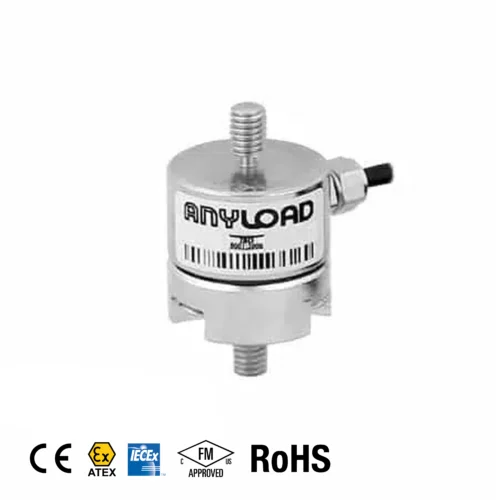

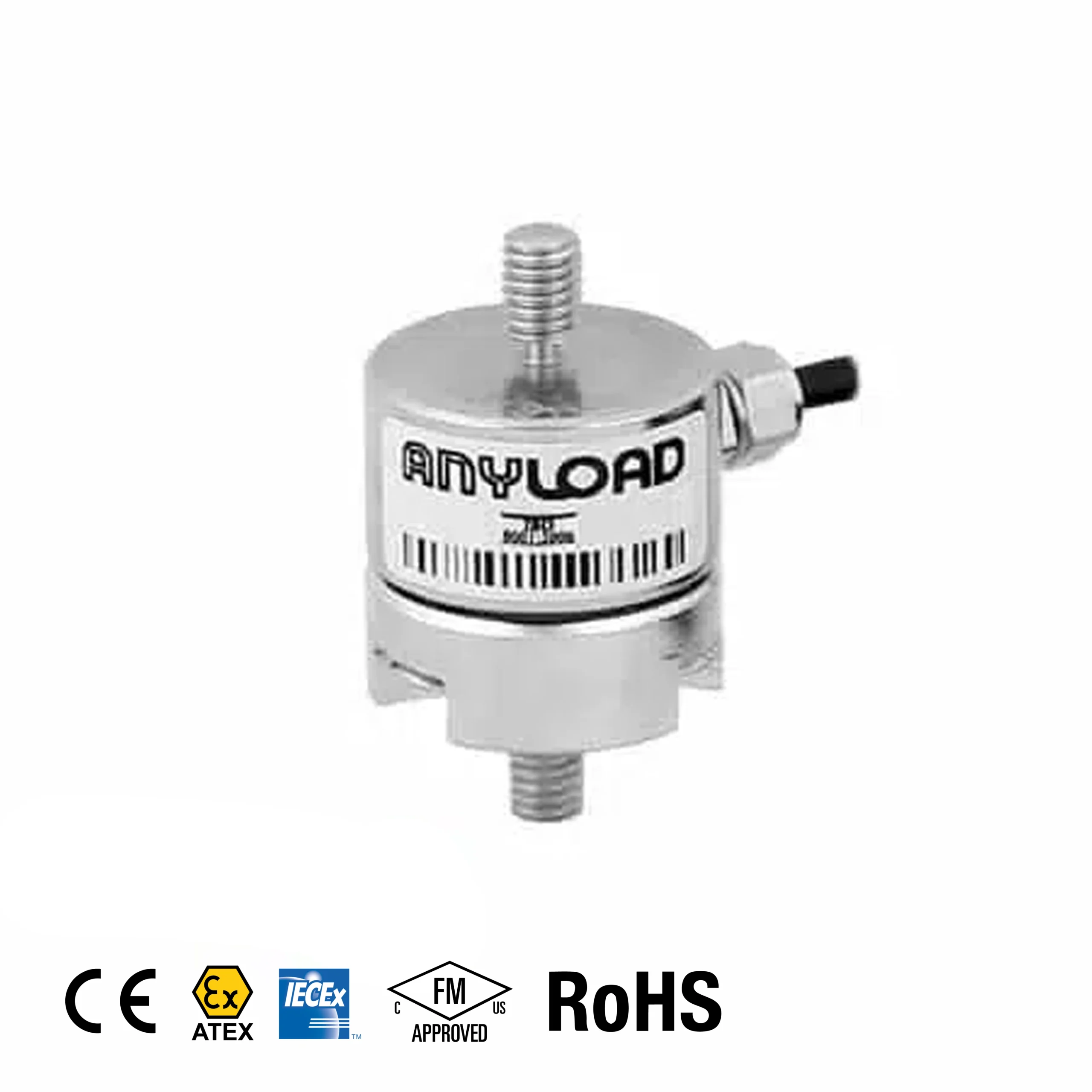

The 247BS is a high-performance 17-4PH stainless steel IP66 water and corrosion-resistant universal load button for both tension and compression measurement. This load button serves as a versatile solution, especially where space and weight are limited. Load buttons are especially popular in the medical, automotive, and automation industries.


  • Material:  Stainless steel
  • Rated Capacities: 30kg, 50kg, 100kg
  • Full Scale Output: 1.0mV/V ± 20%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • IP Rating: IP66
Rated Capacity 30kg, 50kg, 100kg
Full Scale Output 1.0mV/V ± 20%
Zero Balance ± 0.03mV/V
Non-linearity < ± 0.3%
Repeatability < ± 0.1%
Hysteresis Error < ± 0.1%
Creep in 30 minutes < ± 0.1%
Input Resistance 400Ω ± 20Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.020% of Cn/k
Temperature Effect on Zero Balance < ± 0.020% of Cn/k
Compensated Temperature Range 10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66
