Force Measurement for Bone Density Training
Button Load Cell Integration

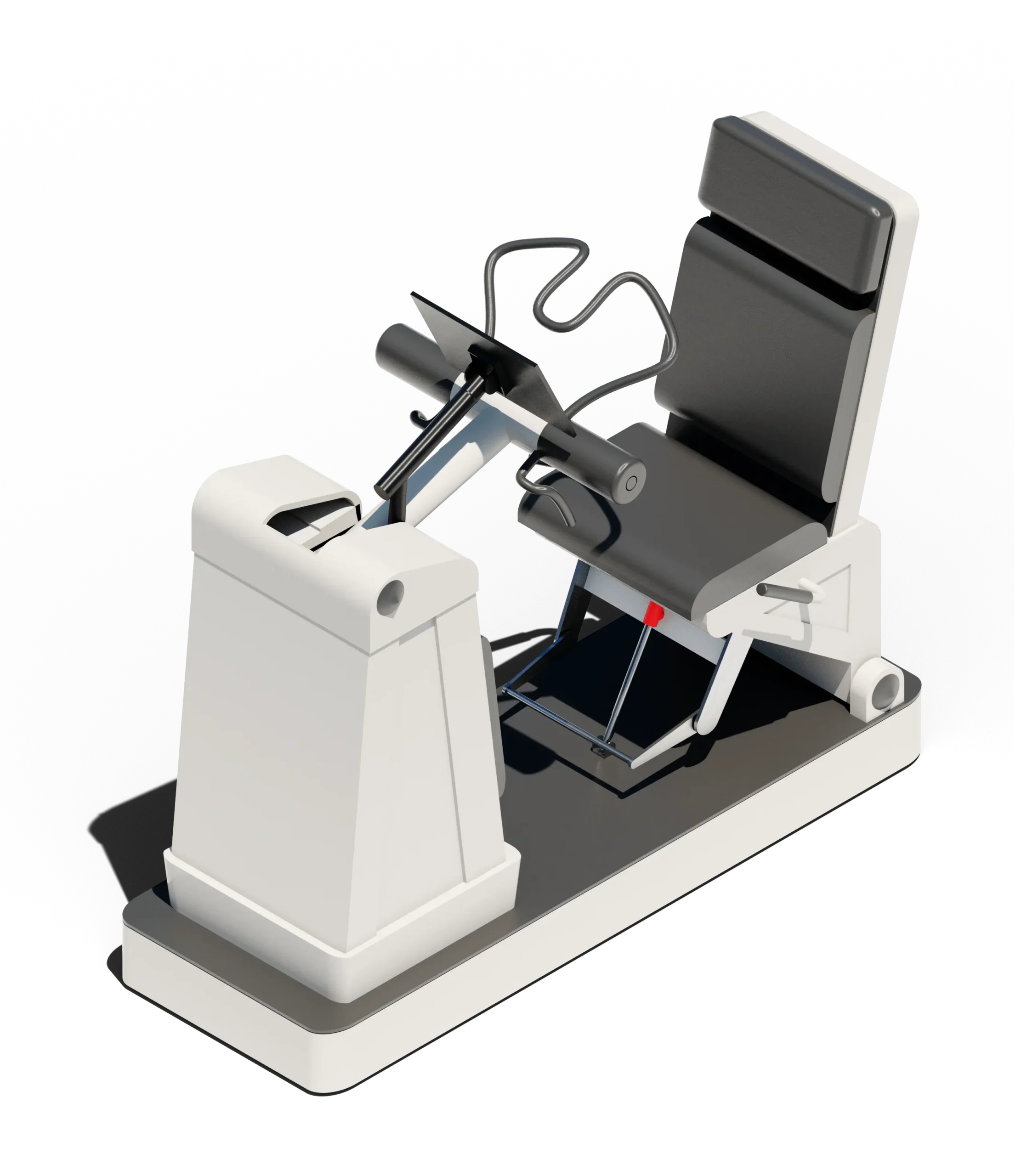

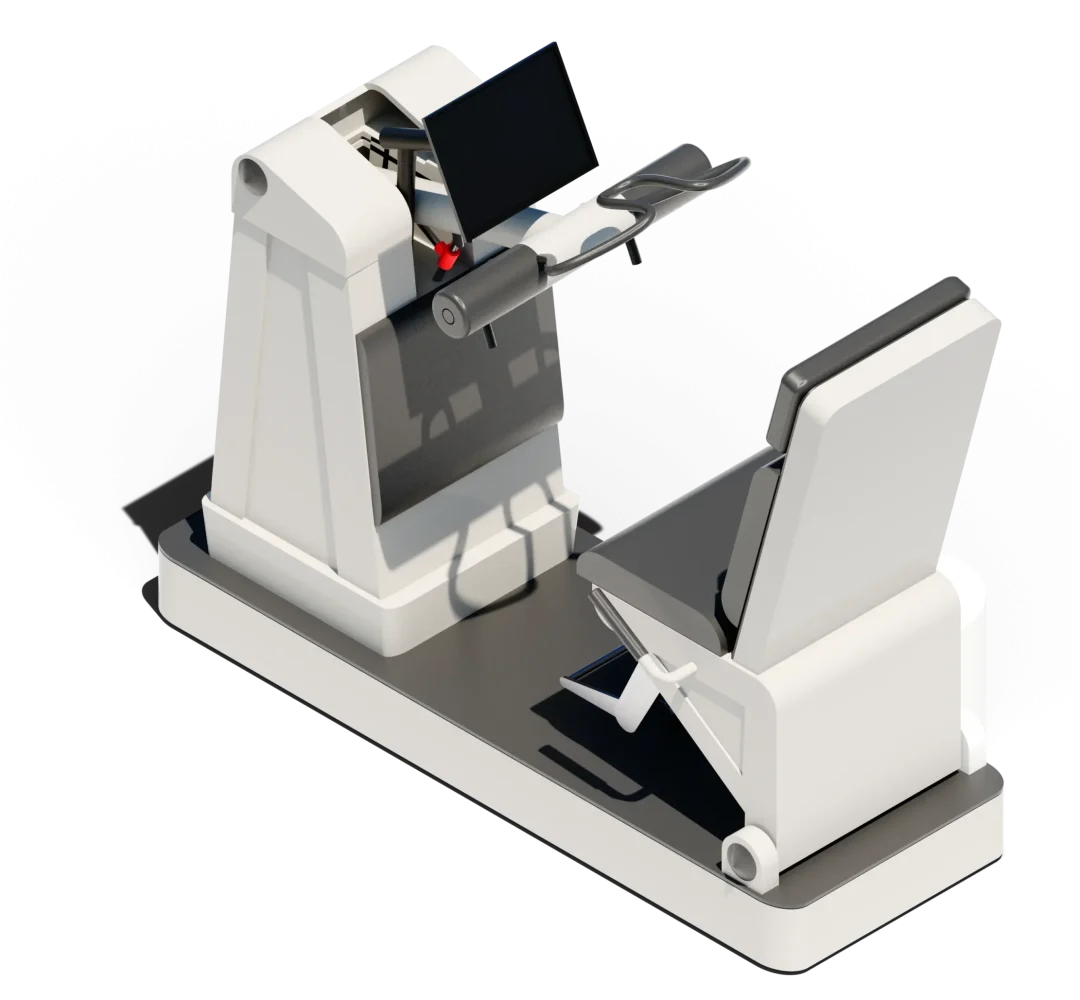

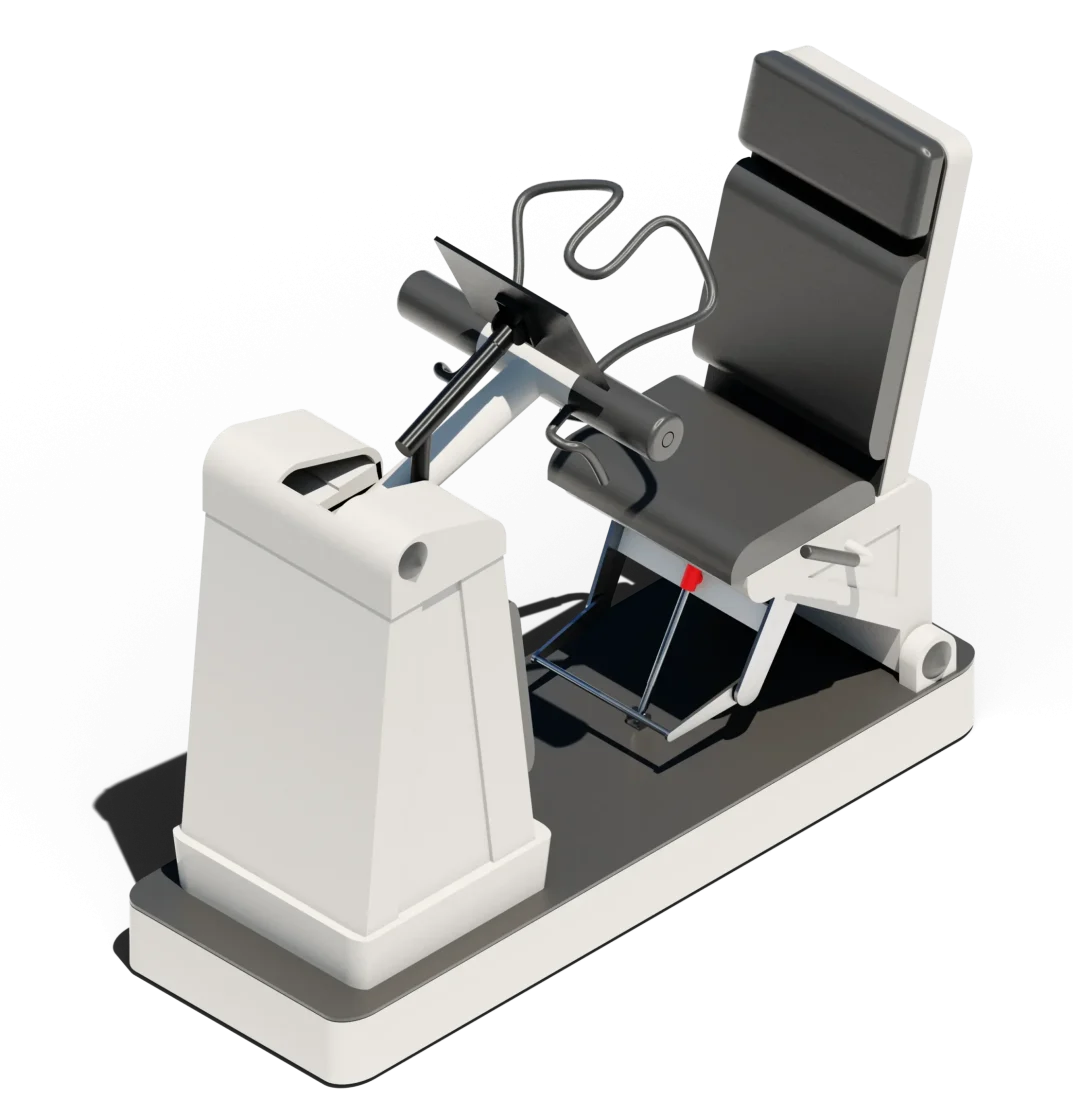

In strength and rehabilitation training, precise data is captured to measure and quantify performance while helping professionals guide performance goals. Designed to directly measure isometric muscle force, a small form factor button load cell is installed into the frame of the bone density system to provide real-time accurate force readings without affecting the main functions and movements of the machine.
Challenge
- Compact, Center-Aligned Installation: The machine’s internal layout requires compact sensors mounted in a vertical axis between two threaded fixtures. The load cells must fit in a constrained envelope without affecting the machine’s mechanical travel.
- Accurate Measurement: For accurate data, the load cell must achieve accuracy <0.2% in use along the vertical axis. Readings must be consistent with minimal effects of user misalignment or side forces.
- High Force Range and Durability: The system must withstand repeated applications of inconsistent tensile forces – up to 5,000 lb – without degradation in performance.
Solution
- The compact size of the button load cell enables it to fit within the machine’s internal structure without altering its footprint or mechanical movement.
- Threaded holes on either side of the sensor allow secure attachment between components without the need for additional mounting hardware, providing reliable measurements and a strong link between the base and moving parts of the trainer.
- The stainless steel construction and high rated capacity ensure the load cell is able to handle repeated high-force tension loads while the button style design provides high-accuracy centered force measurement with tolerance for user misalignment.
Conclusion

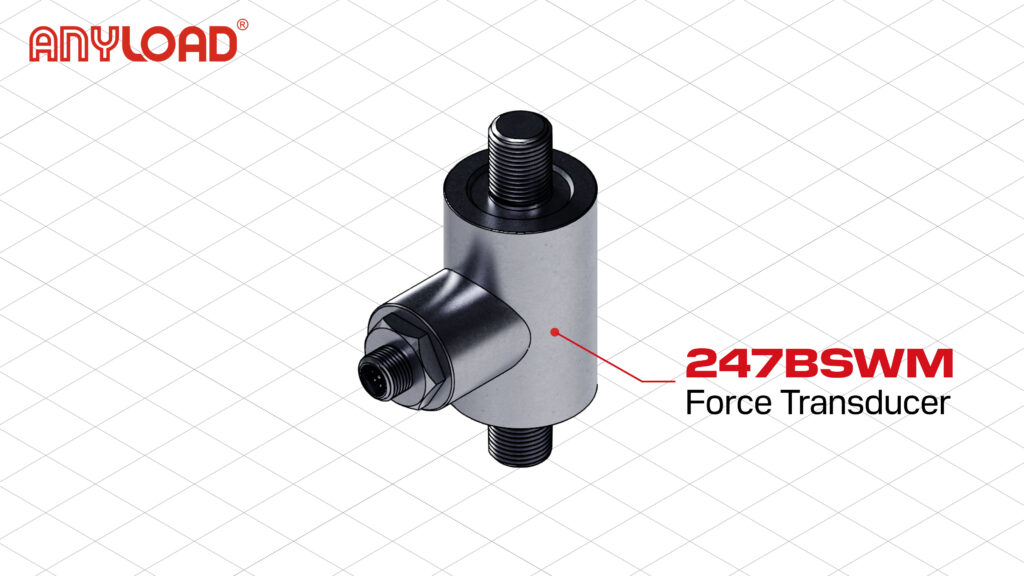

The integration of the 247BSWM series button load cell allows the bone density trainer to deliver accurate, real-time force data in a compact and intuitive design for the end user to operate. This high-performing sensor ensures strength and progress assessments are consistent and repeatable by allowing a data-driven approach to health and fitness. For more information on sensors and custom applications, please contact ANYLOAD.
Featured Products
247BS
Load Button
See standard version.
The ANYLOAD 247BS Load Button Load Cell is a compact stainless steel compression force sensor designed for accurate force measurement in machinery, automation systems, and engineering test equipment. Its low-profile button-style loading surface allows compressive forces to be measured directly while occupying minimal installation space. Built from corrosion-resistant stainless steel with sealed strain gauge construction, the 247BS delivers stable, repeatable measurements suitable for industrial environments and OEM system integration.
247BSWM
Load Button
See standard version.
The ANYLOAD 247BSWM Load Button Load Cell is a compact stainless steel compression force sensor with dual threaded studs, designed for precise force measurement in industrial automation, test and measurement systems, and OEM machinery. Its button-style compression interface and inline threaded mounting allow the sensor to be easily installed between machine components, enabling accurate measurement of compressive forces within limited installation space. The robust stainless steel construction and sealed strain gauge design provide stable, repeatable force measurement in demanding industrial environments.
Agricultural Weighing Solutions
Durable onboard weighing for fertilizer carts, enabling precise load monitoring and consistent material dispersion in harsh agricultural environments.

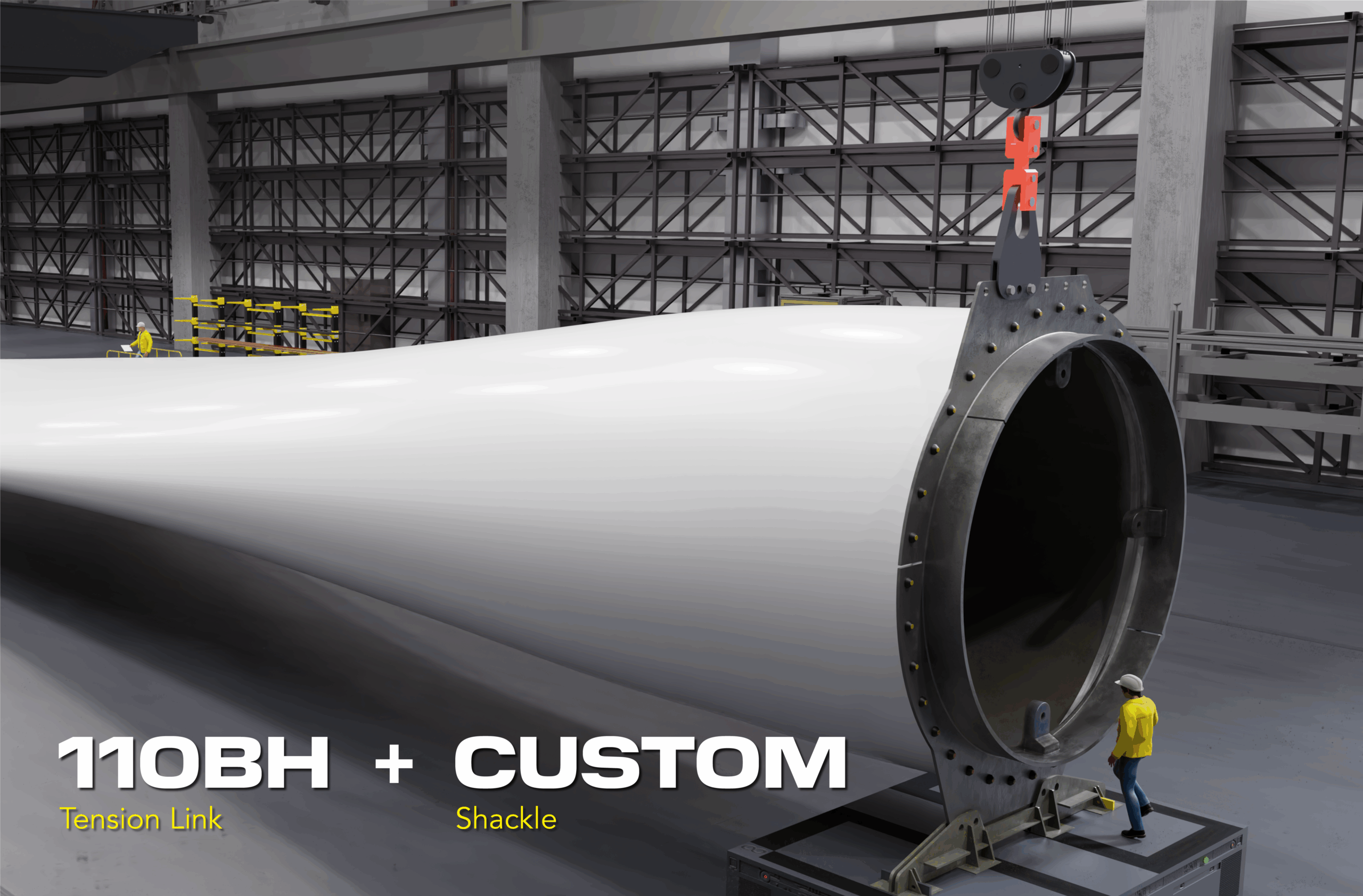

Increase Turbine Life Span
