Anyload-247BSWM-load-cell-transducer

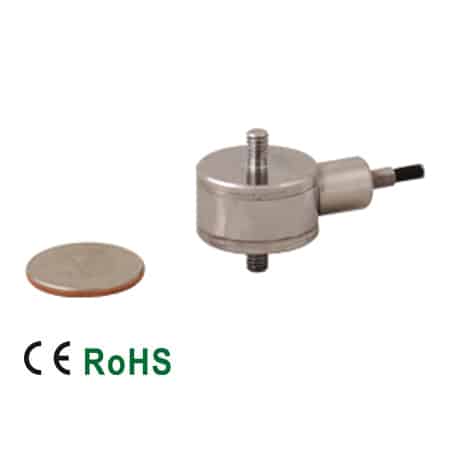

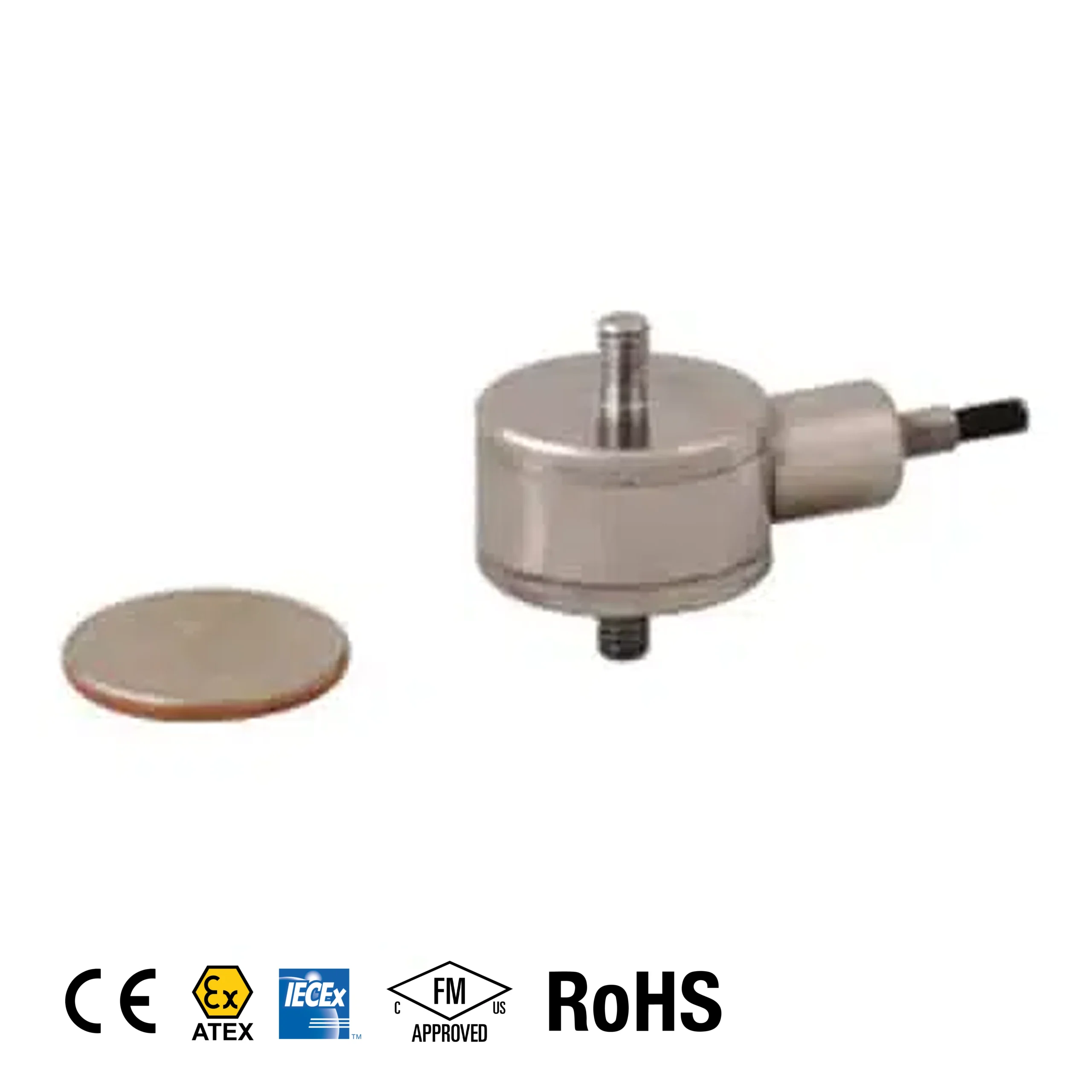

247BSWM Load Button

  • Material:  Stainless steel
  • Rated Capacities: 10lb, 25lb, 50lb, 100lb, 250lb, 500lb, 1Klb, 2Klb, 3Klb, 5Klb, 7.5Klb, 10Klb
  • Full Scale Output: 2.0mV/V ± 20%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • IP Rating: IP66
Clear
Product Enquiry
Rated Capacities 10lb, 25lb, 50lb, 100lb, 250lb, 500lb, 1Klb, 2Klb, 3Klb, 5Klb, 7.5Klb, 10Klb
Full Scale Output 2.0mV/V ± 20%
Zero Balance ± 0.04mV/V
Non-linearity < ± 0.2%
Repeatability < ± 0.1%
Hysteresis Error < ± 0.2%
Creep in 30 minutes < ± 0.2%
Input Resistance 375Ω ± 25Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Nominal Temperature Range -10°C to 40°C/14°F to 104°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity
