ANYLOAD | 247ASLL Load Button Load Cell

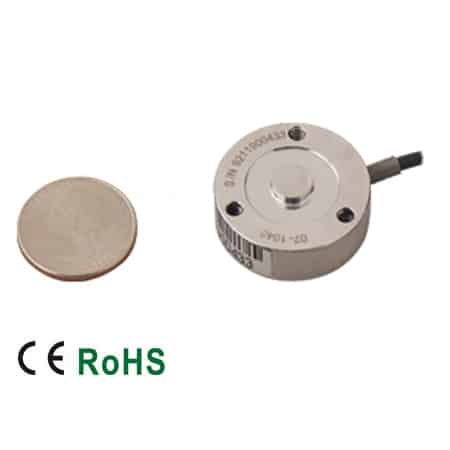

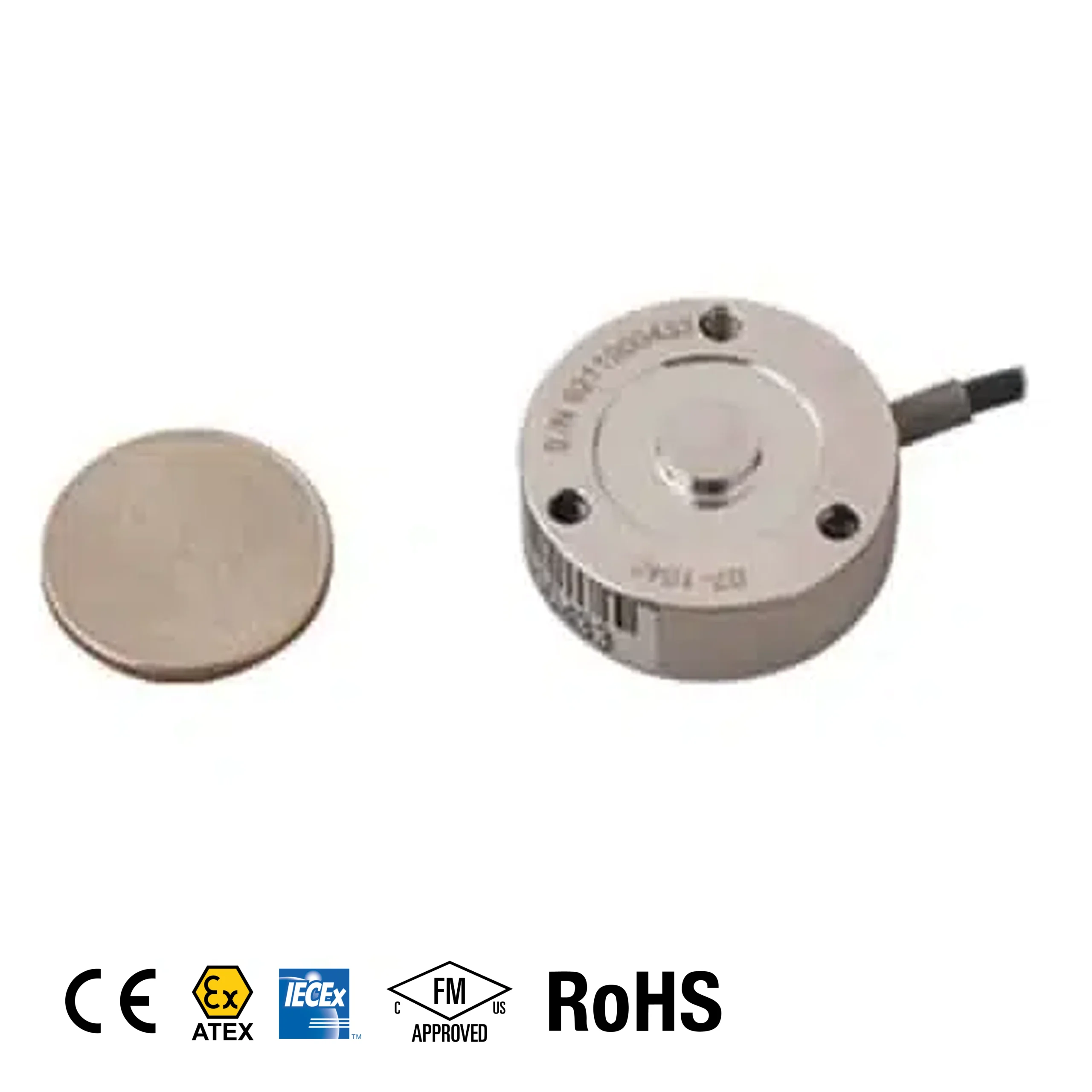

247ASLL Load Button

Description:

The 247ASLL load button constructed with 17-4ph stainless steel is a highly compact, accurate, and dependable miniature (1.5in diameter) compression load cell ideal for portable applications.

Anyload is equipping growth in the force measurement industry with this portable and reliable load cell, click here to see more force measurement products.

Features:

  • Material: Stainless steel
  • Rated Capacities: 5Klb, 10Klb
  • Full Scale Output: 2.0mV/V ± 20%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • IP Rating: IP64
Clear
Product Enquiry
Rated Capacity 5Klb, 10Klb
Full Scale Output 2.0mV/V ± 20%
Zero Balance ±0.02mV/V
Non-linearity Cap.=5Klb ≤ ± 0.25% ; Cap.=10Klb ≤ ± 0.50%
Repeatability ≤ ± 0.10%
Hysteresis Error Cap.=5Klb ≤ ± 0.25% ; Cap.=10Klb ≤ ± 0.50%
Creep in 30 minutes < ± 0.1%
Input Resistance 700Ω ±25Ω
Output Resistance 700Ω ±3Ω
Recommended Excitation 5V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Nominal Temperature Range -10°C to 50°C/-14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP64

pdf- Download data sheet

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity
