102BH Double Ended Beam Load Cell, Alloy Steel, Environmentally Sealed, IP67

102BH Double Ended Beam Load Cell

Descriptions:

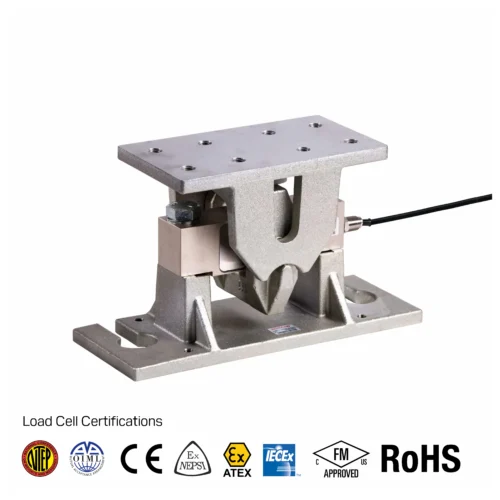

The 102BH is a medium and higher capacity alloy steel double-ended beam load cell with IP67 water resistance. Common applications include truck scales, rail/track scales, and other higher capacity applications. Interchangeable with Rice Lake (RL75058) and Vishay (see: INTERCHANGEABLE tab). A compression weigh module (102BHM1) is also available from Anyload that shields the load cell, minimizes off-center loading, and compensates for thermal expansion all to provide the ideal weighing environment.

Features:

  • Material: Alloy steel
  • Rated Capacities: 10Klb, 20Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb, SE100Klb, 100Klb, 125Klb, 200Klb, 300Klb, 400Klb, 5t, 10t, 11t, 15t, 20t, 25t, 30t, 35t, 50t
  • Full Scale Output: 3mV/V ± 0.25%
  • Safe Overload: 150% of full scale
  • Breaking Overload: 300% of full scale
  • IP Rating: IP67
  • NTEP 1:10 000 Class IIIL, Multiple Cell certified from 25Klb-125Klb
  • OIML MAA C3, Y=7 500 certified from 11t-55t
  • CE, RoHS and Ex certified
  • Lightning Protection Version (60Klb, 75Klb)
Clear
Product Enquiry
Rated Capacities 10Klb, 20Klb, 25Klb, 40Klb, 50Klb, 60Klb, 75Klb, SE100Klb, 100Klb, 125Klb, 200Klb, 300Klb, 400Klb, 5t, 10t, 11t, 15t, 20t, 25t, 30t, 35t, 50t
Full Scale Output 3mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.023%
Input Resistance 700Ω ± 10Ω
Output Resistance 700Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP67

pdf- Download data sheet

pdf- 102BH-(5-20t)

pdf- 102BH-(10-40)klb

pdf- 102BH-(25-50)t

pdf- 102BH-(50-125)klb

pdf- 102BH-(200-300)klb

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity

Manufacturer Model
Coti Global CG-58
Rice Lake RL75058
Vishay Celtron CLB
Vishay Revere Transducers 5303
Vishay Sensortronics 65058A*
Vishay Tedea-Huntleigh 4158

*Sensortronics 65058A SE50Klb and 50Klb
