QS5-S4 Stainless Steel Load Cell Kit

Features:

  • NTEP certified load cells from 250lb-20Klb
  • OIML certified load cells from 1Klb-10Klb (QS5-S4);
  • CE , RoHS and ExNepsi certified load cells
  • Full Scale Output: 3mV/V ± 0.25% (QS5-S4)
  • Junction box is equipped with integrated resistor networks
  • Cable is coloured in accordance to the ANYLOAD color code

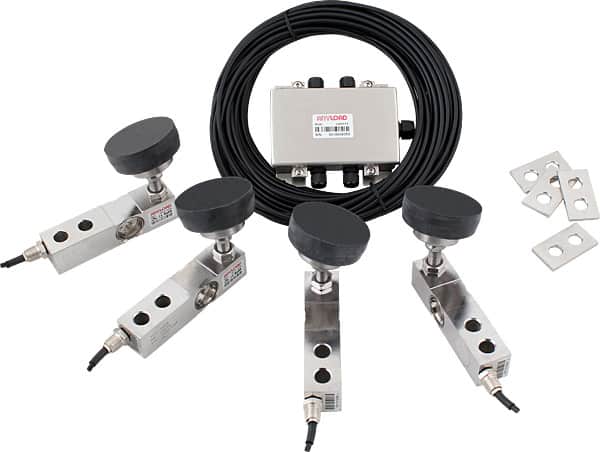

Load Cell Kit Includes:

  • 4 pcs x Stainless steel single ended shear beam load cells (563YS30)
  • 4 pcs x Stainless steel load cell spacers (SPACERSS)
  • 4 pcs x Stainless steel mounting feet (AMFS4)
  • 1 pc x Stainless steel junction box (J04ES-FS or J04SS-FS)
  • 1 pc x 20m (65 feet) PVC cable (CB4-5.1-20m)
Load Cell Capacity Part No. Shipping Weight (kg) Approx.
QS5-S4 (563YS30, J04SS-FS)
500lb QS5-GS-S4-SF-500lb 7.6
1Klb QS5-S4-SF-1Klb 7.6
2.5Klb QS5-S4-SF-2.5Klb 7.6
4Klb QS5-S4-SF-4Klb 7.6
SE5Klb QS5-S4-SF-SE5Klb 7.6
5Klb QS5-S4-SF-5Klb 11.4
10Klb QS5-S4-SF-10Klb 11.4
QS5-S4 (563YS30, J04ES-FS)
500lb QS5-GS-S4-EF-500lb 7.6
1Klb QS5-S4-EF-1Klb 7.6
2.5Klb QS5-S4-EF-2.5Klb 7.6
4Klb QS5-S4-EF-4Klb 7.6
SE5Klb QS5-S4-EF-SE5Klb 7.6
5Klb QS5-S4-EF-5Klb 11.4
10Klb QS5-S4-EF-10Klb 11.4
