AMF-F Load Cell Feet

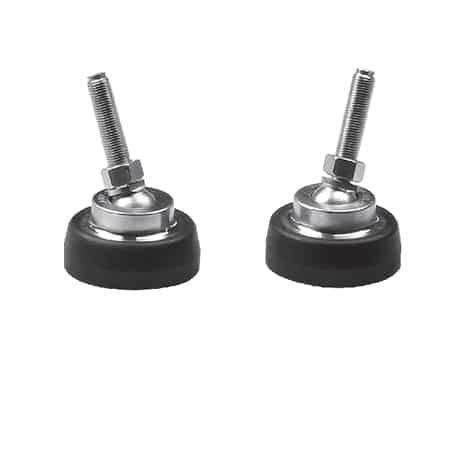

The ANYLOAD AMF-F Active Mounting Foot is an alloy steel self-aligning mounting foot designed to support load cells and weighing platforms in floor scale and industrial weighing installations. Available in capacities ranging from 100 lb up to 20,000 lb (or 100 kg to 10,000 kg), the AMF-F accommodates a wide range of scale sizes, from compact bench and floor scales through heavy-duty platform applications.
Its threaded stud design, offered in imperial sizes (1/2″-20 UNF, 3/4″-16 UNF, 1″-14 UNS) and metric sizes (M12x1.75, M18x1.75, M24x2.00), allows for adjustable height leveling and simplified installation onto scale frames and support structures. Built with a durable alloy steel construction and a rubber base pad, the AMF-F provides stable, self-aligning support that helps maintain load cell accuracy by reducing side loading and minimizing the effects of uneven floor surfaces.
This active mounting foot design is well suited for floor scales, platform scales, tank and hopper weighing systems, and other load cell-supported structures where reliable leveling and vibration-dampening support are required. For applications requiring corrosion resistance, the AMF-F is also available in 2Cr13 stainless steel (AMFSS-F-xx) and 17-4PH/304 stainless steel (AMFS4-F-xx) variants, making it suitable for washdown environments, food processing, and other corrosive or hygienic weighing applications.
If your operation requires mounting hardware for a specific scale platform or load cell configuration, ANYLOAD can assist with product selection based on capacity, thread size, and environmental requirements.
Features
- Rated capacities: 100 – 20,000 lb / 100 – 10,000 kg
- Alloy steel construction with plated finish
- Swivel design with active ball for ideal load cell loading conditions
- Adjustable height, includes jam nut
- Base equipped with large removable rubber elastomeric cover
- Imperial thread sizes: 1/2″-20 UNF-2A, 3/4″-16 UNF-2A, 1″-14 UNS-2A
- Metric thread sizes: M12×1.75, M18×1.50, M24×2.00
- Available in 2Cr13 stainless steel (AMFSS-F-xx) and 17-4PH/304 stainless steel (AMFS4-F-xx)
