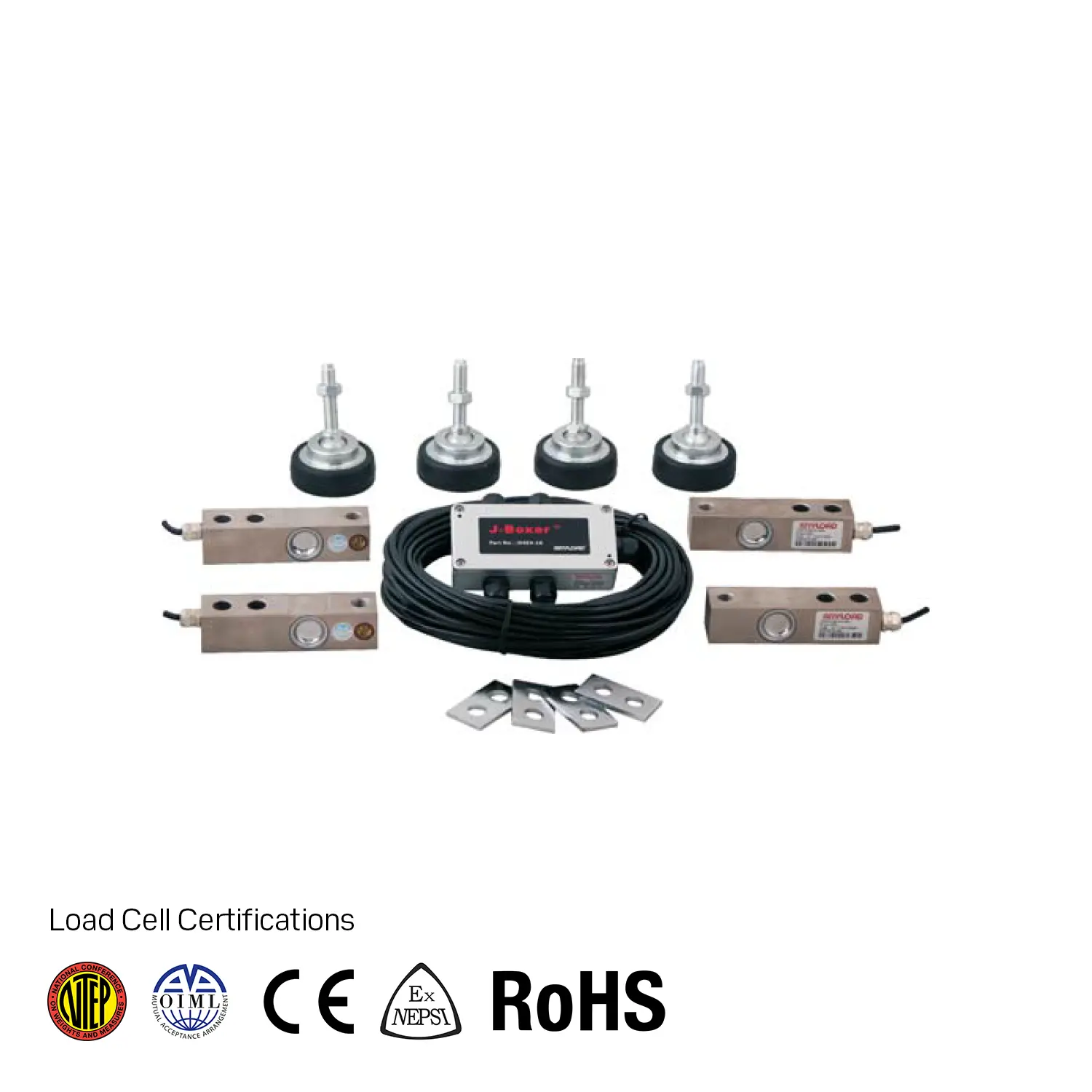

QS5 Load Cell Kit


  • NTEP certified load cells from 500lb-10Klb
  • OIML certified load cells from 1Klb-10Klb
  • CE , RoHS and ExNepsi certified load cells
  • Full Scale Output: 3mV/V ± 0.25%
  • Junction box is equipped with integrated resistor networks
  • Cable is coloured in accordance to the ANYLOAD color code

Complete Set:

  • 4 pcs x Stainless steel single ended shear beam load cells (563YS30)
  • 4 pcs x Stainless steel single load cell spacers (SPACERSS)

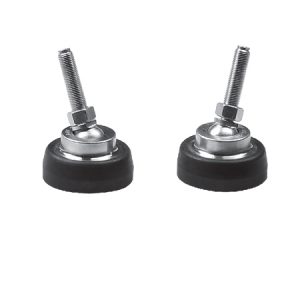

  • 4 pcs x Stainless steel mounting feet (AMFSS)
  • 1 pc x Aluminum junction box (J04EA-16 or J04SA-16)
  • 1 pc x 20m (65 feet) PVC cable (CB4-5.1-20m)
Load Cell Capacity Part No. Shipping Weight (kg) Approx.
QS5-SA-16 (563YS30, J04SA-16)
500lb QS5-GS-SA-16-500lb 7.6
1Klb QS5-SA-16-1Klb 7.6
2.5Klb QS5-SA-16-2.5Klb 7.6
4Klb QS5-SA-16-4Klb 7.6
SE5Klb QS5-SA-16-5Klb 7.6
5Klb QS5-SA-16-5Klb 11.4
10Klb QS5-SA-16-10Klb 11.4
QS5-16 (563YS30, J04EA-16)
500lb QS5-GS-16-500lb 7.6
1Klb QS5-16-1Klb 7.6
2.5Klb QS5-16-2.5Klb 7.6
4Klb QS5-16-4Klb 7.6
SE5Klb QS5-16-SE5Klb 7.6
5Klb QS5-16-5Klb 11.4
10Klb QS5-16-10Klb 11.4
