ANYLOAD | J-BOXER Junction Box

J04EA-16 and J04SA-16 J-BOXER Junction Box

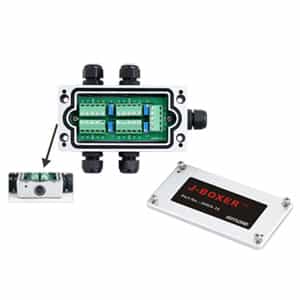

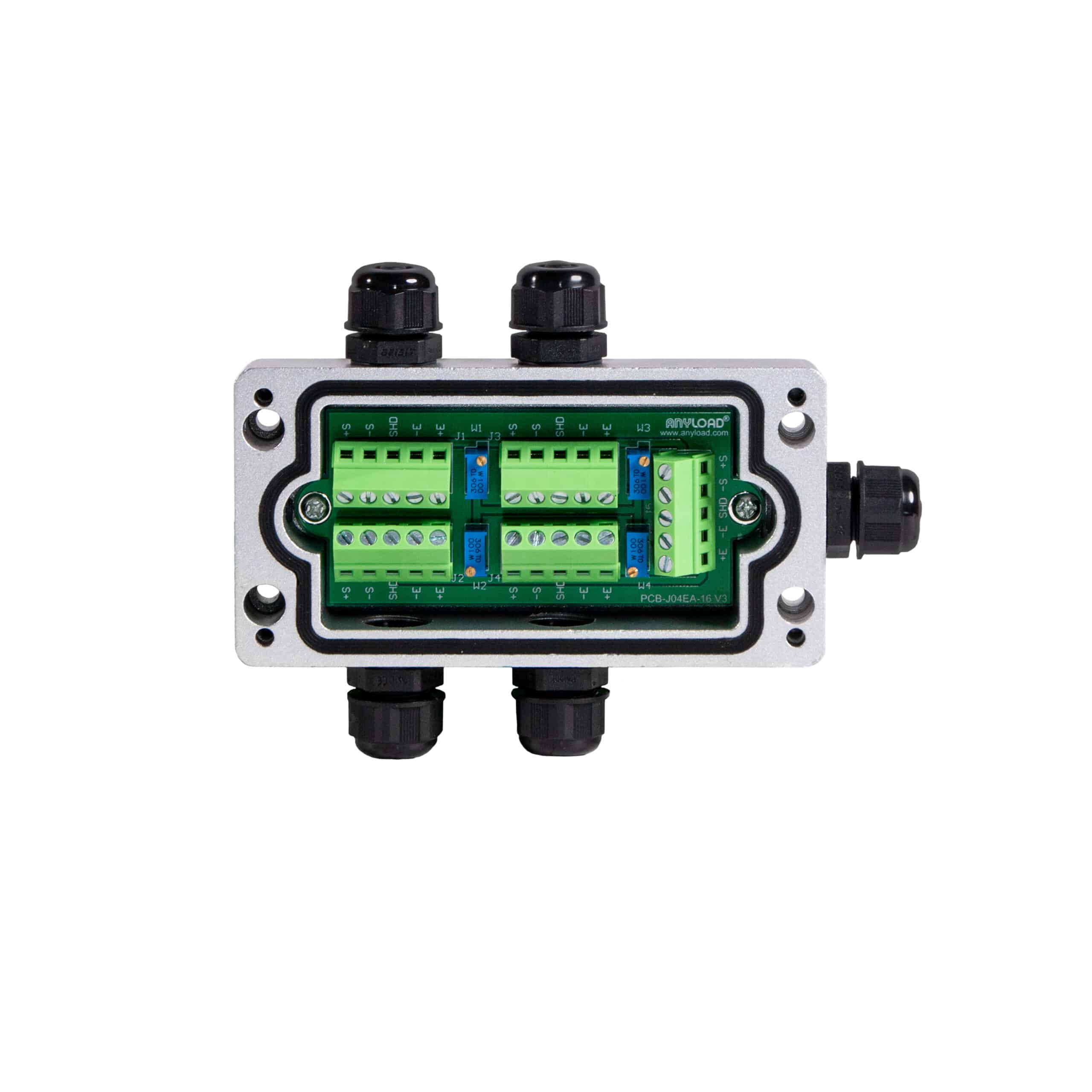

ANYLOAD J04EA-16 and J04SA-16 junction and summing boxes accept inputs from multiple load cells and sum up the generated signals into a single output to ensure an accurate multi-cell balance adjustment. The J04EA-16 and J04SA-16 are housed in an aluminum enclosure and are designed to accommodate two to four parallel load cell connections.

  • Compact size with strong aluminum casting
  • Number of cells: 2-4 single cells
  • Trimming Options: Individual cell with excitation or signal trim

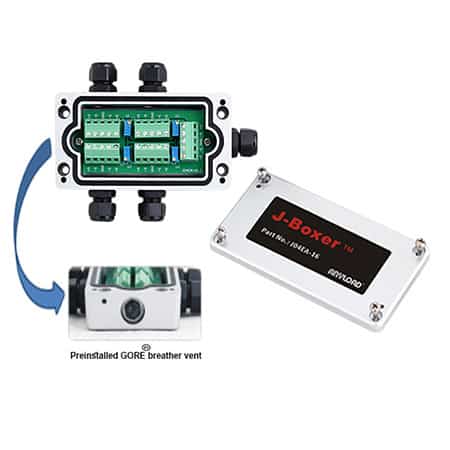

  • Preinstalled GORE breather vent
  • Equipped with independent potentiometers
  • Captive stainless steel screws (attached to the cover)
  • IP Rating: IP67
Product Enquiry
Number of cells 2-4 single cells
Input Cable Fittings PG9: 4mm-8mm diameter cable
Output Cable Fittings PG9: 4mm-8mm diameter cable
Trimming Individual cell with excitation or signal trim
Enclosure Material Aluminum Casting
IP Rating: IP67
Load Cell Resistance Signal Trim Excitation Trim
350Ω 3.6% of output 2.3% of output
700Ω 6.3% of output 1.3% of output
1000Ω 7.0% of output 1.0% of output

pdf- Download data sheet

pdf- Download manual - J04EA-16 v1.2

pdf- Download manual - J04SA-16 v1.1
