ANYLOAD | J04ES-E-J04SS-E Junction Box

J04ES-E and J04SS-E Junction Box

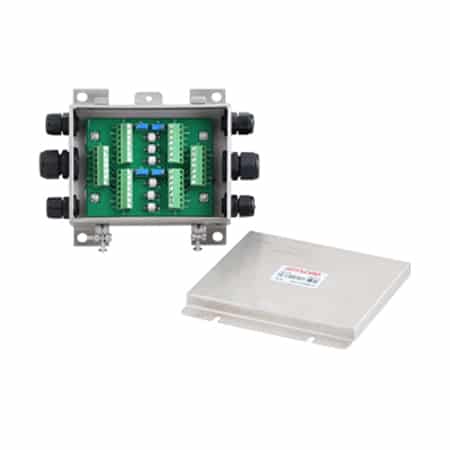

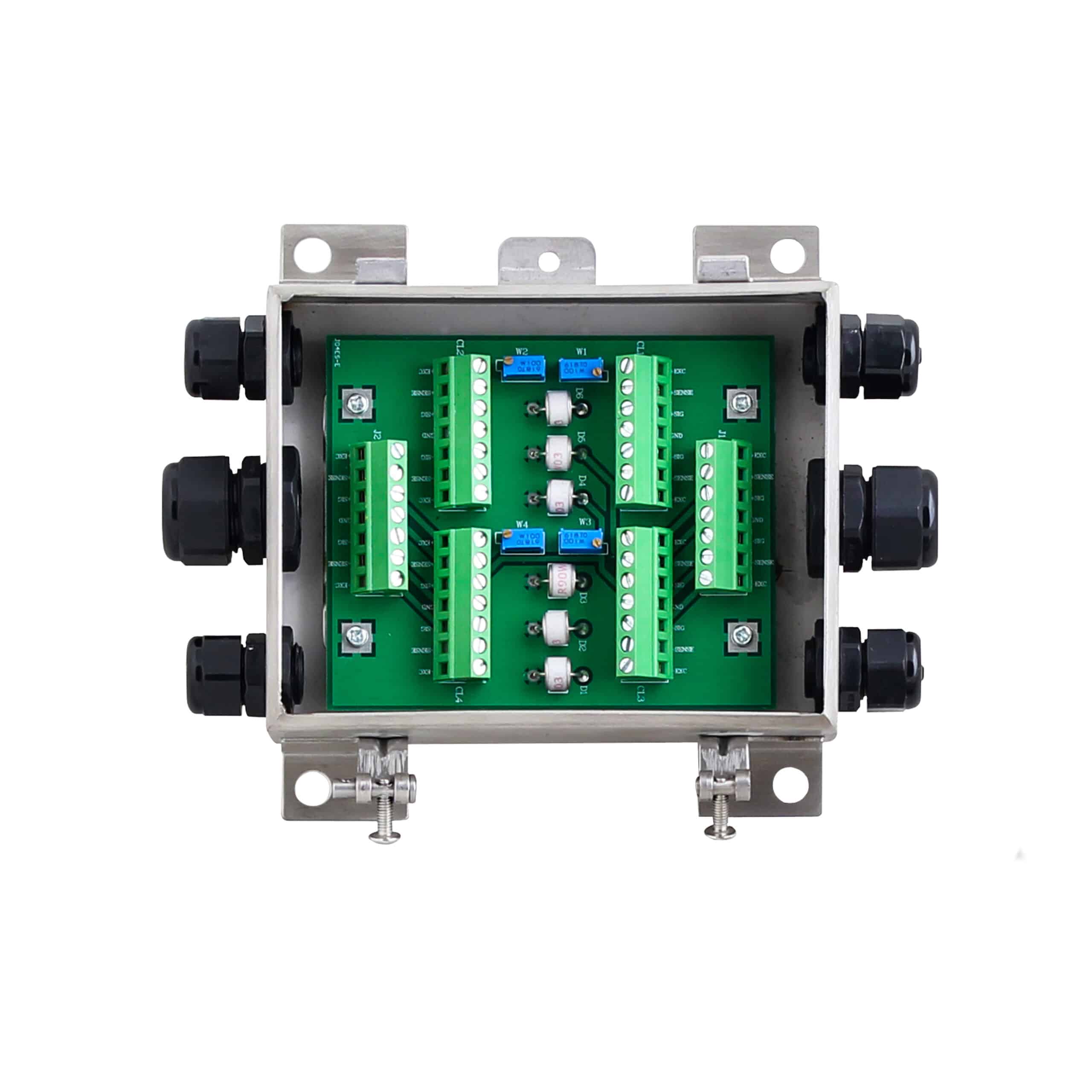

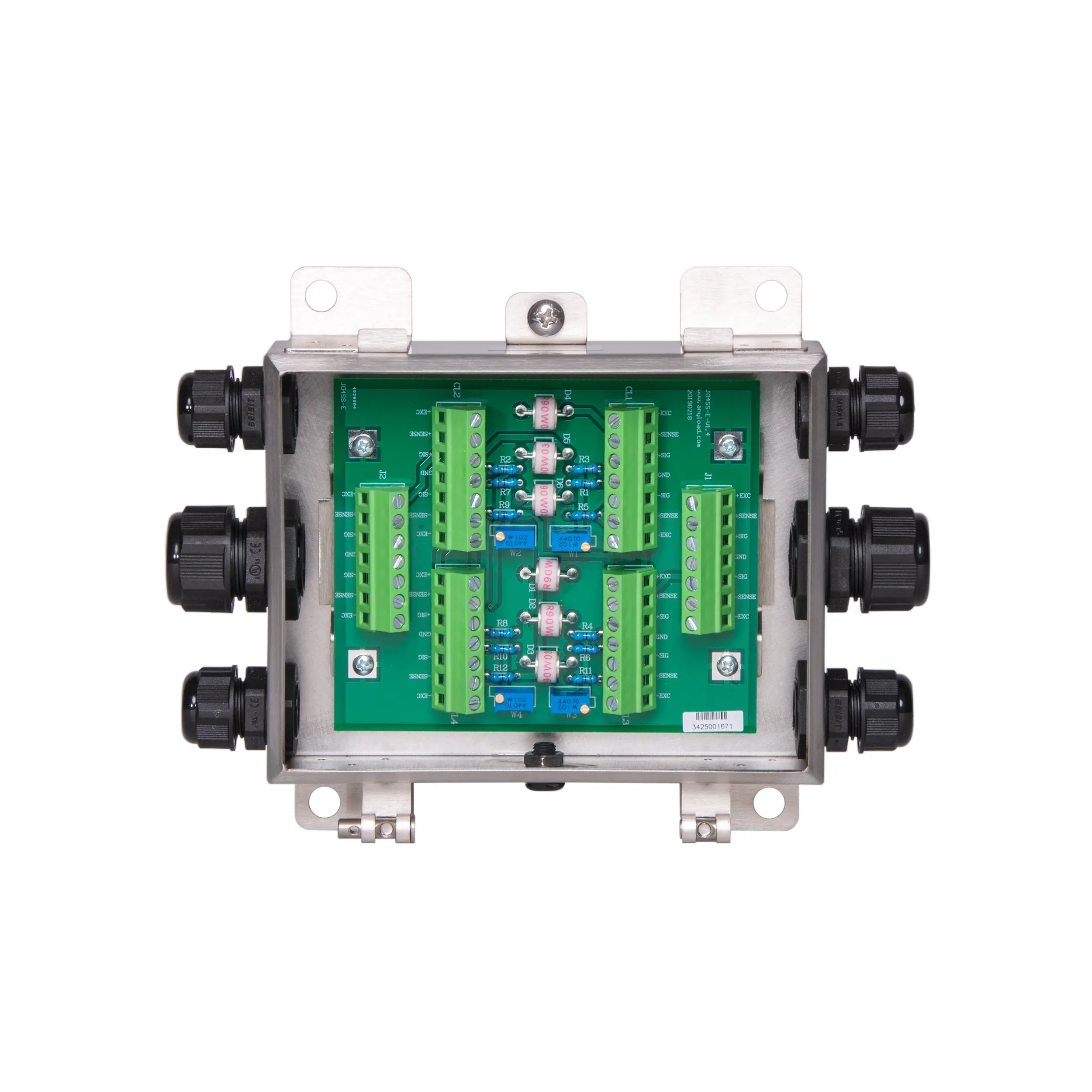

ANYLOAD J04ES-E and J04SS-E junction and summing boxes accept inputs from multiple load cells and sum the generated signals into a single output to ensure an accurate multi-cell balance adjustment. They are housed in a stainless steel SS304 enclosure and are designed to accommodate two to four parallel load cell connections with an expansion port for wiring additional junction box. The J04ES-E and J04SS-E load cell junction boxes are easy to install with captive stainless steel screws.



  • Expansion port (for wiring additional junction boxes to allow more load cells to be connected)
  • Lightning protection
  • Enclosure Material: Stainless steel SS304
  • Number of cells: 2-4 single cells
  • Trimming Options: Individual cell with excitation or signal trim
  • Equipped with independent potentiometers
  • Captive stainless steel screws
  • IP Rating: IP65
Clear
Product Enquiry
Number of cells 2-4 single cells
Input Cable Fittings PG9: 4mm-8mm diameter cable
Output Cable Fittings PG13: 6mm-12mm diameter cable
Trimming Individual cell with excitation or signal trim
Enclosure Material Stainless steel SS304
IP Rating: IP65
Load Cell Resistance Signal Trim Excitation Trim
350Ω 3.6% of output 2.3% of output
700Ω 6.3% of output 1.3% of output
1000Ω 7.0% of output 1.0% of output

pdf- Download data sheet
