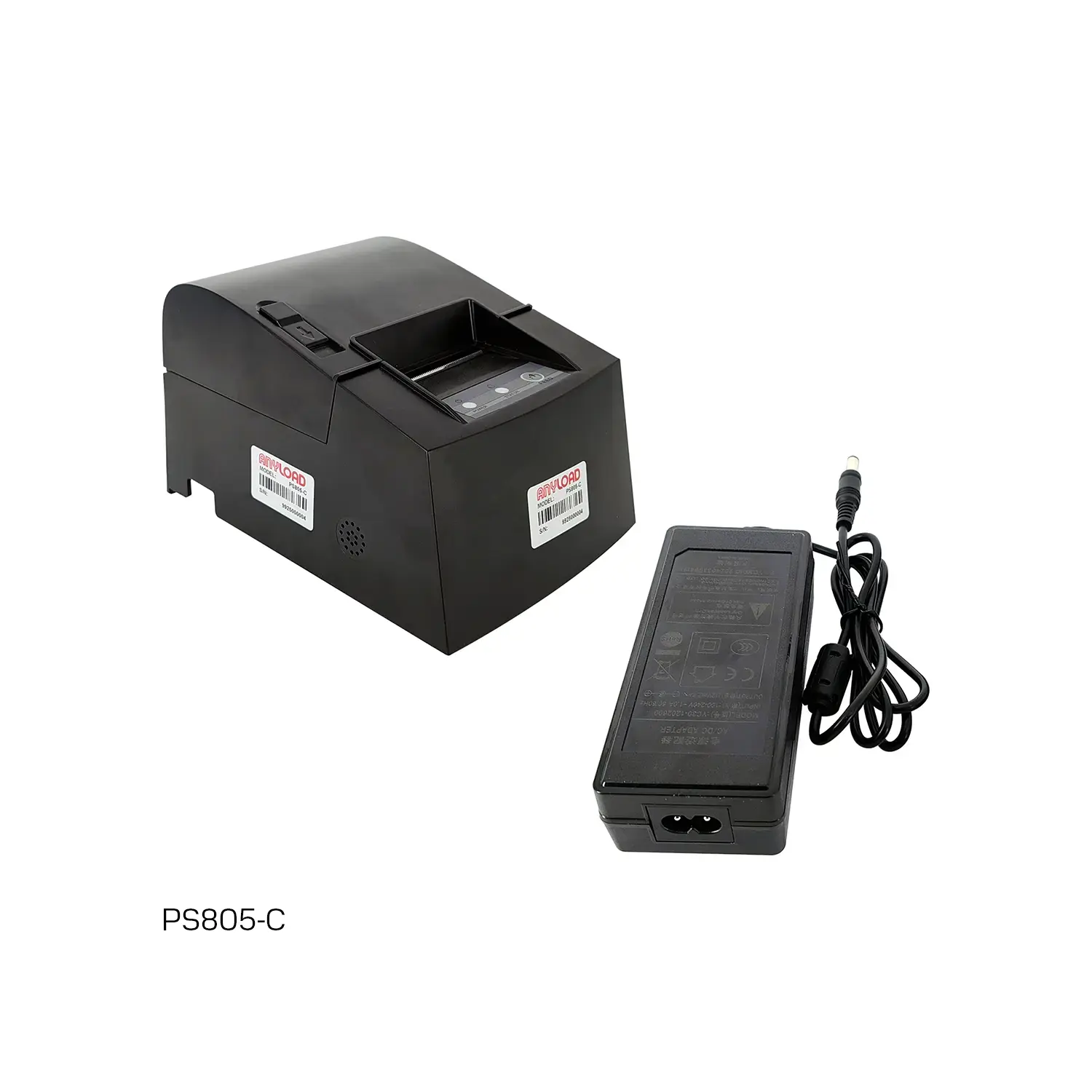

PS805 Thermal Receipt Printer

  • Thermal receipt printer for the 805BS and 805TS digital indicators
  • User friendly plug and play
  • Low-noise thermal printing
  • Easy paper roll installation
  • Easy paper jam clearance
  • Easy maintenance for tasks such as head cleaning
  • Thermal line printing method
  • Working humidity environment: 20%-85%
  • ABS enclosure material

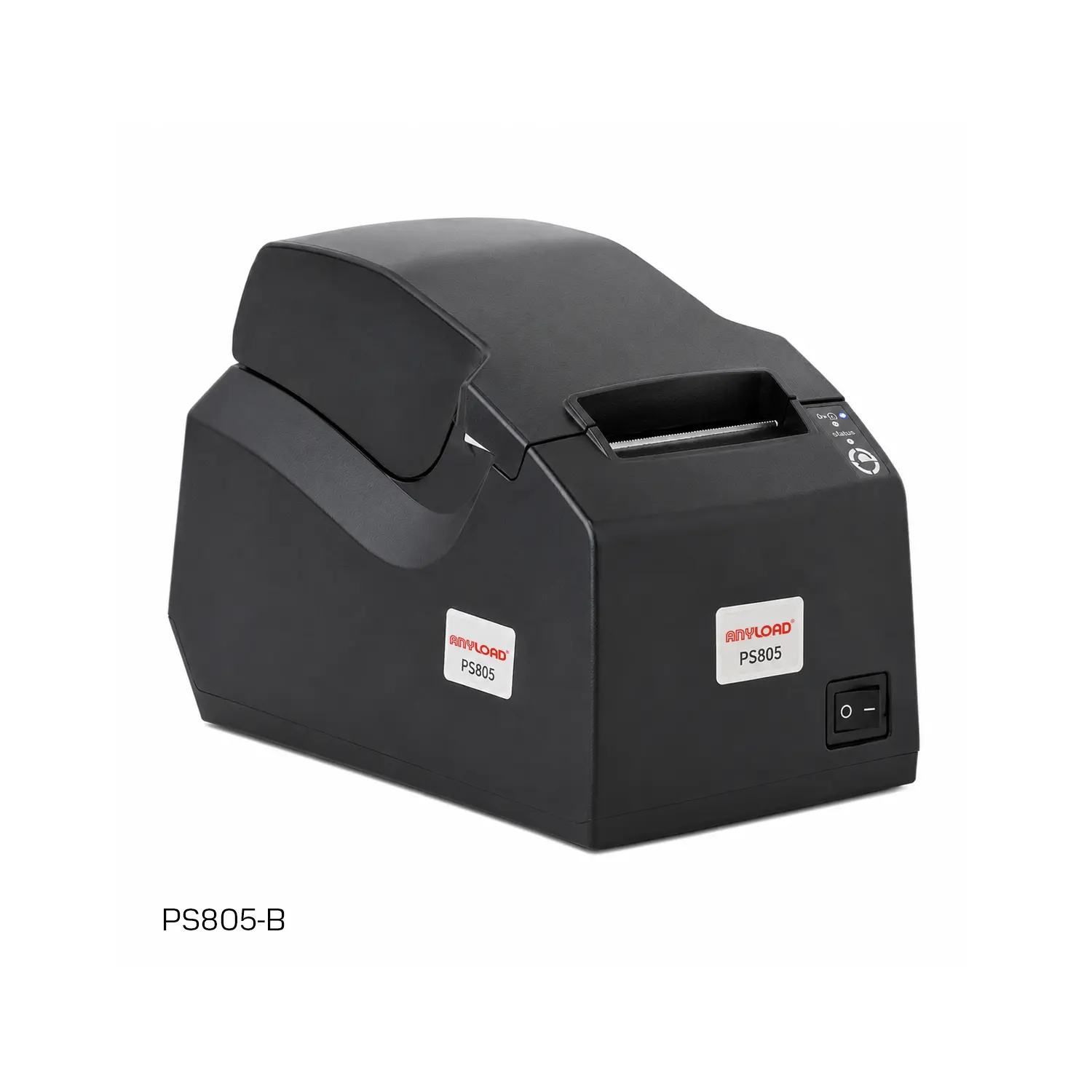

PS805 PS805-B
Print Method Thermal line printing Thermal line printing
Print Roll Width 57.5 ± 0.5mm 58mm
Paper Roll Diameter (mm) Max. Ф50mm/Min. Ф13mm with reel Max. Ф83mm
Paper Roll Diameter (in) Max. Ф1.97in/Min. 0.02in with reel Max. Ф3.27in
Paper Thickness 60-70um; 53-60g/m2 0.056mm-0.1mm
Effective Print Width 48mm/1.89in
Print Density / Resolution 8pt per mm / 385pt per line 8dots per mm / 203dpi
Print Speed 50mm per second 100mm per second
Paper Rolling Speed 50mm per second 100mm per second
Interfaces Ethernet(drawer), Serial (DB25) USB, Ethernet(drawer), Serial (DB9)
Graphics Support Max. 40K per bitmap; Max. 64K for total
Barcode UPC-A, UPC-E, EAN8, CODE39, ITF, CODEBAR, CODE128, CODE93, QR Code
Font Chinese GBK 24x24dots, ASCII 8×16 / 12X24dots, User-defined, CodePage 48
Memory 20Klb RAM / 2MB Flash
Indicators Power: Green LED; Error: Red LED
Software ESC/POS Emulation; WinXP to Win10/POSReady/Linux/OPOS
Power Supply Input: 100-240VAC Output: DC9V-12V, 2A Input: 100-240VAC Output: DC12V, 2A
Working Temperature 0°C to 50°C / 32°F to 122°F
Reliability (MCBF) 10×106 line 100km TPH life
Dimensions 116mm x 185mm x 140mm / 4.51in x 7.28in x 5.51in 114mm x 186mm x 128mm / 4.48in x 7.30in x 5.04in
