ANYLOAD | 805TS Digital Weight Indicator

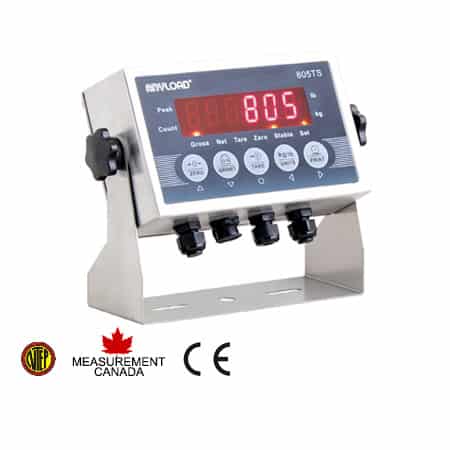

805TS Digital Weight Indicator

The ANYLOAD 805TS digital weight indicator is a general purpose indicator that provides high accuracy and reliability with multiple functions. The 805TS has an A/D adopted conversion technology of a 24-bit microprocessor with a rate of conversion of 200 cycles per second and can drive up to eight 350Ω or sixteen 700Ω load cells through a junction box. With a SS304 stainless steel wash down enclosure, the 805TS ANYLOAD digital weighing indicator is ideal for the food industry, agricultural industry, and industrial applications and has the added bonus of being NTEP III/IIIL, 10000 and Measurement Canada III, 10000; III HD 20000 approved.

  • NTEP III/IIIL, 10 000 approved
  • Measurement Canada III, 10 000; III HD 20 000
  • Material: Stainless steel SS304
  • IP Rating: IP66
  • LED 6-digit display
  • Power Supply: External AC adaptor, 110VAC +10% /-15% or 220VAC +10% /-15%, 50-60Hz
  • Parameter and calibration settings are performed on the front panel
  • Units of Measurement: kg, lb
  • Indication of improper operation and fault
  • Two-way relay signal output
  • Equipped with RS-232 and RS-485 connecting ports
  • Print functions with programmable print format
  • Serial print interface
  • Built-in clock
  • Functions:Auto Zero Scale, Auto Zero Tracking, PEAK, COUNT, Zero Scale, TARE, GROSS/NET
  • Password Function to provide easy method in adjusting the parameter settings without opening the back panel. Applicable only if legal for trade is not required
Clear
Product Enquiry
GENERAL SPECIFICATIONS 805TS-B / 805TS-B-16 805TS-B-17 805TS-B-19A 805TS-B-19B
Enclosure Material Stainless steel SS304
Units of Measurement kg, lb
Working Humidity ≤90% RH
Working Temperature -10°C to 40°C/14°F to 104°F
Dimensions (mm) 226mm x 94mm x 161mm 226mm x 76mm x 181mm
Dimensions (in) 8.9in x 3.7in x 6.34in 8.9in x 3.0in x 7.13in
Display Type LED
Display Digits 6 digits
Digit Height 20.3mm/0.8in
Display Dimensions 143mm x 41mm/5.6in x 1.6in
Power Supply AC adaptor, 100-240VAC, 6VDC 1.5A, 50-60Hz External AC linear adaptor, 110VAC +10%-15%, 9VDC 600mA, 50-60Hz or External AC linear adaptor, 220VAC +10%-15%, 9VDC 600mA, 50-60Hz External Desktop type Power Supply, 100-240VAC, 9VDC 1000mA, 50-60Hz (Two pieces, 1st piece from 3 pin wall socket to adaptor, 2nd piece from adaptor to indicator). See details here Internal type Power Supply, 100-240VAC, 12VDC 2500mA, 50-60Hz (3 pin wall adaptor, single power cord from wall socket to indicator, since power supply is internal). See details here
IP Rating IP66
TECHNICAL SPECIFICATIONS 805TS-B / 805TS-B-16 805TS-B-17 805TS-B-19A / 805TS-B-19B
Division 1, 2, 5, 10
Tare Range 100% Full Scale
Maximum Number of Load Cells 8×350Ω or 16×700Ω (through a junction box)
Maximum Power Consumption 10W
Excitation Voltage 5VDC ± 5%
Fusible Link Fuse (slow blow) 1.1A
Communications Interface RS-232 and RS-485
Input Range Up to 20mV
Update Rate (Display Rate) N/A 20ms
Print Interface Serial interface
805TS-B / 805TS-B-16 805TS-B-17 / 805TS-B-19A / 805TS-B-19B
Auto Zero Scale Auto and Manual Zero Scale
Auto Zero Tracking
Normal Weighing
Peak
Counting
Zero Scale
Tare
Gross / Net
Alarm when load exceeds the maximum load capacity of the scale or load cell
N/A Password to provide easy method in adjusting the parameter settings without opening the back panel. Only if legal for trade is not required
RS-232 and RS-485
Two-way relay signal output
Print Interface (PS805)
Labrador software for parameter and calibration settings No Labrador software support

pdf- Download data sheet for 805TS-B-17

pdf- NTEP Certificate of Conformance

pdf- Measurement Canada Approval

pdf- CE Certificate of Conformity - Electromagnetic Compatibility Directive

pdf- CE Certificate of Conformity - Low Voltage Directive

pdf- Download manual for 805TS Series

pdf- Download manual for 805TS-B-17

pdf- Download Labrador manual

pdf- Download Labrador software

pdf-Peak Tutorial Video

pdf-Count Tutorial Video

pdf-Calibration Tutorial Video
