J06ES and J06SS Load Cell Junction Box, Stainless Steel SS304, IP65

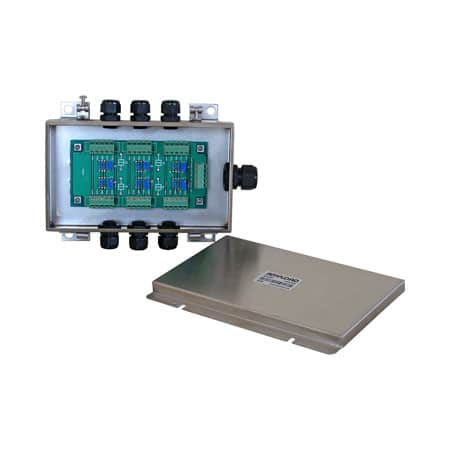

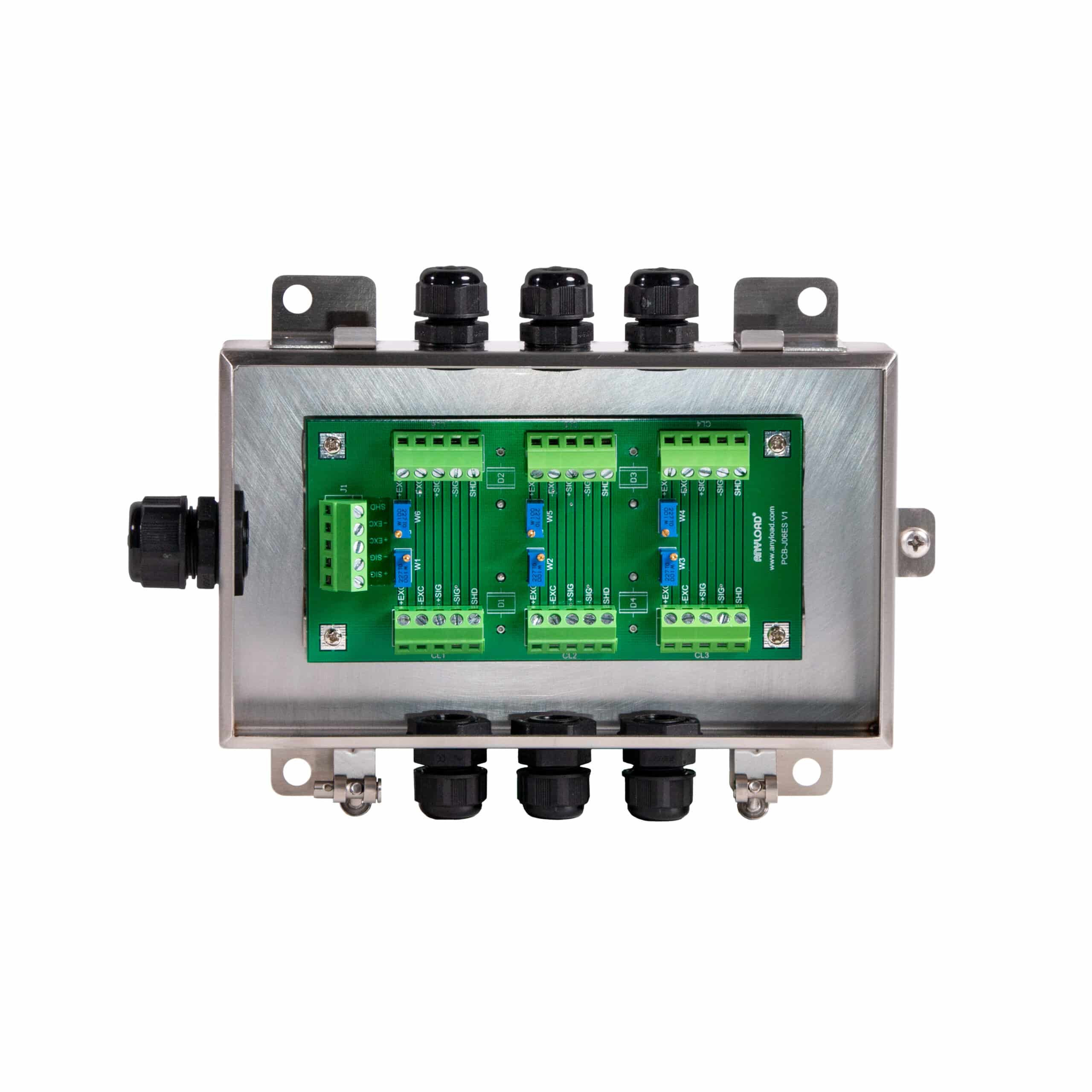

J06ES and J06SS Junction Box

ANYLOAD J06ES and J06SS junction and summing boxes accept inputs from multiple load cells and sum up the generated signals into a single output to ensure an accurate multi-cell balance adjustment.  The J06ES and J06SS are housed in a stainless steel SS304 enclosure and are designed to accommodate two to six parallel load cell connections.  The J06ES and J06SS load cell junction boxes are easy to install with our patented never-lost and integrated screw design. These models have an optional Lightning Protection.

  • Enclosure Material: Stainless steel SS304
  • Number of cell connections: 2-6 single cells
  • Trimming Options: Individual cell with excitation or signal trim
  • Protection Option: Lightning Protection
  • Equipped with independent potentiometers
  • Patented never lost and integrated screw design
  • IP Rating: IP65
Clear
Product Enquiry
Number of cells 2-6 single cells
Input Cable Fittings PG9: 4mm-8mm diameter cable
Output Cable Fittings PG13: 6mm-12mm diameter cable
Trimming Options Individual cell with excitation or signal trim
Enclosure Material Stainless steel SS304
IP Rating IP65
Load Cell Resistance Signal Trim Excitation Trim
350Ω 3.6% of output 2.3% of output
700Ω 6.3% of output 1.3% of output
1000Ω 7.0% of output 1.0% of output

pdf- Download data sheet

pdf- Download manual - J06ES v1.2

pdf- Download manual - J06ES-II v1.2

pdf- Download manual - J06SS v1.2

pdf- Download manual - J06SS(66) v1.2

pdf- Download manual - J06SS-II v1.2

pdf- Download manual - J06SS-II(66) v1.2
