563YS30 Single Ended Beam Load Cell, Stainless Steel, Welded Seal, IP68

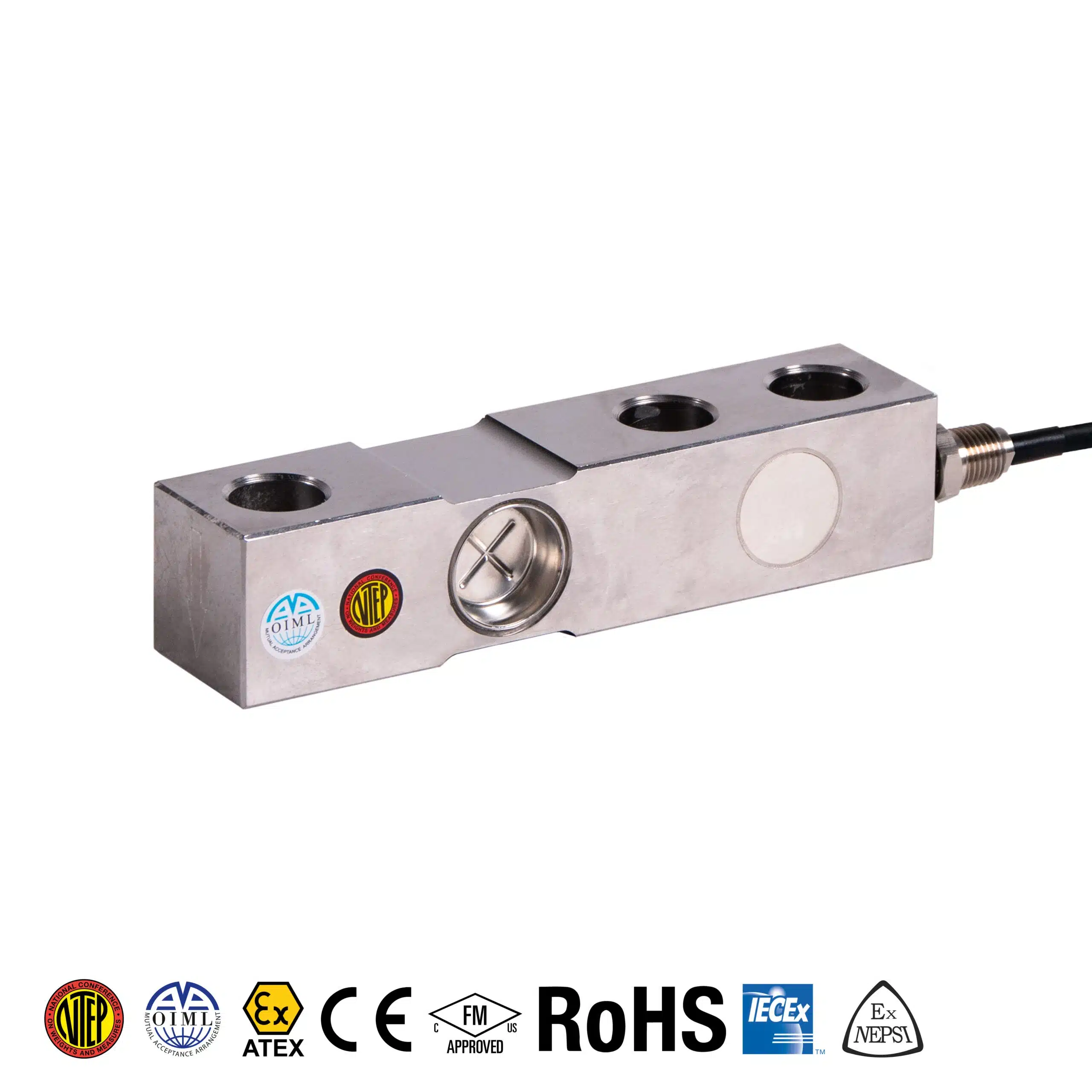

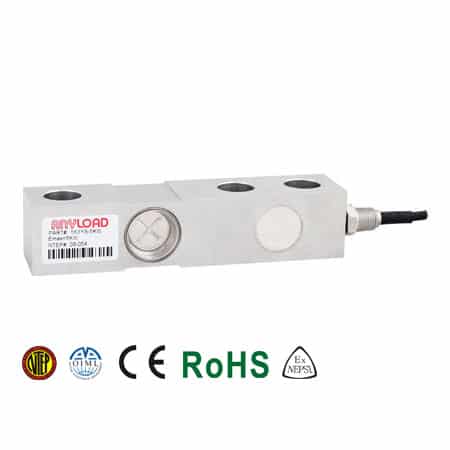

563YS30 Single Ended Beam Load Cell

Description:

The 563YS30 is a medium to high-capacity single-ended beam load cell with stainless steel welded sealed IP68-class water and corrosion resistance. This is the 3mV/V iteration of the 563YS. The reliable, low-profile design is easy to install and is interchangeable with VPG, Rice Lake, HBM, and Coti Global models (see: INTERCHANGEABLE tab). Common applications include platform scales, hopper scales, tank scales, and process weighing. This cost-effective product is also frequently used in OEM applications.

A compression weigh module (563YSM3) is available to facilitate installation for ideal loading, with easy-to-install mounting options, allowance for thermal expansion, and protection from irregular loading and lifting.

Features:

  • Material: Stainless steel
  • Rated Capacities: 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb
  • Full Scale Output: 3mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • NTEP 1:5 000 Class III, Multiple Cell certified from 1Klb-10Klb
  • CE, RoHS and Ex certified
Clear
Product Enquiry
SKU: N/A Category: Tag:
Rated Capacities 500lb, 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb
Full Scale Output 3mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.023%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.030%
Input Resistance 350Ω ± 7Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

pdf- Download data sheet

pdf- 563YS-563YS30-500lb-20klb

pdf- 563YS-563YS30-250kg-10t

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity

Manufacturer Model
Coti Global CG-23-SSW-03
HBM B35**
HBM H35***
Mettler-Toledo 0793
Rice Lake RL35023S**
Rice Lake RL35083
Rice Lake RL39123
Vishay Celtron SQB-HSS
Vishay Revere Transducers 9123
Vishay Sensortronics 65023S**
Vishay Sensortronics 65023SS****
Vishay Sensortronics 65083
Vishay Tedea-Huntleigh 3510-lbs

** Environmentally sealed

*** Welded seal

**** Environmentally sealed for capacities 1Klb-10Klb
