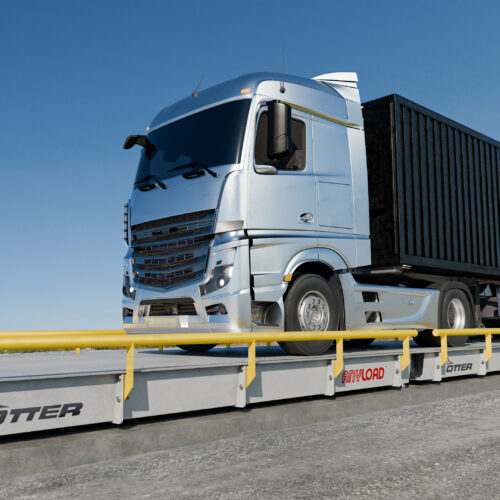

OTTER Steel Deck Truck Scale
ANYLOAD’s OTTER™ Steel Deck Truck Scale delivers dependable weighing performance for a wide range of general industrial applications. Built on an orthotropic U-channel deck structure, the OTTER achieves strong load distribution, low deflection, and reliable fatigue resistance while maintaining a lighter and more portable form factor. Its modular architecture is designed for efficient transport, straightforward installation, and simple expansion when site requirements change. These qualities make the OTTER™ suitable for logistics facilities, agricultural sites, mining operations, construction yards, and other environments that require a practical and cost-effective weighbridge solution.
Each OTTER™ module is fabricated with tight dimensional tolerances to ensure consistent fit and stable alignment during installation. The deck sections are pre-cambered to maintain flatness under load, and all structural seams receive full welding for long-term rigidity. Surface preparation and coating follow established industrial standards. Deck modules are bead blasted to SA 2.5 and coated with an epoxy primer and protective top layer for corrosion resistance in outdoor environments. Optional galvanization is available for sites with higher moisture/chemical exposure or seasonal weather extremes.
The OTTER™ uses ANYLOAD’s OIML-certified rocker column canister load cells and supports a broad selection of indicators and peripherals, allowing dealers and integrators to configure systems suited to local regulatory and operational needs. The result is a versatile and proven truck scale that delivers solid performance with a focus on value, serviceability, and ease of deployment.
Features
- Heavy-duty construction for harsh climate and load conditions
- Orthotropic deep U-channel steel deck for superior strength and rigidity
- Full-length continuous welded seams for maximum longevity
- Full-scale automated omni-jet steel abrasive blasting (shot + grit) to SA2.5, coated with high solids polyurethane primer-finish system, oven-cured
Specifications
| Approvals | OIML Load Cell Approval 106HS |
|---|---|
| Load Cell | ANYLOAD 106HS Stainless Steel OIML C3 Analog Rocker Column Canister (30t or 40t Capacity) |
| Junction Box | ANYLOAD J06SS Stainless Steel |
| Standard Dimensions | 2.98 m to 3.4 m width — 7 m to 48 m length |
| Concentrated Load Capacity | 40t |
| Dual Tandem Axle (DTA) | 40t |
| Warranty | 10 Years OTTER™ Limited Manufacturer’s Warranty |

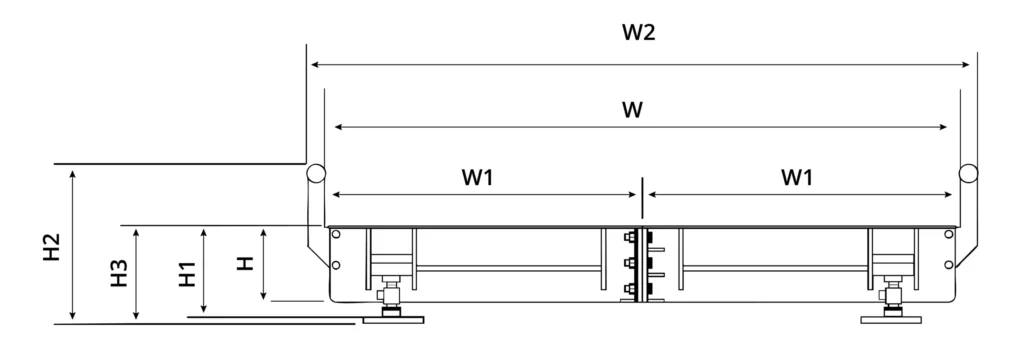

Dimensions
| HEIGHT | ||||
|---|---|---|---|---|
| H | H1 | H2 | H3 | |
| 370 mm | 440 mm | 700 mm | 460 mm | |
| WIDTH | ||||
| W | W1 | W2 | ||
| 2.98 m | 1.49 m | 3.18 m | ||
| 3.0 m | 1.50 m | 3.2 m | ||
| 3.4 m | 1.70 m | 3.60 m | ||
Disclaimer: Dimensions and specifications are nominal, rounded to the nearest 2 mm, and provided for reference only. For all design, fabrication, or installation work, refer exclusively to the certified control drawings supplied with your quotation — these define the governing dimensions and tolerances. Dimensional reporting follows ASME Y14.100 and ASTM A6 conventions for structural steel fabrication. ANYLOAD reserves the right to revise specifications without prior notice.
What’s the difference between ORCA™ and OTTER™?
Both the ORCA™ and OTTER™ truck scales use ANYLOAD’s advanced orthotropic U-channel deck construction for superior strength and accuracy. The ORCA™ is our premium model, designed for long-term North American installations where uptime, load capacity, and service accessibility are critical. The OTTER™ shares the same structural concept but is optimized for global and modular applications, where versatility and weight efficiency are the primary requirements. ORCA™ offers heavier construction, more reinforcement, and additional design features focused on serviceability, longevity, and precision.
What applications are the ORCA™ and OTTER™ truck scales designed for?
The ORCA™ and OTTER™ Steel Deck Truck Scales are designed for demanding vehicle weighing applications such as construction, logistics, mining, and aggregate operations. Its orthotropic U-channel structure, reinforced crossmembers, and pre-cambered deck provide exceptional strength and accuracy under heavy, repeated axle loads.
What industries use the ORCA™ and OTTER™ truck scale?
The ORCA™ and OTTER™ are trusted in industries that demand dependable, accurate weighing under heavy loads and tough environmental conditions. Typical applications include construction, aggregate and quarry operations, agriculture, waste management, logistics and transportation, mining, energy, forestry, manufacturing, and bulk material handling. ANYLOAD’s long history serving these sectors means we understand the unique requirements of each—whether it’s corrosion protection for coastal use, extreme temperature resilience in northern climates, or long-term stability for high-throughput operations.
Can the ORCA™ and OTTER™ be customized?
Yes. ANYLOAD offers a wide range of deck lengths, widths, and configurations, including permanent and portable versions. Customized dimensions and specifications to meet existing infrastructure or performance requirements can be provided. Options such as galvanized or stainless steel weighbridges, ramps, guardrails, and intrinsic-safety electronics are available to meet specific site requirements. See our Custom Foundation Form and our Truck Scale Configuration Form.
Are technical drawings or CAD models available?
Yes. ANYLOAD provides detailed scale and foundation drawings upon request to assist with site preparation and civil work. For design engineers and planners, .STEP and CAD files are also available to support accurate project modeling, integration with existing infrastructure, and approval processes. Contact us for more information.
Does ANYLOAD offer other vehicle weighing solutions besides truck scales?
Yes. In addition to the ORCA™ and OTTER™ steel deck truck scale, ANYLOAD provide a complete range of vehicle weighing solutions to meet different operational needs. Our offerings include portable axle weigh pads for quick on-site checks, industrial-grade axle scales for semi-permanent installations, and onboard weighing solutions that integrate sensors directly into vehicles for real-time load monitoring. This broad product range allows us to deliver solutions for fleet logistics, enforcement, construction, agriculture, and transport operations, ensuring accurate and efficient weighing wherever vehicles operate. Read more in our Guide to Truck Scales article.
What maintenance does the OTTER™ require?
Routine inspection and cleaning of the deck surface, load cell pockets, and cabling are generally sufficient. The sealed, continuous-weld design minimizes internal corrosion and the need for frequent adjustments. Preventive maintenance schedules can be customized by your authorized dealer based on site conditions.
ANYLOAD truck scales are sold exclusively through authorized scale dealers qualified to install and service OTTER™ truck scales. Quotations are provided by these dealers, who also handle site installation and service. Interested buyers are welcome to contact ANYLOAD directly for more information or to be connected with an authorized dealer in their area.
