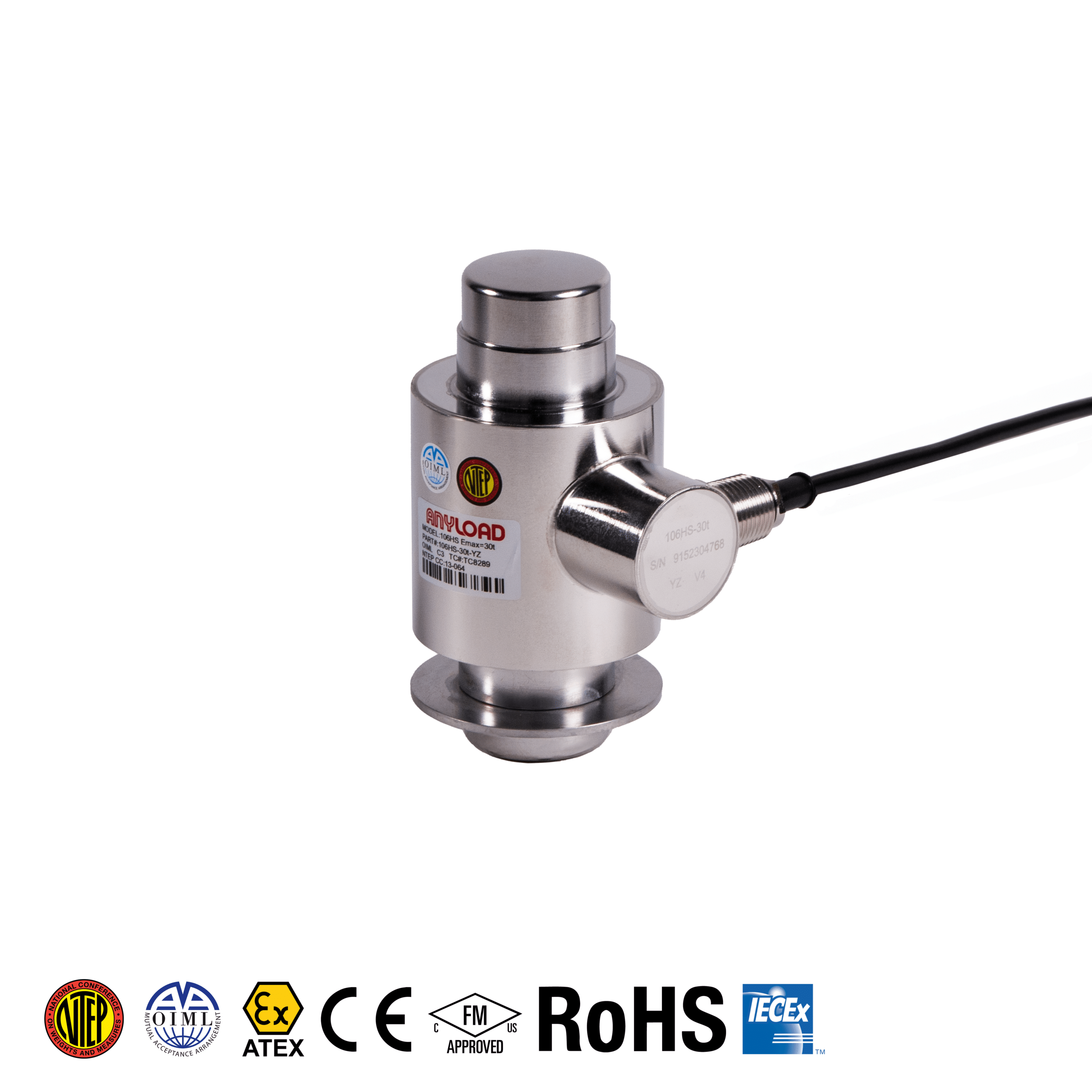

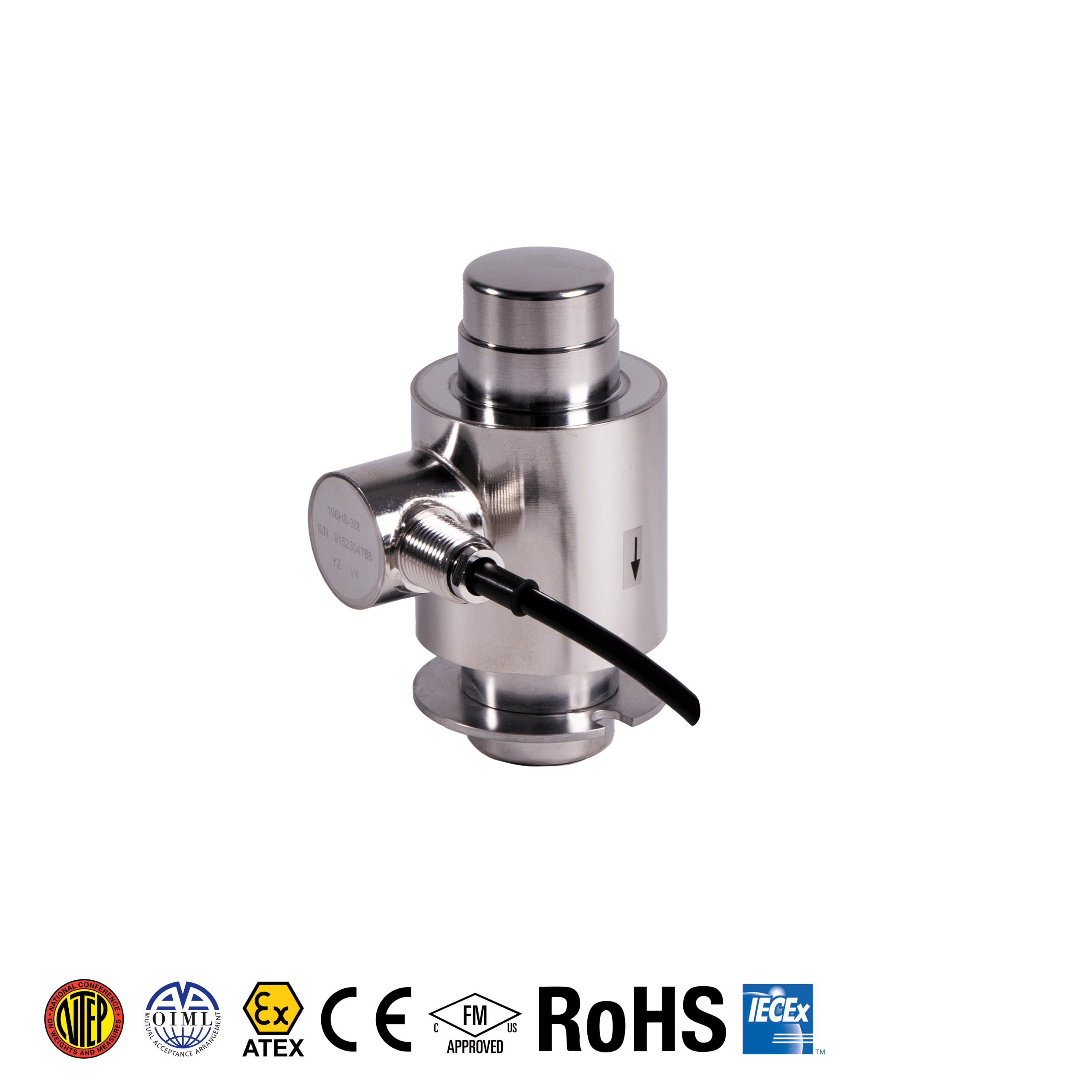

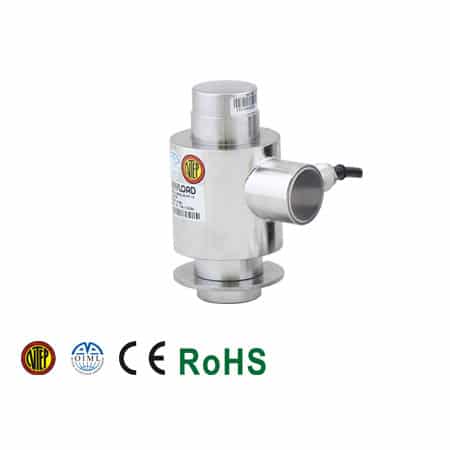

106HS Canister Load Cell, Stainless Steel, Welded Seal, IP68

106HS Canister Load Cell

  • Material: Stainless steel
  • Rated Capacities: 20t, 30t, 40t
  • Full Scale Output: 2mV/V ± 0.25%
  • Safe Overload: 150%
  • Breaking Overload:  300%
  • IP Rating: IP68
  • NTEP 1:10 000 Class IIIL, Multiple Cell certified from 10t-50t
  • OIML  MAA C3, Y=16 000 certified from 10t-50t
  • CE and RoHS certified
Clear
Product Enquiry
SKU: N/A Categories: ,
Rated Capacity 20t, 30t, 40t
Full Scale Output 2mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.023%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.030%
Input Resistance 700Ω ± 20Ω
Output Resistance 705Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

pdf- Download data sheet

pdf- 106HS,(20-40)t

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

Manufacturer Model
Coti Global CG-26S4
HBM C16*
Vishay Revere Transducers ASC**



* HBM C16 is interchangeable with ANYLOAD 106HS with or without the mounting hardware

** ANYLOAD 106HS with mounts is interchangeable with Vishay Revere Transducers ASC with mounts.  Without mounts, the load cells are not interchangeable.
