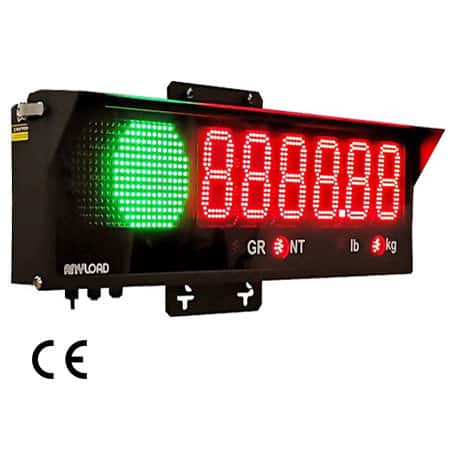

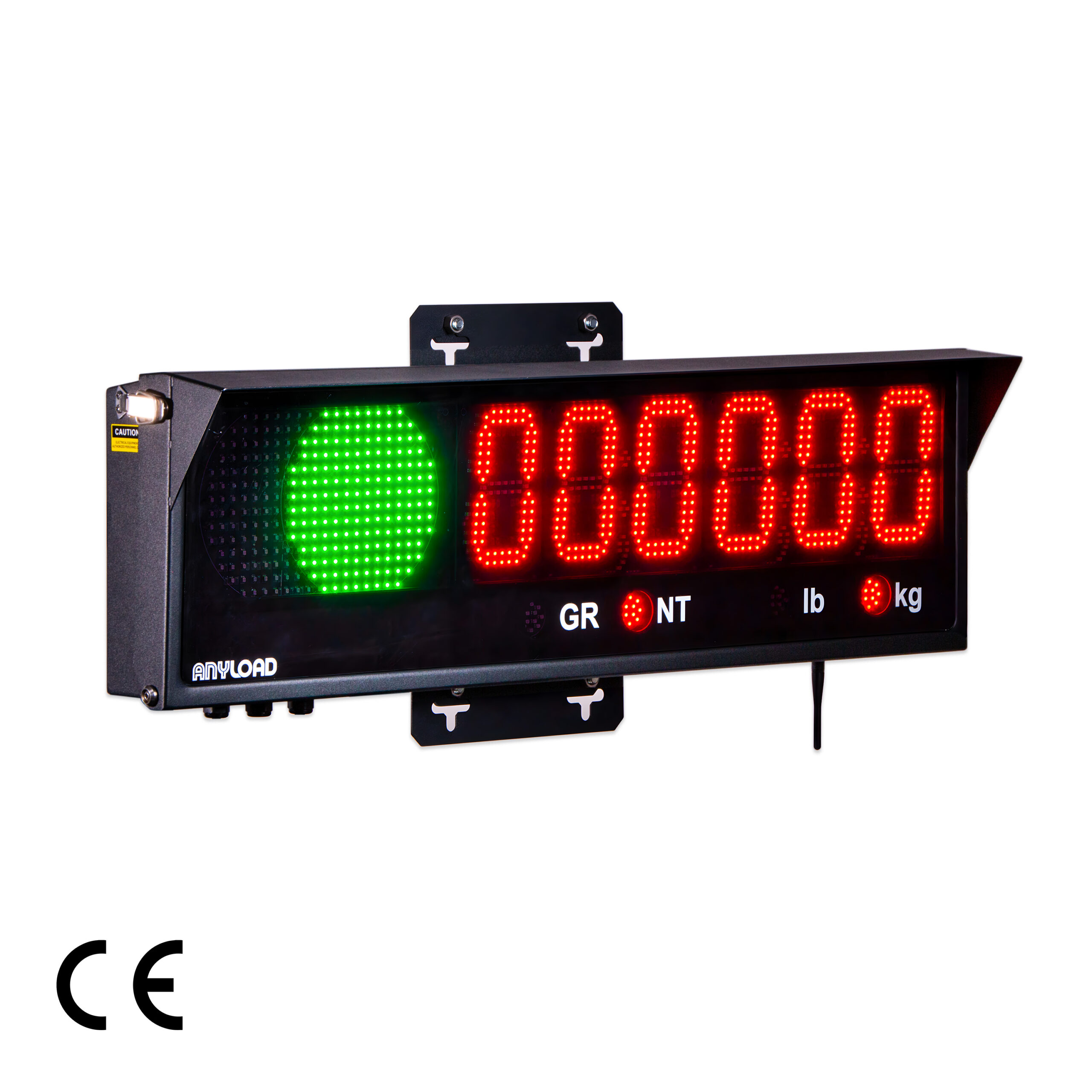

808BH Remote Display 5” with Built-in Traffic Light

The ANYLOAD 808BH are newest generation industrial remote displays designed to be versatile, rugged, durable, and easy to install:

Great Visibility:

  • Built-in Red & Green Light
  • Double-row discrete LED
  • 6 digits, 5” height, 7 segment
  • Wide viewing 120° angle
  • Auto brightness adjustment
  • Mirror display

RED / GREEN Lane Control:

  • Using two manual input switches in solid or blinking modes
  • Using several pre-installed software utility programs
  • Using serial ASCII commands sent by programmable indicators
  • Using special custom ordered software protocols

Smart Auto-Learn Technology:

  • Automatically detect indicator string protocols
  • Automatically set communication baud rates

Communication:

  • Input: Independent RS232, RS422, RS485, 20mA Current Loop (active or passive)
  • Output: Echo out and addressable multi display configuration

Service Friendly:

  • Modular design
  • External membrane keypad
  • Hinged front cover
  • Pivoting internal electronics plates
  • Wireless option with WL900 Wireless Transceiver

Enclosure:

  • Weather proof design
  • Visor to protect from sun or rain shade
  • Wall & Pole mount kit
  • Breather vent
Display Digits 5” (125mm) height, 6 digits, 7 segments, with 6″ (150mm) RED/GREEN balls
Digit Segments 1500mcd high intensity brightness, 120° viewing angle, discrete red CREE® LED
Micro Controller 50MHZ ARM Cortex M® processor
Status Indication 4 annunciators for GR, NT, lb and kg (some versions in kg and t)
Decimal Point 2 decimal point places with choice of dot or coma
Membrane Keypad 4 keys dome membrane keypad
Brightness Control 550nm ambient light sensor to adjust brightness in day and night
Communication Ports 3 independent serial ports for RS232, RS422/RS485, and 20mA current loop
Communication Baud Auto learn 300,600,1200,2400,4800,9600,19200,38400,57600 baud rate
String Protocol Auto learn to detect string protocol and parse incoming string
Echo Port 2 independent serial ports for RS232 and RS422/RS485
Printer Port 1 independent transmit port for none legal for trade printing applications
Digital Output 1 form C relay output rated at 2A / 60VDC
Digital inputs 2 independent dry contact switch inputs
Main Enclosure Mild steel powder coated NEMA 4 / IP65 weather proof suitable for outdoor applications
Power Supply Input: 100-240VAC, 1.2A, 50/60Hz / output: 12VDC, 5.0A, 60W encapsulated
Power Consumption 120VAC @ 0.7A / 12VDC @ 3.0A ( 75W AC / 35W DC ) typical
Operating Temperature -40°F to 120°F (-40°C to 50°C)
Operating Humidity 20%RH to 90%RH
Enclosure Ventilation GORE ® breather vent to avoid condensation
Physical Dimensions 32.5” W X 9.8” H X 3.5” D (825mm X 250mm X 89mm) or 36.1” W X 13.7” H X 5.9” D (918mm X 348mm X 149mm) – mounting brackets & canopy included
Total Weight 12.5 kg (27 lb) main unit and 1.5 kg (3 lb) mounting kits, approximately
Industry Approvals UL/CSA approved class II power supply
Certification of Conformity CE Marking, EMC and LVD Directives
