ANYLOAD | 808AH Remote Display

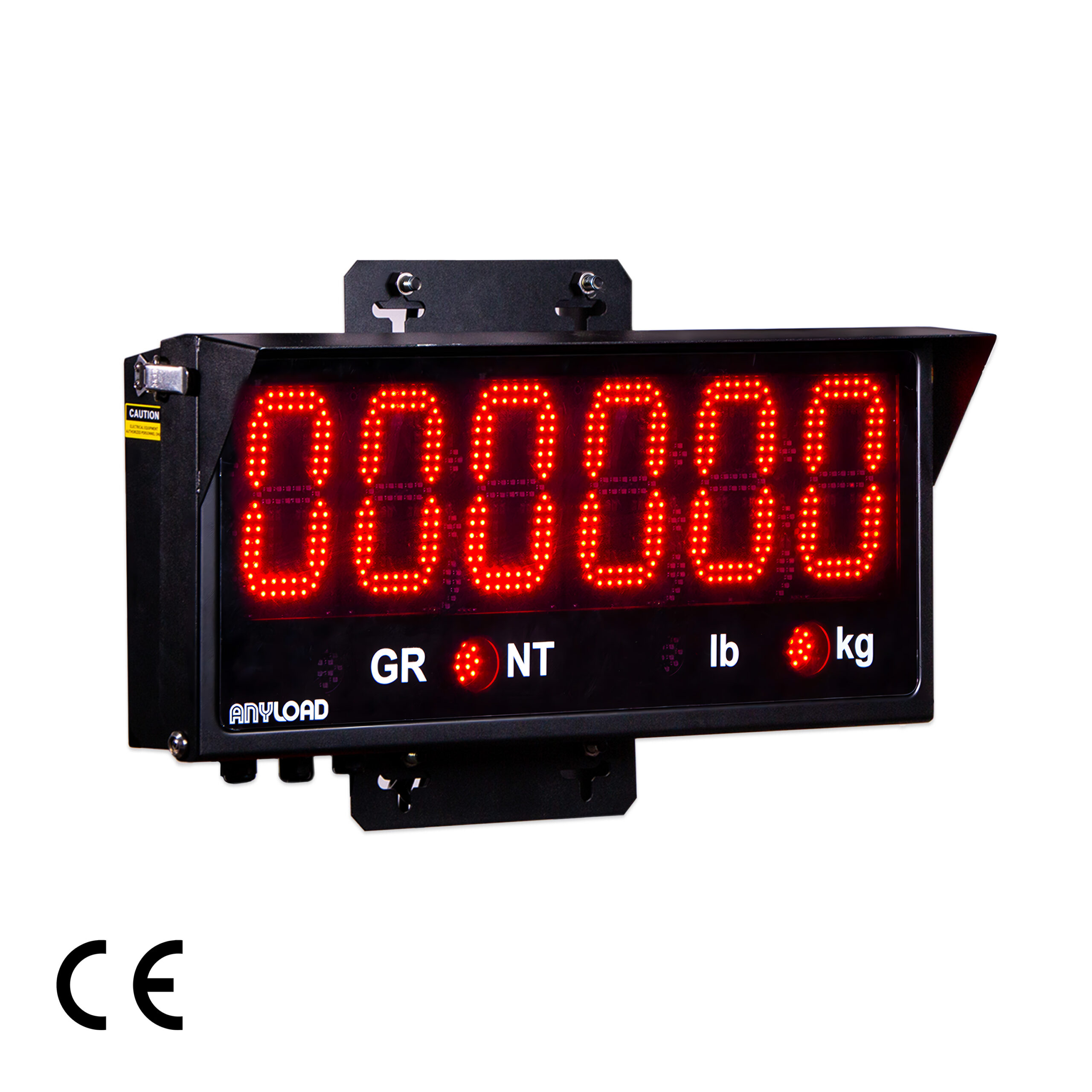

808AH Remote Display 5” Standard Model

The ANYLOAD 808AH are newest generation industrial remote displays designed to be versatile, rugged, durable, and easy to install. They are incorporated with Auto-Learn communication and protocol feature for compatibility with wide range of indicators and weighing instruments.

  • Six 5” (125mm) tall digits LED industrial remote display
  • High intensity, wide viewing angle discrete LEDs
  • Standard seven segments
  • Automatic learn mode to set communication baud rates
  • Automatic learn mode to detect incoming strings format
  • Ambient light sensor for day and night brightness control
  • Adjustable brightness settings for day and night
  • Software configuration for custom string formats
  • Menu driven setup function using a membrane keypad
  • Switch inputs and a relay output module to control traffic light
  • Customized software utility programs
  • Customized addressable configuration
  • Up to two decimal places with choice of dot or comma
  • Reverse digits mode for visibility in mirrors
  • Standard wall mount and pole mount kits
  • Standard sun visor and rain shade
  • Indication of GROSS (GR) or NET (NT) status by annunciators
  • Indication of KG (kg) or LB (lb) units by annunciators
  • Independent ESD protected RS232, RS422/RS485 and 20mA
  • Echo out port for RS-232 and RS-422/RS-485
  • Metal enclosure with hinged front cover for easy service
  • Grey front safety glass
  • Weather proof mild steel powder coated enclosure
  • Internal folding electronic plate for easy wiring
  • CE Marked, EMC and LVD Directives Conformity
  • UL/CSA approved encapsulated multi sense voltage power supply
  • Breather ventilation to avoid condensation inside enclosure
  • Wireless option with WL900 Wireless Transceiver
Product Enquiry
Display Digits 5” (125mm) height, 6 digits, 7 segments
Digit Segments 1500mcd high intensity brightness, 120° viewing angle, discrete red CREE® LED
Micro Controller 50MHZ ARM Cortex M® processor
Status Indication 4 annunciators for GR, NT, lb and kg (some versions in kg and t)
Decimal Point 2 decimal point places with choice of dot or coma
Membrane Keypad 4 keys dome membrane keypad
Brightness Control 550nm ambient light sensor to adjust brightness in day and night
Communication Ports 3 independent serial ports for RS232, RS422/RS485, and 20mA current loop
Communication Baud Auto learn 300,600,1200,2400,4800,9600,19200,38400,57600 baud rate
String Protocol Auto learn to detect string protocol and parse incoming string
Echo Port 2 independent serial ports for RS232 and RS422/RS485
Printer Port 1 independent transmit port for none legal for trade printing applications
Digital Output 1 form C relay output rated at 2A / 60VDC
Digital inputs 2 independent dry contact switch inputs
Main Enclosure Mild steel powder coated NEMA 4 / IP65 weather proof suitable for outdoor applications
Power Supply Input: 100-240VAC, 1.2A, 50/60Hz / output: 12VDC, 5.0A, 60W encapsulated
Power Consumption 120VAC @ 0.5A / 12VDC @ 2.5A ( 60W AC / 30W DC ) typical
Operating Temperature -40°F to 120°F (-40°C to 50°C)
Operating Humidity 20%RH to 90%RH
Enclosure Ventilation GORE ® breather vent to avoid condensation
Physical Dimensions 22.2” W X 9.8” H X 3.5” D (565mm X 250mm X 89mm) or 25.9” W X 13.7” H X 5.9” D (658mm X 348mm X 149mm) - mounting brackets & canopy included
Total Weight 7.5 kg (17 lb) main unit and 1.5 kg (3 lb) mounting kits, approximately
Industry Approvals UL/CSA approved class II power supply
Certification of Conformity CE Marking, EMC and LVD Directives
