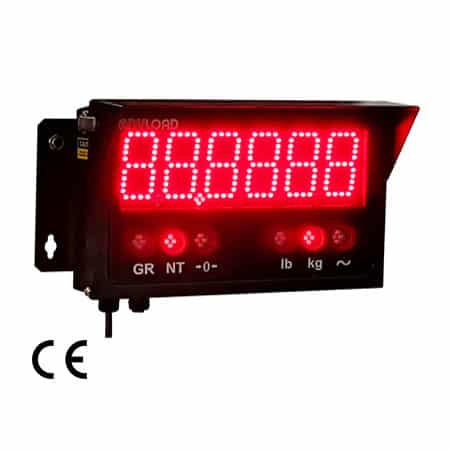

808CH Remote Display 2.5” Compact Model

The ANYLOAD 808CH are newest generation industrial remote displays designed to be versatile, rugged, durable, and easy to install:

Great Visibility:

  • Single-row discrete LED
  • 6 digits, 2.5” height, 7 segment
  • Wide viewing 120° angle
  • Two levels brightness adjustment
  • Mirror display
  • Grey front safety glass

Auto-Learn Technology:

  • Automatically detect indicator string protocols
  • Automatically set communication baud rates

Multiport Communication:

  • Input: Independent RS232, RS422, RS485, 20mA Current Loop (active or passive)
  • Output: Echo out and addressable multi display configuration
  • Switch inputs and relay output to control traffic lights
  • Lightning ESD protection for communication lines

Service Friendly:

  • Modular Design
  • External membrane keypad
  • Hinged front cover
  • Onboard diagnostic lights for trouble shooting
  • 100~240VAC internal encapsulated UL/CSA power supply
  • Wireless option with WL900 Wireless Transceiver

Enclosure:

  • Weather proof powder coated mild steel enclosure
  • Visor to protect from sun or rain shade
  • Wall mounting on the back
  • GORE breather vent
Display Digits 2.5” (65mm) height, 6 digits, 7 segments
Display Visibility Max 25m(100ft) @1500mcd, 120 angle
Micro Controller 50MHZ ARM Cortex M® processor
Status Indication 4 annunciators for GR, NT, lb and kg (some versions in kg and t), and 2 annunciators for motion and zero
Decimal Point 2 decimal point places with choice of dot or coma
Membrane Keypad 4 keys dome membrane keypad
Brightness Control Ambient light sensor to adjust brightness in day and night
Communication Ports 3 independent serial ports for RS232, RS422/RS485, and 20mA current loop
Communication Baud Auto learn 300,600,1200,2400,4800,9600,19200,38400,57600 baud rate
String Protocol Auto learn to detect string protocol and parse incoming string
Echo Port 2 independent serial ports for RS232 and RS422/RS485
Printer Port 1 independent transmit port for none legal for trade printing applications
Input and Output 2 dry contact switches and 1 form C relay
Main Enclosure Powder coated mild steel(IP65)
Power Supply 100-240VAC, 1.1A, 50/ 60Hz, UL approved
Operating Temperature -40°F to 120°F (-40°C to 50°C)
Operating Humidity 20%RH to 90%RH
Enclosure Ventilation GORE ® breather vent to avoid condensation
Physical Dimensions 296mm X 191mm X 67mm (11.65” X 7.52” X 2.64”) or 353mm X 191mm X 116.8mm (13.90” X 7.52” X 4.60”) – mounting brackets & canopy included
Total Weight 6.4 kg (14 lb), approximately
Industry Approvals UL/CSA approved class II power supply
Certification of Conformity CE Marking, EMC and LVD Directives
