ANYLOAD | 805HP Handheld Digital Weight Indicator

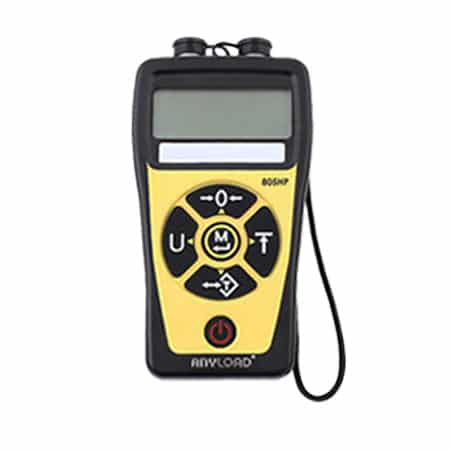

805HP Hand Held Digital Indicator

The ANYLOAD 805HP hand held digital indicator is a general purpose durable indicator and a force measurement device that provides high accuracy, reliability, and multiple functions. The 805HP can drive up to eight (8) 350Ω or thirty two (32) 1000Ω load cells with a Junction Box.  With an IP65 ABS wash down enclosure, the 805HP digital indicator is ideal for use in Transportation, Entertainment, Aerospace, Military, Food and Agricultural industry.

  • Exceptionally long battery life: up to 1,600 hours with 3-AA batteries
  • LED backlight and panoramic FSTN LCD view angle
  • Material: ABS
  • IP Rating: IP65
  • LCD 6-digit display with LED backlight
  • Non-volatile memory for reliable data saving
  • Units of Measurement: kg, g, t, lb, Klb, N, kN, oz, user-defined unit
  • Configurable 2 set-points for precaution and warning
  • User-selectable display interval
  • Overloading recording
  • 10 user-selectable analog-to-digital converting frequency
  • Weight calibration and digital calibration
  • User-selectable auto power-off and power-saving timing
  • Functions:Auto-Zero Tracking, Auto-Zero, Manual-Zero, Hold, Peak-Hold, TARE



Clear
Product Enquiry
Enclosure Material ABS
Units of Measurement kg, g, t, lb, Klb, N, kN, oz, user-defined unit
Working Humidity ≤90% RH
Working Temperature -20°C to 70°C/-4°F to 158°F
Dimensions (mm) 170mm x 98mm x 34mm
Dimensions (in) 6.7in x 3.9in x 1.34in
Display Type LCD
Display Digits 6 digits
Digit Height 16.8mm/0.66in
Display Dimensions 72mm x 27mm/2.8in x 1.1in
Power Supply 3* AA Alkaline Batteries
IP Rating IP65
Division 0.001; 0.002; 0.005; 0.01; 0.02; 0.05; 0.1; 0.2; 0.5; 1; 2; 5; 10; 20; 50
Tare Range 100% of Full Scale
Maximum Number of Load Cells 8×350Ω or 32×1000Ω ( with a junction box )
Maximum Power Consumption 5mW
Communication Interface None (RS-232 can be added upon request)
Auto Zero Tracking Yes
Auto Zero / Manual Zero Yes
Hold / Peak Hold Yes
Tare Yes
Gross/Net Yes
Overload warning and alarm Yes
Single and multi-point calibration Yes
Weight and Digit calibration Yes
Resolution Switch ( 0.001 to 50 ) Yes
Available units can be enabled/disabled: kg/g/t/oz/N/kN/lb/klb/User's unit Yes
Backlight-off set ( Power Saving ) Yes
Auto-off set Yes
Idle set Yes
Battery Saving set Yes
Accumulate weighing values Yes

pdf- Download data sheet

 pdf- Download manual ( Software Version 2.18 )

pdf-Calibration Tutorial Video

pdf-User Settings Video
