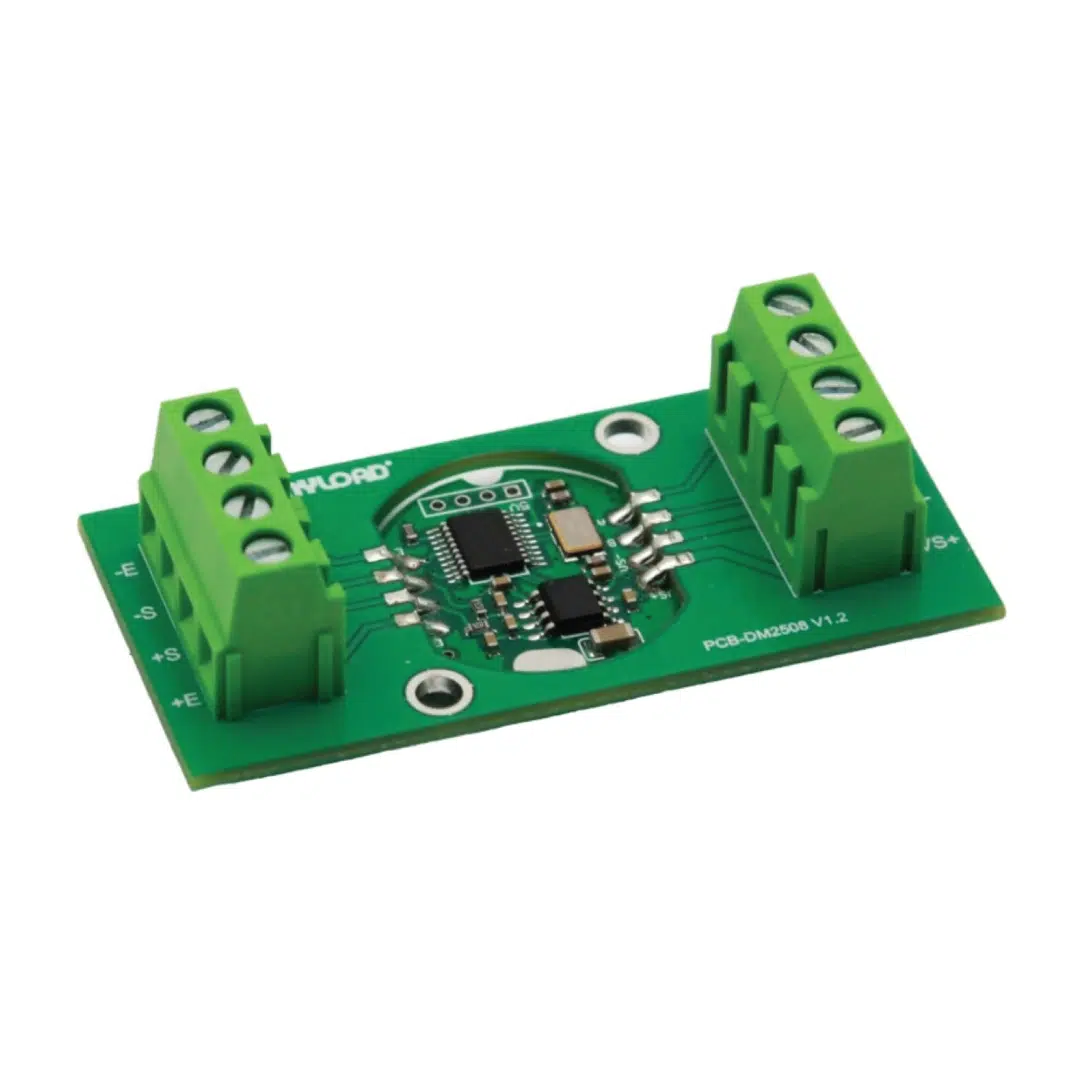

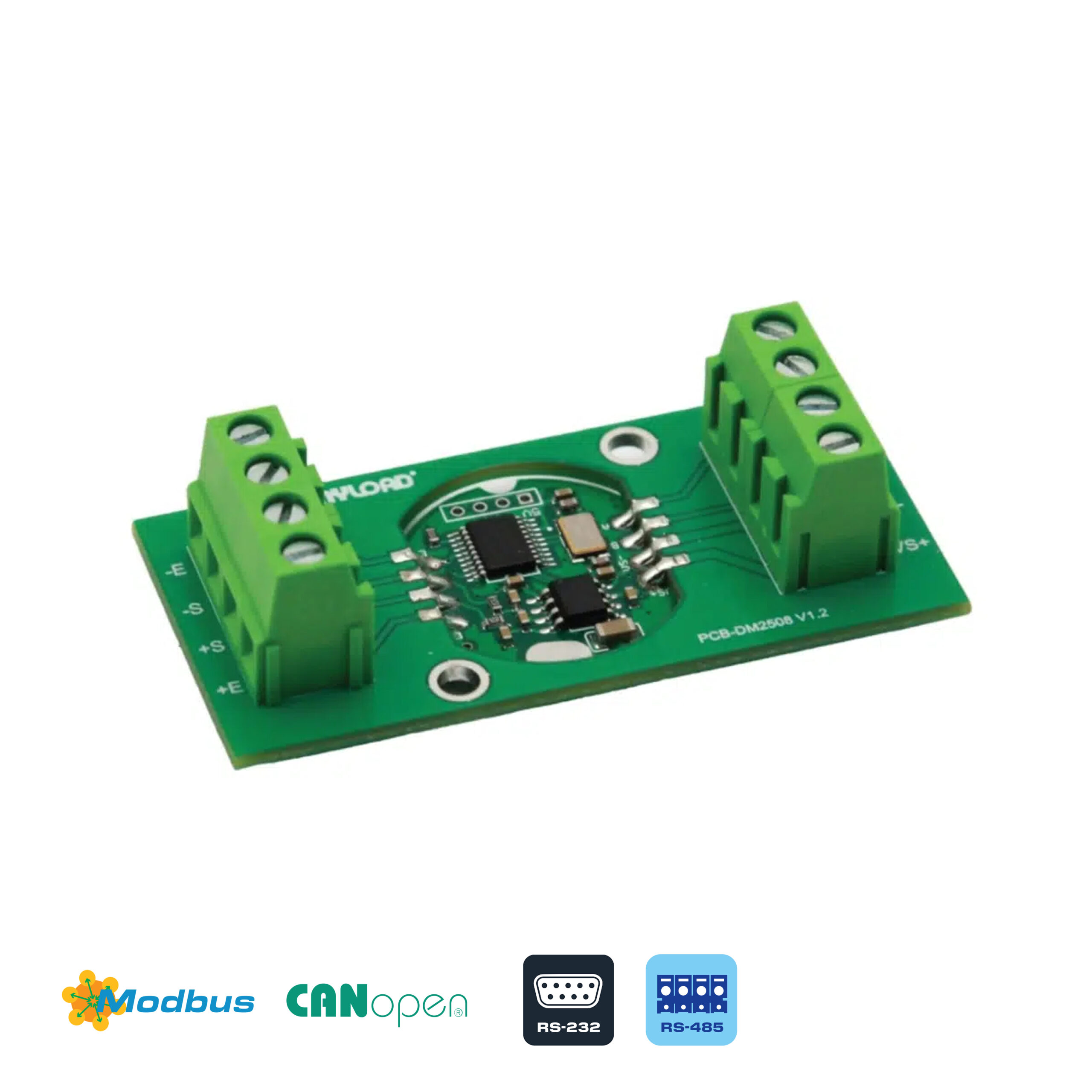

DGB-D Digiboard, Digital Amplifier

Features:
    • One input port, can connect directly to 1×350Ω load cell, or max 4×350Ω (or higher resistance) load cells through a junction box
    • 24 bit A/D Converter, high speed processor
    • Internal digital filter and strong anti-interference ability
    • Can perform up to 9 point linear calibration
    • Applied to all kinds of strain gauge bridge-type load cell, such as, tension, compression, torque and so on
    • Reverse polarity protection
    • The chip is 24.6mm in diameter and can be embedded within load cells, making the load cells have built-in analog signal amplification
    • Software is used for calibration
    • DGB-D Chips can be integrated into load cells for built-in digital signal conditioning/transmission (special order required)
Power Supply 9-24 V DC
Power Consumption 0.36 W @12 V DC
Input Range 0.8-3.9 mV/V
Excitation voltage to load cell 5 V DC
Working Temperature -22°F – 122°F / -30°C – 50°C
Output Signal RS-232 (DGB-DM2507B) \ RS-485 (DGB-DM2508B) \ CAN Bus (DGB-DC2508B)
Non-linearity ≤0.01%
Temperature Coefficient < ≤100 ppm/ °C
