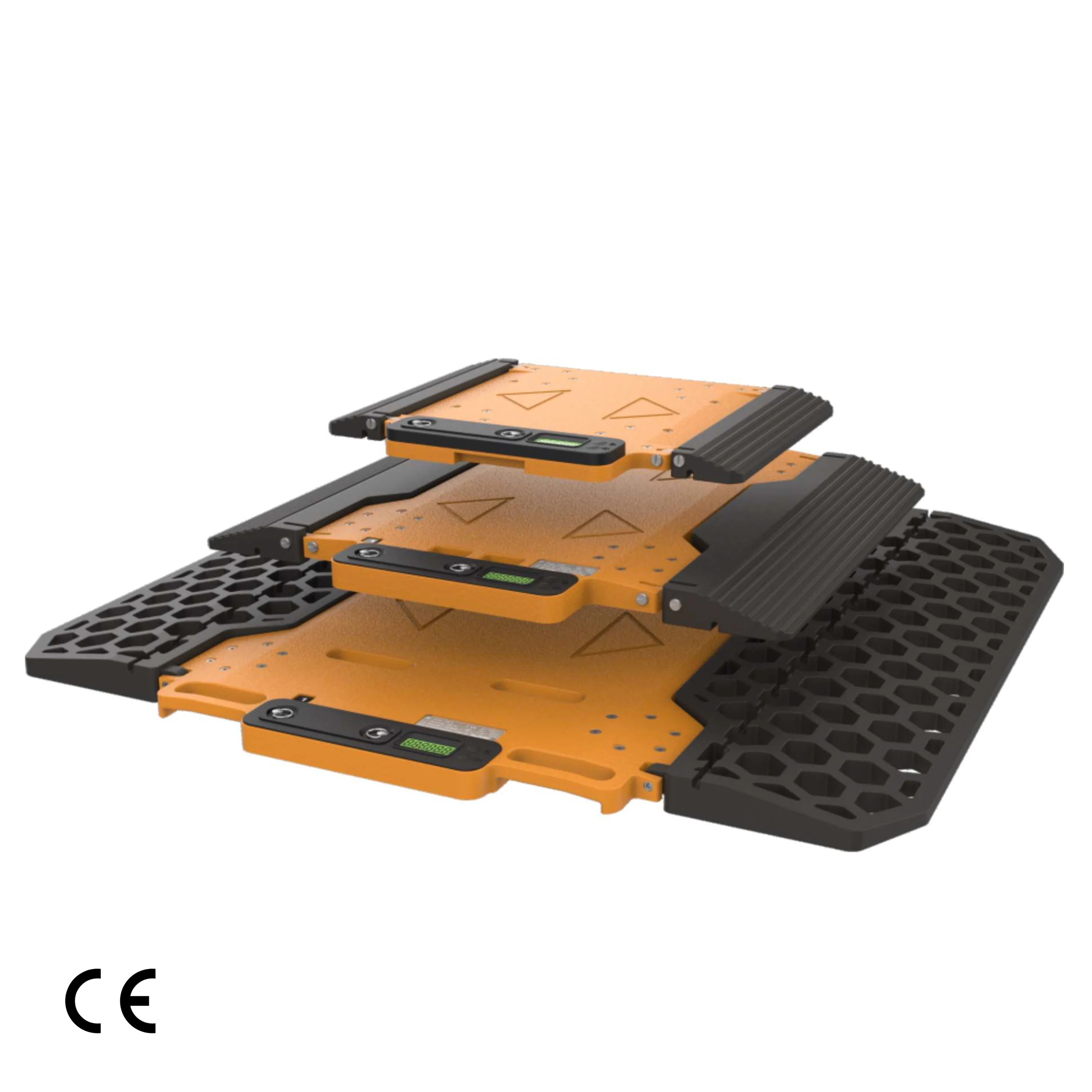

AXA Axle Weigh Pads
AXA Axle Weigh Pads provide fast, convenient vehicle weighing in any location. The rugged, low-profile design is IP68-rated, exceptionally durable, and engineered for long-term field performance. Paired with the ANYLOAD AN560, the system supports weigh-in-motion, center-of-gravity mode, and delivers over 600 hours of battery life. Trusted by professionals in aviation, enforcement, and fleet logistics when failure isn’t an option.
- Replaceable & Rechargeable battery with long operating life
- Weigh-in-motion (WIM) support on AXA-8 model
- 6-digit LCD with LED backlight for clear weight display
- Two robust capacitive touch switches for easy operation
- Zigbee wireless communication for reliable, cable-free setup
- High Durability IP68-rated aluminum body with hammer-tone coating
- Up to 600 hours of continuous use per charge (model dependent)
- Compact and portable-ideal for mobile axle weighing applications
Features
- Replaceable & Rechargeable battery with long operating life
- Weigh-in-motion (WIM) support on AXA-8 model
- 6-digit LCD with LED backlight for clear weight display
- Two robust capacitive touch switches for easy operation
- Zigbee wireless communication for reliable, cable-free setup
- High Durability IP68-rated aluminum body with hammer-tone coating
- Up to 600 hours of continuous use per charge (model dependent)
- Compact and portable-ideal for mobile axle weighing applications
Specifications
| Model | AXA-3 | AXA-5 | AXA-8 |
|---|---|---|---|
| Capacity (ton/lb) | 0.5t / 1t / 2t (1Klb / 2Klb / 4Klb) | 3t / 5t (6Klb / 11Klb) | 10t / 15t / 20t (22Klb / 33Klb / 44Klb) |
| Division (kg/lb) | 0.2kg / 0.5kg / 1kg (0.5lb / 1lb / 2lb) | 1kg / 2kg (2lb / 5lb) | 10kg / 10kg / 10kg (20lb / 20lb / 20lb) |
| Product Weight (Approx.) | 6kg / 13lb (Include Ramp Weight) | 16kg / 35lb (Include Ramp Weight) | 19kg / 42lb (Exclude Ramp Weight) |
| Platform Size (mm/in) | 305×305 / 12″ x 12″ | 500×370 / 19¾” x 14½” | 800×500 / 12½” x 12¾” |
| Platform Height (mm/in) | 24.5 / 1″ | 33 / 1⅜” | 33 / 1⅜” |
| WIM Speed | n/a | n/a | 10kph / 6mph or less |
| WIM Accuracy | n/a | n/a | ±0.2%-±0.6% |
| Display | 6-digit FSTN LCD (11mm / 1/2in) with LED backlight | ||
| Operating Switch | 2 capacitive touch switches | ||

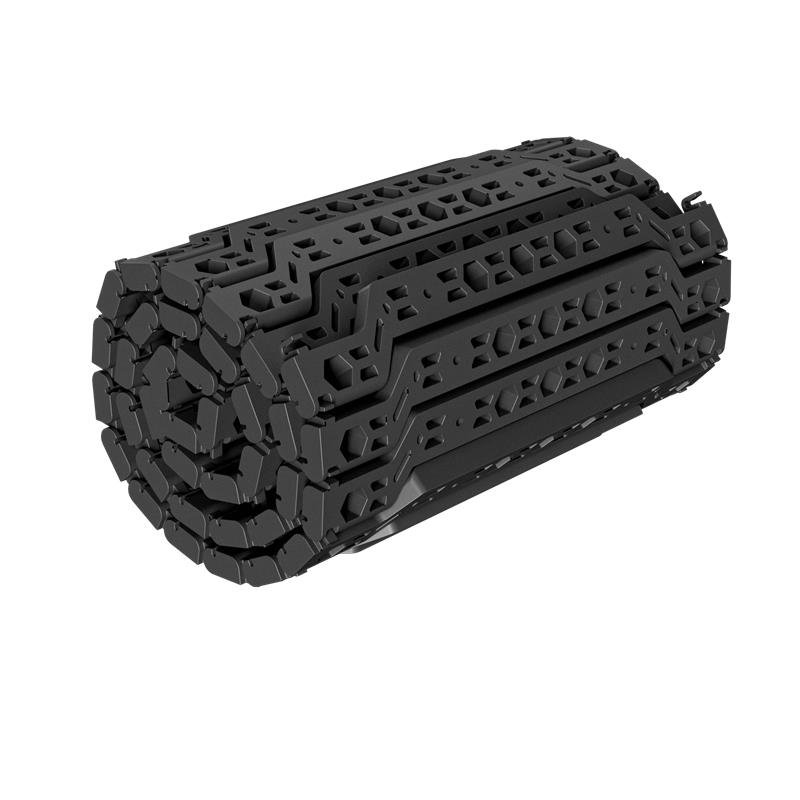

| Ramp (Dummy) Material | Urethane | ||
| Front Cover Material | Polycarbonate | ||
| Body Material | Aluminum with hammer-tone powder coating | ||
| Wireless Method | Zigbee | ||
| Ingress Protection | IP68 | ||
| Battery | Rechargeable 18650 Li-ion with PCM (Protection Circuit Module) | ||
| Charger | 100 to 240VAC, 60Hz | ||
| Operating Time | Continuous use: approximately up to 600 hours | ||
| Operating Temperature | -20°C to 60°C (-4°F~140°F) | ||
| Operating Humidity | 85% Relative Humidity, no condensation | ||
Yes, on the AXA-8. It must be paired with the AN560 indicator as well as the extension pad set.
Yes. The AXA is powered by a single rechargeable 18650 battery, which is a standard Li-ion battery readily available in most hardware, electronics, and online retailers.
Yes. The AXA weigh pad is IP68 waterproof. Please follow all instructions in the service manual to maintain the ingress protection level.
Yes. The AXA is rated to perform down to a temperature of -20°C / -4°F. Battery life and responsiveness decline below this temperature. A specialized low-temp battery can be used to improve battery life below this operating temperature.
Yes, the AXA pads are sold individually to be paired with existing sets or for individual use.
We do not offer sets of weigh pads to rent. However, our dealers may carry rental kits of the AXA and AN560. Please contact us to be referred to a local provider.
No, there is an indicator and two button switches on each pad. While we recommend pairing the AXA with an AN560 for convenience and richer functionality, it is not required.
Yes, it is something that we can offer. Because of different form factor requirements, these are built-to-order depending on your specific application.
No. The accuracy level of weigh pads is not eligible for legal-for-trade in Canada. For NTEP Class IIII: Law Enforcement (only applicable in some U.S. states), we may apply if there is substantial interest, as we have tested our weigh pads to be able to perform at this standard. We do not recommend axle weigh pads for high-accuracy weighing purposes; for that, use at least an axle scale or ideally a weighbridge truck scale.
Yes, a service manual is available that details all the serviceable components of the weigh pad. Spare components will be available in ANYLOAD facilities.
Our local dealers can provide repair and calibration services.
Yes, demo units of the weigh pad and indicators may be provided upon request. Availability may vary.
Same as our other scales, the AXA and AN560 are covered under our standard 1-year manufacturer’s warranty.
The AXA-series and AN560 indicator products are designed and manufactured in South Korea. This product may ship from ANYLOAD facilities in Korea, China, Canada, or the U.S., depending on availability and logistical convenience.
Yes, but a minimum order quantity may apply. Please contact us for more information.
Please contact us directly. We encourage end-users to purchase the AXA weigh pads through a local vendor who can provide training, repair, rental, and calibration services. ANYLOAD has an extensive network of dealers across North America and internationally. We would be happy to refer you to your local authorized dealer.
