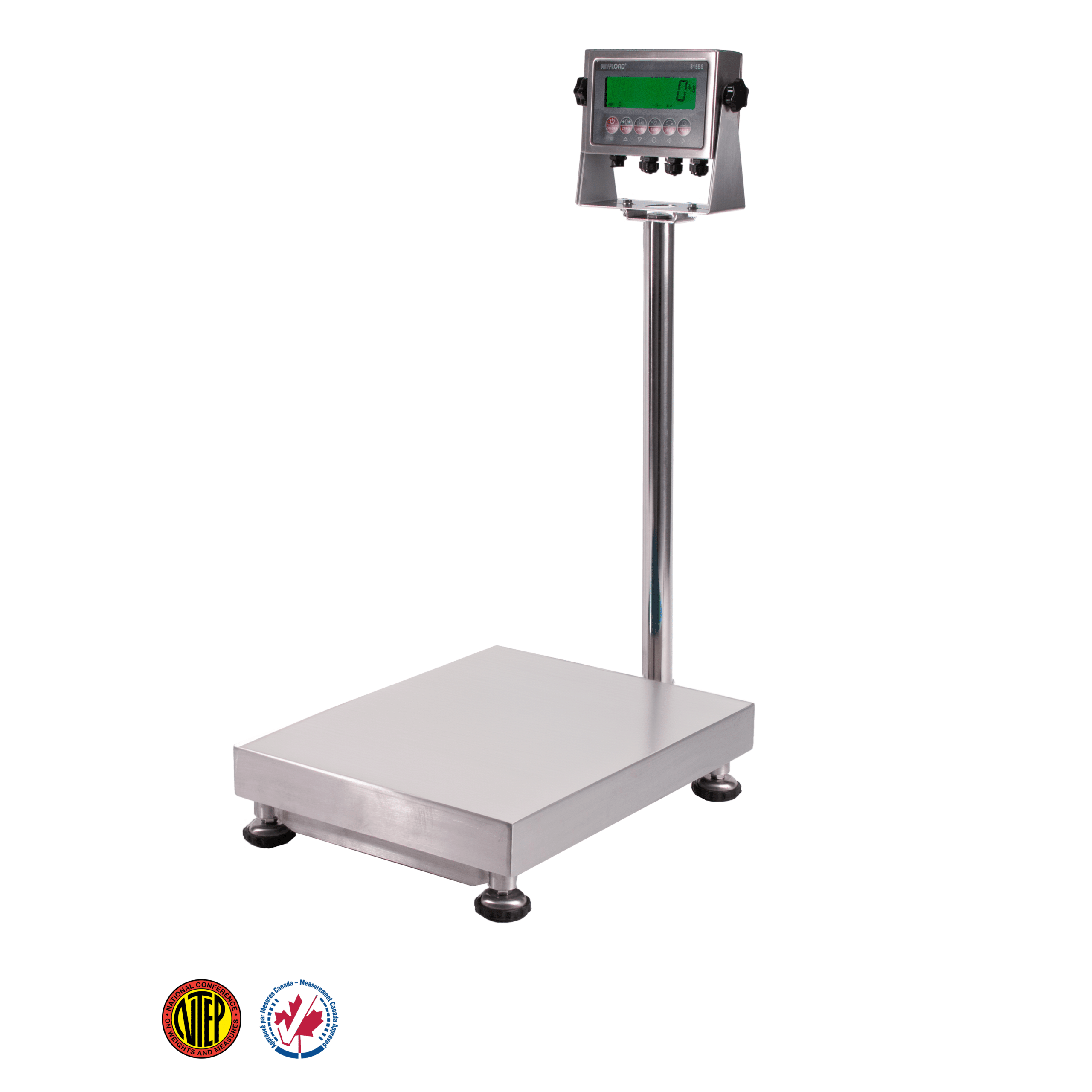

TNS Bench Scale

ANYLOAD TNS series bench scales are manufactured with a heavy gauge stainless steel construction and have a heavy gauge stainless steel pan.  The TNS series bench scales are supplied with aluminum load cells that are NTEP 1:4000 Class III, Single cell approved from 200kg – 2t as well as CE and RoHs certified.

  • Measurement Canada and NTEP certified, capacities from 15kg to 300kg, platform sizes from 12 inch x 12 inch to 24 inch x 24 inch
  • Heavy gauge stainless steel (SS304) construction
  • Heavy gauge stainless steel platform

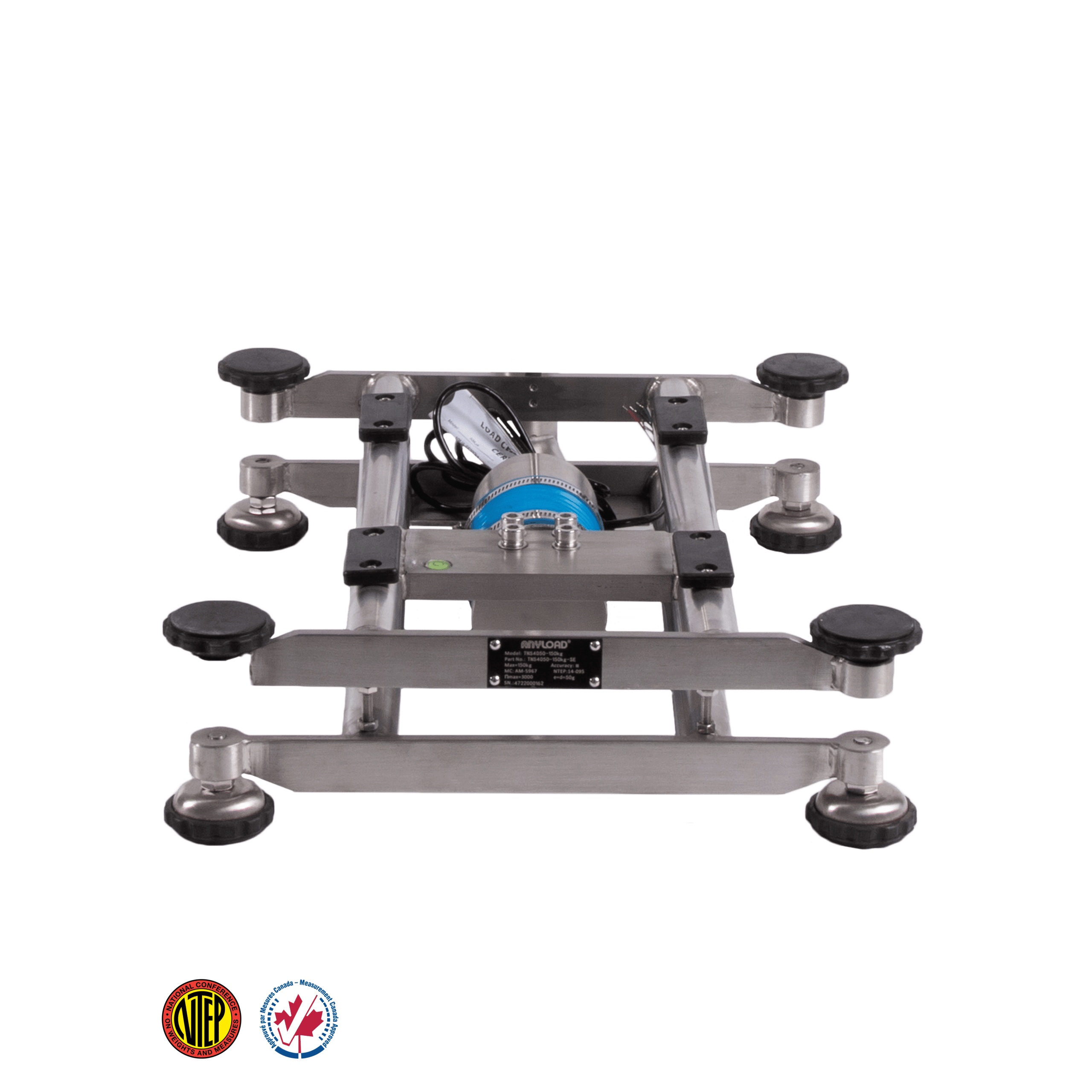

  • Supplied with bracket, column, column holder, level bubble and load cells
  • Breaking Overload: 150% of full scale
  • NTEP certified load cells from 200kg-400kg
  • CE, RoHs, Measurement Ukraine and Measurement Spain certified load cells
  • Indicator is sold separately
Models Platform Size Capacity
TNS3030 30cm x 30cm/11.81in x 11.81in 15kg, 30kg, 60kg
TNS4050 / TNS4050-LE / TNS4050-SE 40cm x 50cm/15.75in x 19.69in 60kg, 150kg, 300kg
TNS4646 / TNS4646-LE / TNS4660-SE 46cm x 46cm/18.11in x 18.11in 60kg, 150kg, 300kg
TNS4660 / TNS4660-LE / TN4660-SE 46cm x 60cm/18.11in x 23.62in 60kg, 150kg, 300kg
TNS6060 60cm x 60cm/23.62in x 23.62in 150kg, 300kg

pdf- Download data sheet

pdf- Download Brochure

pdf- NTEP Certificate of Conformance

pdf- Measurement Canada Approval

pdf- Download Installation Guide

pdf- Download manual for 805TS and 805BS indicator
