ANYLOAD | FSP Mild Steel Floor Scale, Measurement Canada and NTEP Approved Floor Scale

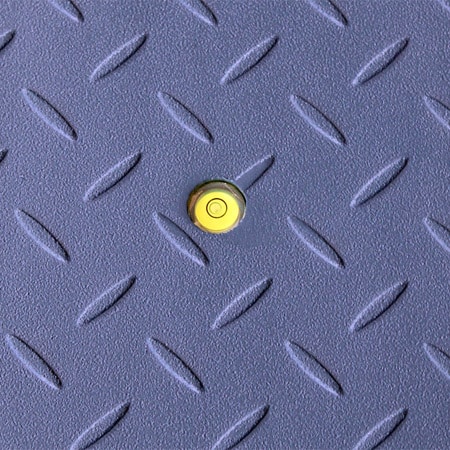

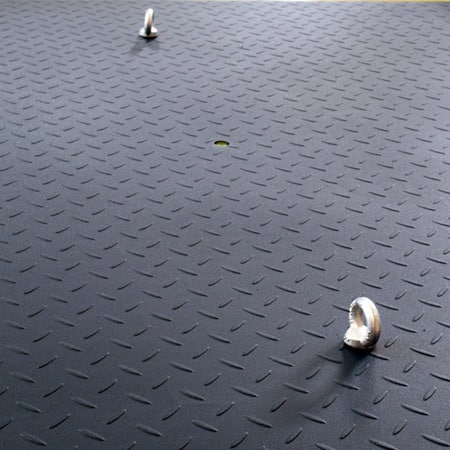

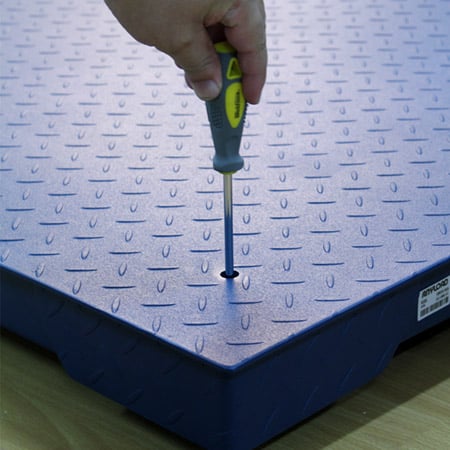

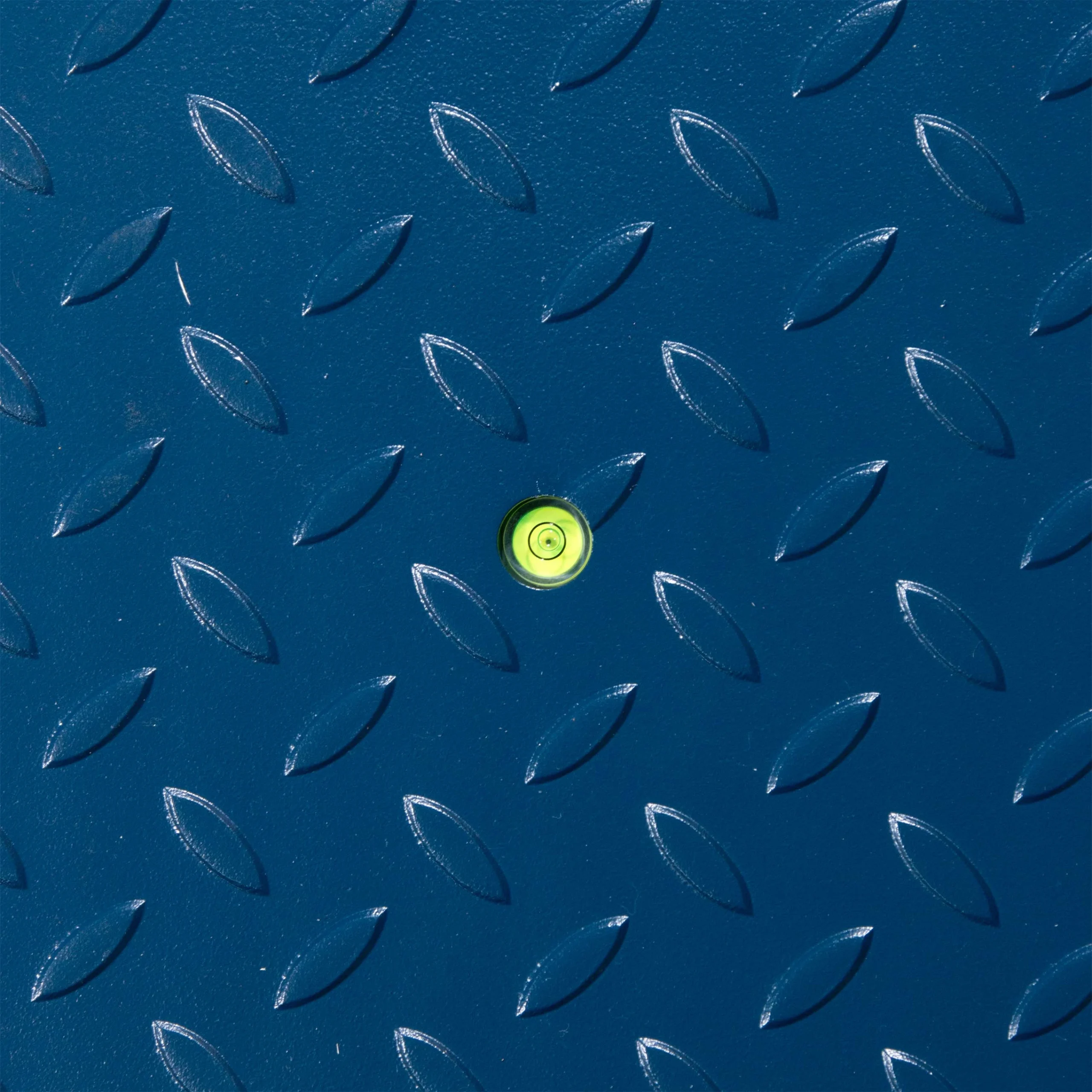

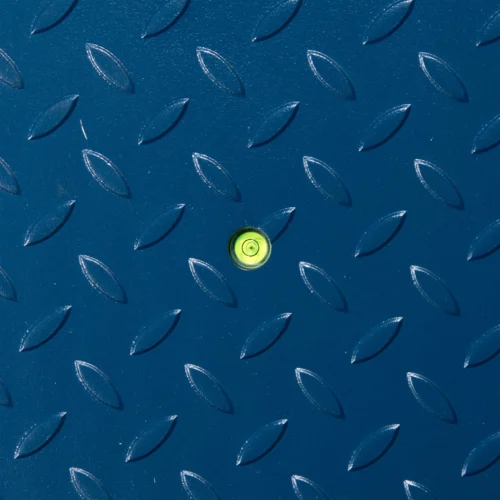

Top plate access for floor scaleFloor scale level bubbleLevel bubble, threaded eye bolt holes and eye bolts for easy lifting and levelling

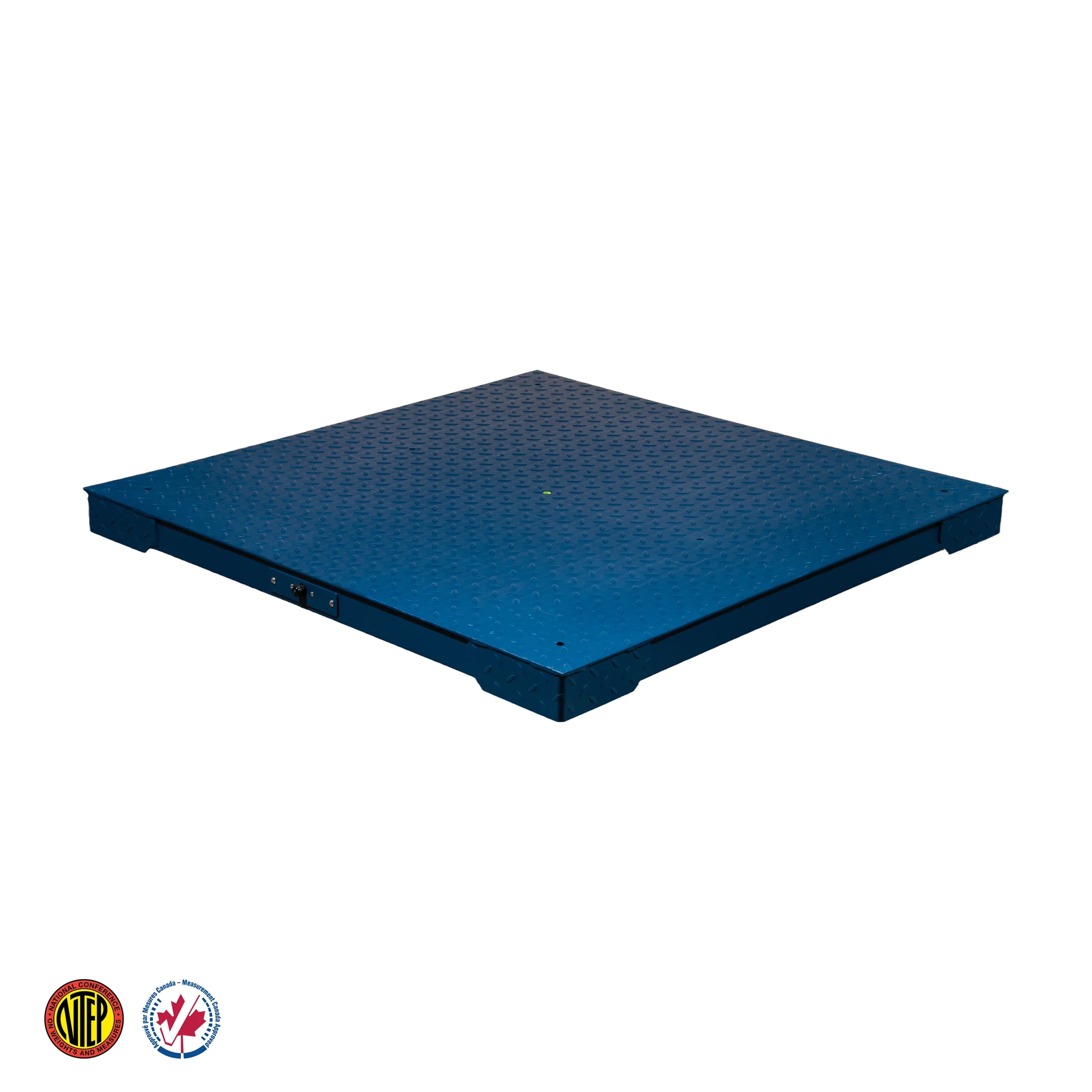

FSP Mild Steel Floor Scale

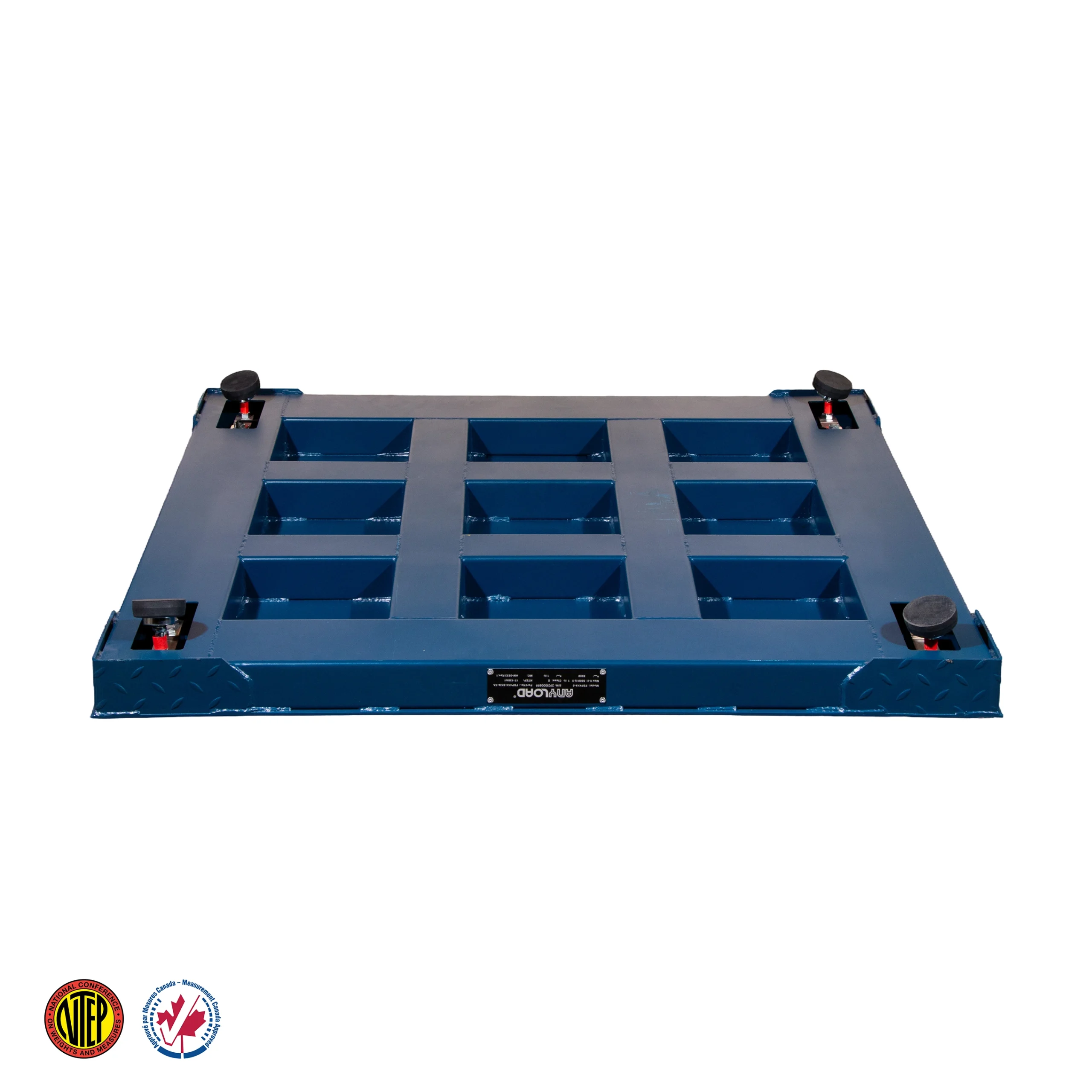

ANYLOAD FSP mild steel floor scales are engineered with a symmetrical grid channel frame and checkered deck plate with rugged diamond safety tread. The FSP floor scale is a heavy-duty industrial design and is ideal for industrial and commercial environments due to the durability provided by the structural support of the channel frame and safety benefits of the slip and skid resistant checkered surface. FSP floor scales include ANYLOAD alloy steel load cells, adjustable alloy steel feet and a built-in junction box. Additional design features include factory finished corner error adjustments, an integrated level bubble and threaded eyebolt holes on the deck plate for facilities that need to frequently move the location of the floor scale and need to facilitate the scale leveling. FSP floor scales are covered under warranty for a period of 3 years and are available in standard as well as custom sizes. The FSP is legal for trade and certified by Measurement Canada and NTEP:

  • NTEP 1:6 000 Class III, Multiple Cell certified from 1Klb-10Klb
  • NTEP 1:3 500 Class III, Single Cell certified from 1Klb-10Klb
  • OIML MAA, CE, RoHS and ExNepsi certified load cells
  • NTEP certified floor scales: 3'x3' to 5'x5'-1Klb to 10Klb Class III
  • Measurement Canada certified floor scales: 3x3-5Klb, 4x4-5Klb, 5x5-5Klb

Complete Set Includes:

  • IP67 alloy steel load cells 563YH, OIML MAA & NTEP certified
  • 4 swivel mild steel feet AMF with removable rubber base
  • 2 eyebolts
  • 1 IP67 aluminum junction box J04EA-16
  • 1 level bubble
Clear
Product Enquiry
Part Number Rated Capacities Load Cell Capacities Size (LxWxH) in Inches Weight
FSP3x3 500kg/1t/2.5t/1Klb/2Klb/5Klb 563YH-300kg/500kg/1t/500lb/1Klb/2.5Klb 36" X 36" X 4" 72kg / 159lb
FSP4x4 500kg/1t/2.5t/5t/1Klb/2Klb/5Klb/10Klb 563YH-300kg/500kg/1t/2t/500lb/1Klb/2.5Klb/SE5Klb 48" X 48" X 4" 120kg / 265lb
FSP5x5 2.5t/5t/5Klb/10Klb 563YH-1t/2t/2.5Klb/SE5Klb 59" X 59" X 4" 200kg / 441lb
FSP5x5-LE 10Klb 563YH-5Klb 59" X 59" X 5" 210kg / 463lb
FSP4x6 2.5t/5t/5Klb/10Klb 563YH-1t/2t/2.5Klb/SE5Klb 48" X 72" X 4" ---
FSP5x7 2.5t/5t/5Klb/10Klb 563YH-1t/2t/2.5Klb/SE5Klb 59" X 84" X 4" ---

pdf- Download data sheet

pdf- Download brochure

pdf- Download manual

pdf- NTEP Certificate of Conformance

pdf- Measurement Canada Approval

pdf- OIML Certificate of Conformity

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity
