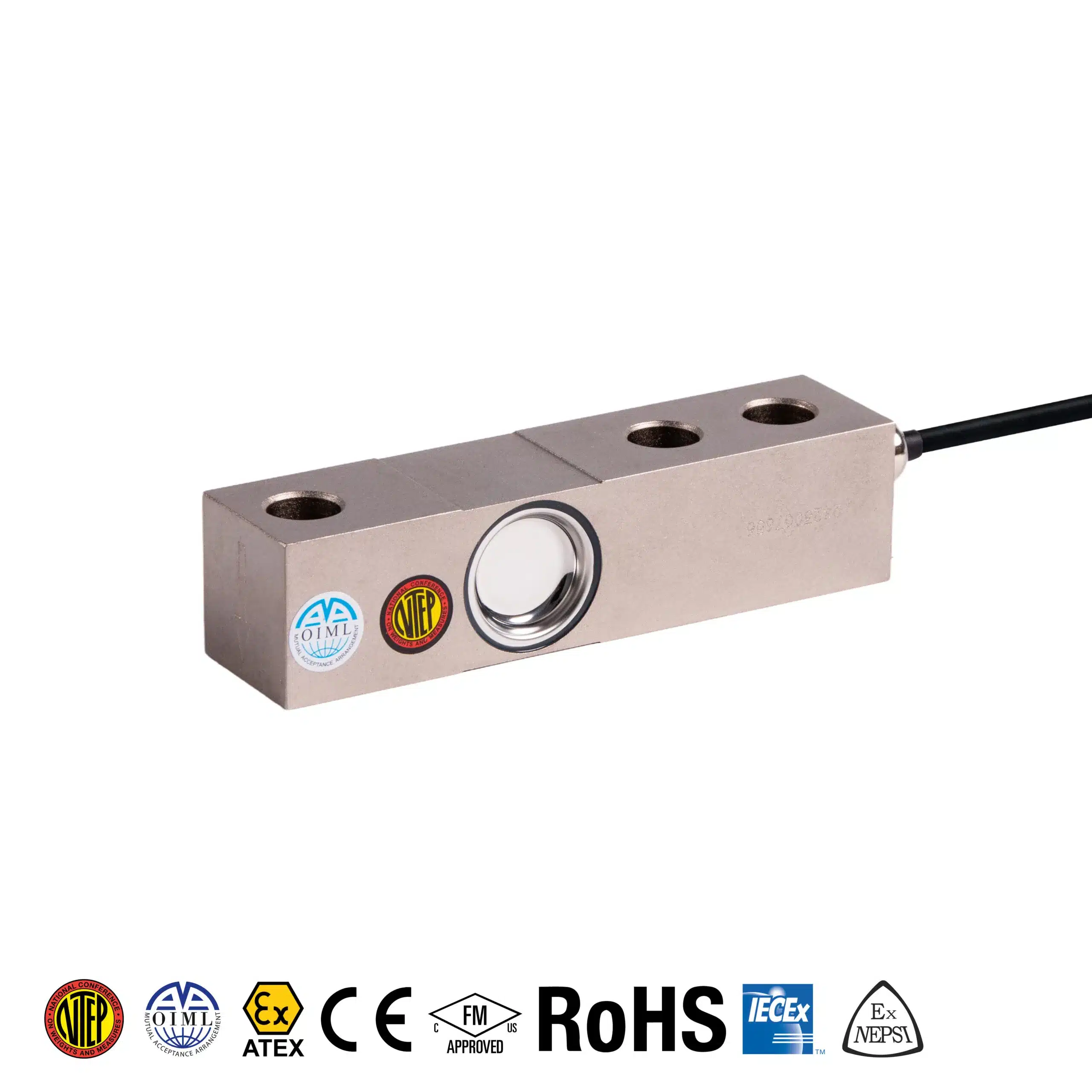

563YH-23 Single Ended Beam Load Cell

563YH-23 Single Ended Beam Load Cell

Cost-effective and heavy-duty, the 563YH-23 is a single-ended beam load cell. Its low-profile design with IP67 water resistance and high resistance to overload and shock and side loading. This model is popular in higher accuracy applications, including platform scales, pallet scales, process weighing, and more.

Compression weigh modules (563YHM2  / 563YHM4-02) are available to facilitate installation for ideal loading, with easy-to-install mounting options, allowance for thermal expansion, and protection from irregular loading.

The MK4-563YHM4 weigh module kit features four best-selling 563YH-23 true shear beam load cells and four 563YHM4-02 weigh modules, including a home run cable and junction box.

See more

Datasheet
Brochure

- +

Features

  • Rated Capacities: 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb
  • Material: Alloy steel
  • Full Scale Output: 3mV/V± 0.25%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • 250lb-2.5Klb: up to NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple Cell
    4Klb-20Klb: up to NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell
  • 1Klb-5Klb: up to OIML MAA C4, Y=15 000;
    10Klb-20Klb: up to OIML MAA C6, Y=8 500
  • CE, RoHS and Ex(NEPSI) certified
  • ATEX, FM, IECEx available upon request

Specifications

Rated Capacities 250lb, 500lb, 750lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb
Full Scale Output 3mV/V ± 0.25%
Zero Balance ± 0.02mV/V
Non-linearity < Cap.≤750lb:<±0.03%; Cap.>750lb:<±0.02%
Repeatability < ± 0.02%
Hysteresis Error < Cap.≤750lb:<±0.03%; Cap.>750lb:<±0.02%
Creep in 30 minutes < ± 0.025%
Input Resistance 350Ω ± 7Ω for lb
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Compensated Temperature Range –10°C to 50°C/14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP67

Technical Files


Datasheet – 563YH-23


Brochure – 563YHM4-02

3D Drawings


563-YH-23-(5-10)Klb


563-YH-23-(15-20)Klb


563-YH-23-250lb-4Klb

Approvals


NTEP Certificate of Conformity


CE Certificate of Conformity


RoHS Certificate of Conformity


Explosion Protection Certificate of Conformity


National Measurement Institute (NMI) of Australia

Interchangeable

Artech 30310
Coti Global CG-23
Rice Lake RL30000
Rice Lake RL35023
Rice Lake RL32018
Vishay Celtron SQB
Vishay Revere Transducers 5123
Vishay Sensortronics 65023A
Vishay Tedea-Huntleigh 3411
Grain Bin Weighing

Grain Bin Weighing

Agriculture Industry

Bin weighing systems are essential in industrial and agricultural settings where accurate, continuous monitoring of storage bin or tank contents is required. Whether measuring grains, chemicals, or liquids, ensuring precise load measurements directly impacts process control, inventory accuracy, and operational efficiency.

Pallet Wrapper Weighing

Pallet Wrapper Weighing

Packaging Industry

Pallet wrappers play an important role in transportation and storage of goods in warehouses. Integrating a scale into the pallet wrapper itself streamlines operations by removing the need for an additional weighing process. This weight is crucial to manage shipping weight compliance and load distribution in transit and storage.

Road Line Painting Vehicle

Road Line Painting Vehicle Weighing

Automotive Industry

Line painting vehicles play a vital role in maintaining traffic safety with consistent markings across roads and highways. Monitoring paint usage is critical to ensure consistent line density during operations, especially in a dynamic environment. To address this, ANYLOAD 563YH single ended shear beam load cells are integrated into the mobile paint striper to track the live weight of the mounted paint drum during operation.
