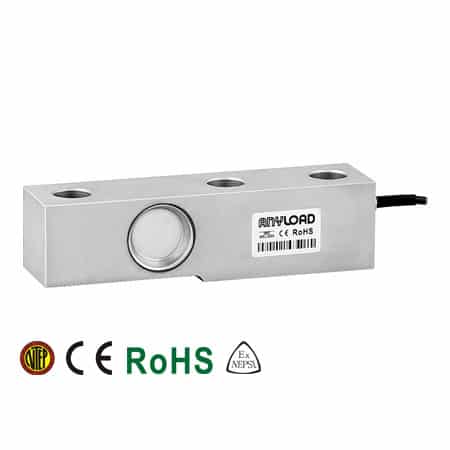

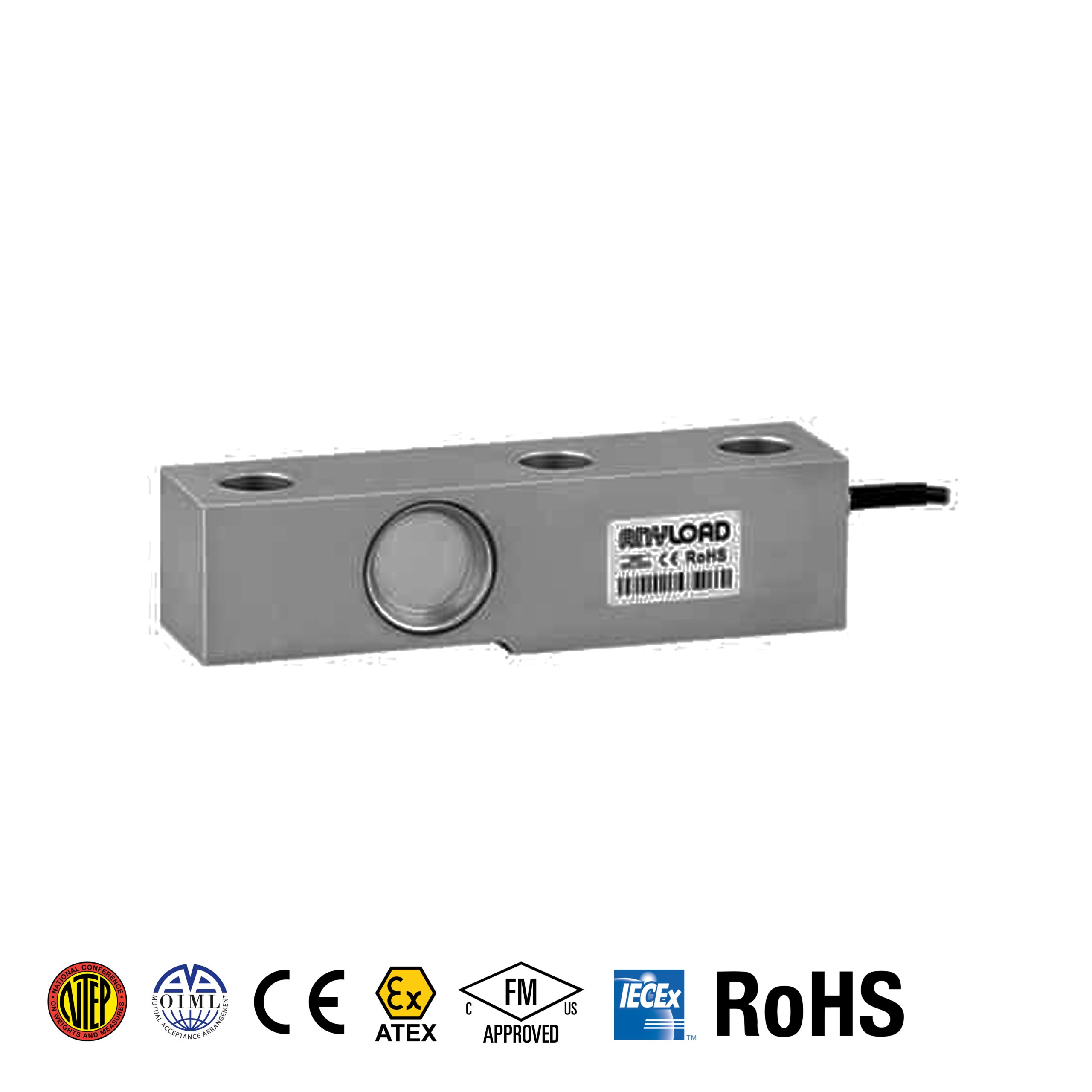

563YHFK Single Ended Beam Load Cell
The ANYLOAD 563YHFK is an alloy steel, nickel-plated single ended beam load cell available in capacities ranging from 125kg – 10t, designed for platform scales, floor scales, and general industrial weighing applications. Its compact shear beam construction delivers high accuracy with non-linearity, repeatability, and hysteresis error all within ±0.017%, making it suitable for both legal-for-trade and process weighing installations.
The 563YHFK is offered in two environmentally sealed configurations — IP66 for capacities up to 250kg and IP67 for capacities of 500 kg and above — providing reliable protection in wet, washdown, and demanding industrial environments. With a full scale output of 2.2 mV/V and compatibility with 10V excitation (15V maximum), the load cell integrates easily with standard weight controllers and instrumentation. The seven-meter factory-fitted cable and standardized mounting footprint simplify installation across a wide range of scale frame designs.
Certified to NTEP Class III and OIML standards across all capacity ranges, the 563YHFK is approved for use in single-cell and multiple-cell legal-for-trade weighing systems. ATEX, FM, and IECEx approved versions are also available with the “-Ex” suffix for use in hazardous and explosive environments. Interchangeable references to Kelba models KA125N through KA10000N are provided for retrofit and replacement applications.
If your application requires a high-accuracy, certified single ended beam load cell for platform scales, industrial weighing systems, or hazardous area installations, ANYLOAD can assist with selection and integration. Contact us to discuss capacity requirements, certifications, or custom configurations.
Features
- Rated capacities: 125kg – 10t
- Alloy steel construction with nickel plating
- Environmentally sealed to IP66 (≤250kg) / IP67 (≥500kg)
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- NTEP and OIML approved
- FM / ATEX / IECEx certified optional
Specifications
| Rated Capacities | 125kg – 10t |
|---|---|
| Full Scale Output | 125–500kg, 10t: 2.2 mV/V ± 0.25% 1t–5t: 2.2 mV/V ± 0.05% |
| Zero Balance | ± 0.02 mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 min. | < ± 0.023% |
| Input Resistance | 385Ω ± 15 |
| Output Resistance | 350Ω ± 3 |
| Element Material | Alloy Steel, Nickel Plated |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | >2 [50V DC] GΩ |
| Compensated Temperature Range | -10°C to 50°C / 14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP66 (Cap. ≤ 250kg) Environmentally Sealed / IP67 (Cap. ≥ 500kg) |
Interchangeable
| Kelba | KA125N (563YHFK – 125kg) |
|---|---|
| Kelba | KA250N (563YHFK – 250kg) |
| Kelba | KA500N (563YHFK – 500kg) |
| Kelba | KA1000N (563YHFK – 1t) |
| Kelba | KA2500N (563YHFK – 2.5t) |
| Kelba | KA5000N (563YHFK – 5t) |
| Kelba | KA10000N (563YHFK-10t) |
