563SHBB Single Ended Beam Load Cell

Name: 563SHBB Single Ended Beam Load Cell
SKU: 9535
Availability: InStock

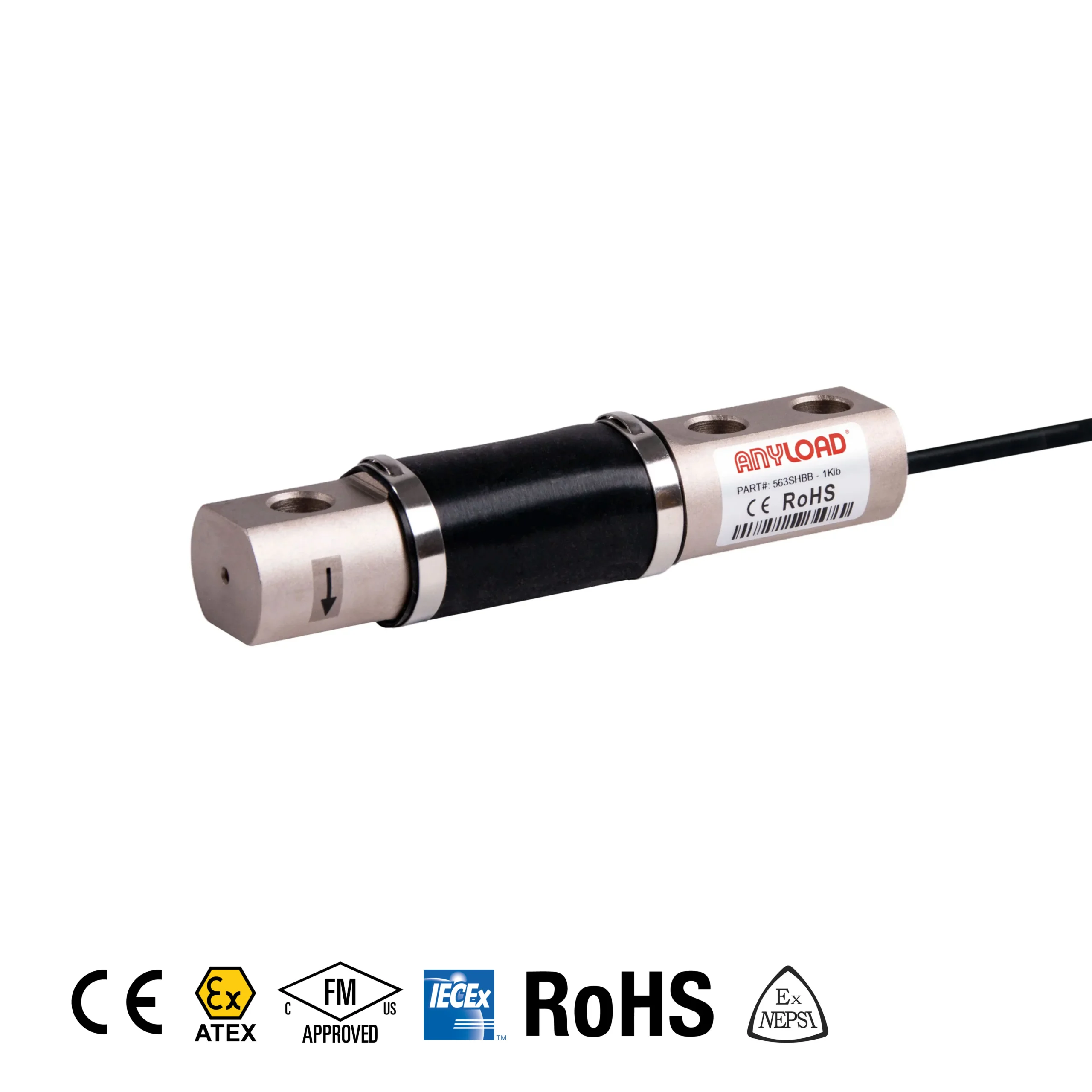

The ANYLOAD 563SHBB is a single ended beam load cell constructed from nickel-plated alloy steel, designed for platform scales, bench scales, and general industrial weighing applications requiring compact, reliable force measurement. Available in rated capacities from 50lb – 2.5Klb, the 563SHBB delivers a full scale output of 2.0 mV/V with non-linearity and hysteresis error each within ±0.030%, making it well-suited for both OEM scale manufacturing and replacement installations in commercial and industrial environments.

The 563SHBB features an environmentally sealed IP65 rating, providing protection against dust ingress and low-pressure water jets — suitable for use in food processing, agricultural, and light industrial settings where washdown or dusty conditions are a factor. Its compensated temperature range of -10°C to 50°C (14°F to 122°F), combined with a safe overload capacity of 150% and a breaking overload of 300% of full scale, ensures durability and consistent performance under variable loading conditions and real-world installation environments.

ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix for use in hazardous and explosive environments. RoHS and CE compliant.

ANYLOAD supports OEM scale manufacturers, system integrators, and industrial weighing professionals with load cell selection, technical specifications, and custom configuration guidance. Contact us to discuss your application requirements or to identify the correct 563SHBB capacity and configuration for your platform or bench scale build.

Datasheet

Part Number

Clear

- +

Features

Rated capacities: 50lb – 2.5Klb
Alloy Steel, Nickel Plated
Environmentally sealed to IP65
Safe Overload: 150% of full scale
Breaking Overload: 300% of full scale
FM / ATEX / IECEx certified optional

Specifications

Rated Capacities	50lb – 2.5Klb
Full Scale Output	2.0 mV/V ±0.25%
Zero Balance	±0.02 mV/V
Non-linearity	<±0.030%
Repeatability	<±0.020%
Hysteresis Error	<±0.030%
Creep in 30 min.	<±0.030%
Input Resistance	Cap. ≤1Klb: 700Ω ±20; Cap. =2.5Klb: 350Ω ±7
Output Resistance	Cap. ≤1Klb: 700Ω ±5; Cap. =2.5Klb: 350Ω ±3
Element Material	Alloy Steel, Nickel Plated
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	>2 [50V DC] GΩ
Compensated Temperature Range	-10°C to 50°C / 14°F to 122°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type / IP Rating	Environmentally Sealed / IP65
