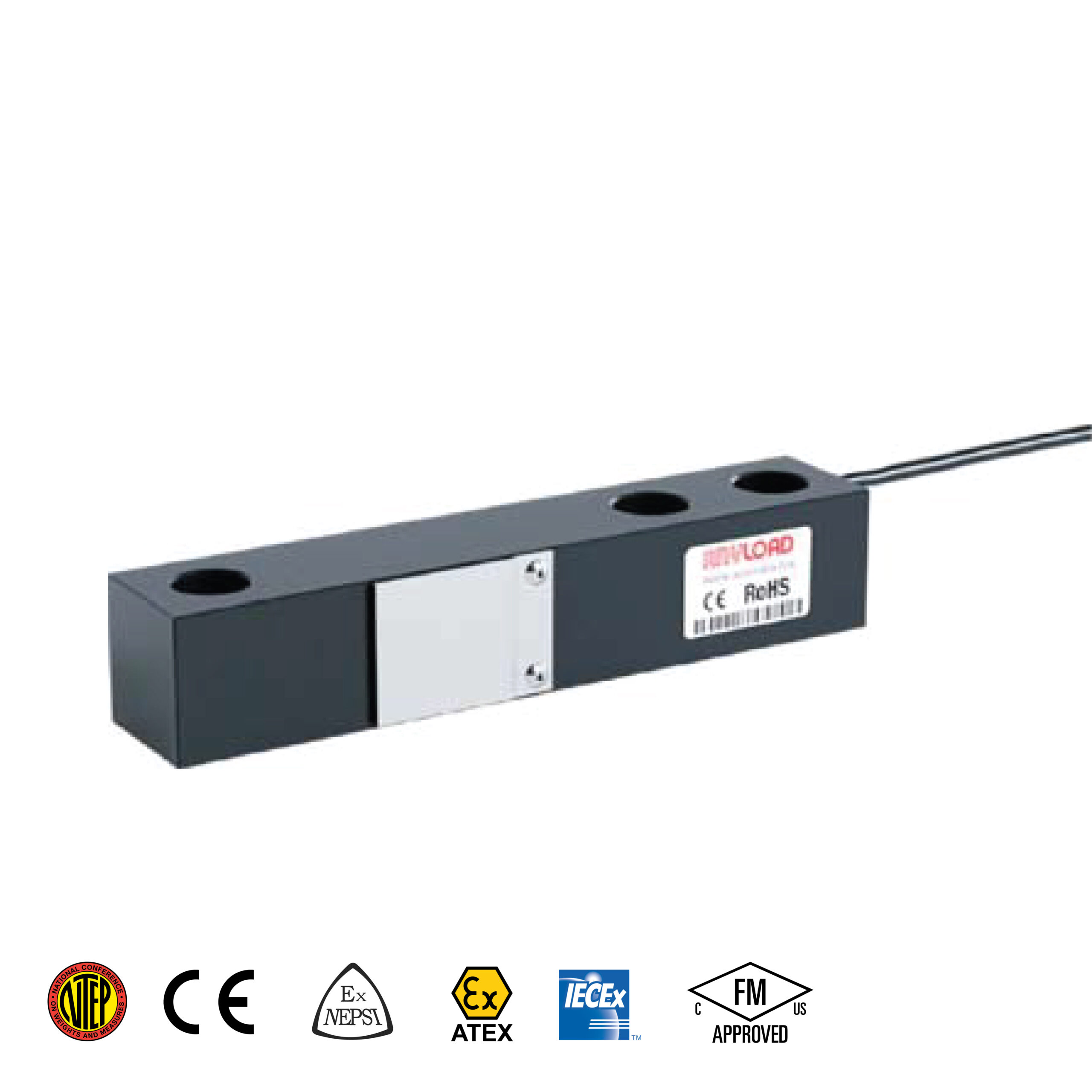

563YH-AA Single Ended Beam Load Cell
The ANYLOAD 563YH-AA is a single ended beam load cell constructed from nickel-plated alloy steel with electrophoretic paint coating, engineered for precision weighing applications requiring NTEP-certified accuracy. Available in a 6Klb rated capacity, the 563YH-AA delivers a full scale output of 0.6347 ±0.003 mV/V with non-linearity, repeatability, and hysteresis all within ±0.03%, making it well-suited for both single-cell and multi-cell legal-for-trade weighing systems.
The load cell features an IP67 environmentally sealed design, M12 male connector interface, and a compensated temperature range of -10°C to 50°C (14°F to 122°F), ensuring reliable operation in industrial and commercial environments. With a safe overload rating of 150% and a breaking overload of 300% of full scale, the 563YH-AA is built to withstand the rigors of demanding platform scale, conveyor, and industrial process weighing installations.
NTEP certified to Class III 1:6,000 (single cell) and 1:10,000 (multiple cell), the 563YH-AA is approved for legal-for-trade use in North America. ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix for hazardous area applications in industries such as oil and gas, chemical processing, and mining.
If your application requires a compact, high-accuracy single ended beam load cell with hazardous area certification options, ANYLOAD’s engineering team can assist with capacity selection, system integration, and custom configurations. Contact us to discuss your specific weighing requirements.
Features
- Rated capacities: 6Klb
- Alloy steel construction with nickel plated and electrophoretic paint finish
- Environmentally sealed to IP67 for harsh environments
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- FM/ ATEX/ IECEx certified optional
Specifications
| Rated Capacities | 6Klb |
|---|---|
| Full Scale Output | 0.6347 ± 0.003 mV/V |
| Zero Balance | ± 0.02 mV/V |
| Non-linearity | < ± 0.03% |
| Repeatability | < ± 0.03% |
| Hysteresis Error | < ± 0.03% |
| Creep in 30 min. | < ± 0.023% |
| Input Resistance | 375 ± 25Ω |
| Output Resistance | 350 ± 3Ω |
| Element Material | Alloy Steel, Nickel Plated and Electrophoretic Paint |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | >2 [50V DC] GΩ |
| Compensated Temperature Range | -10°C to 50°C / 14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP67 |
