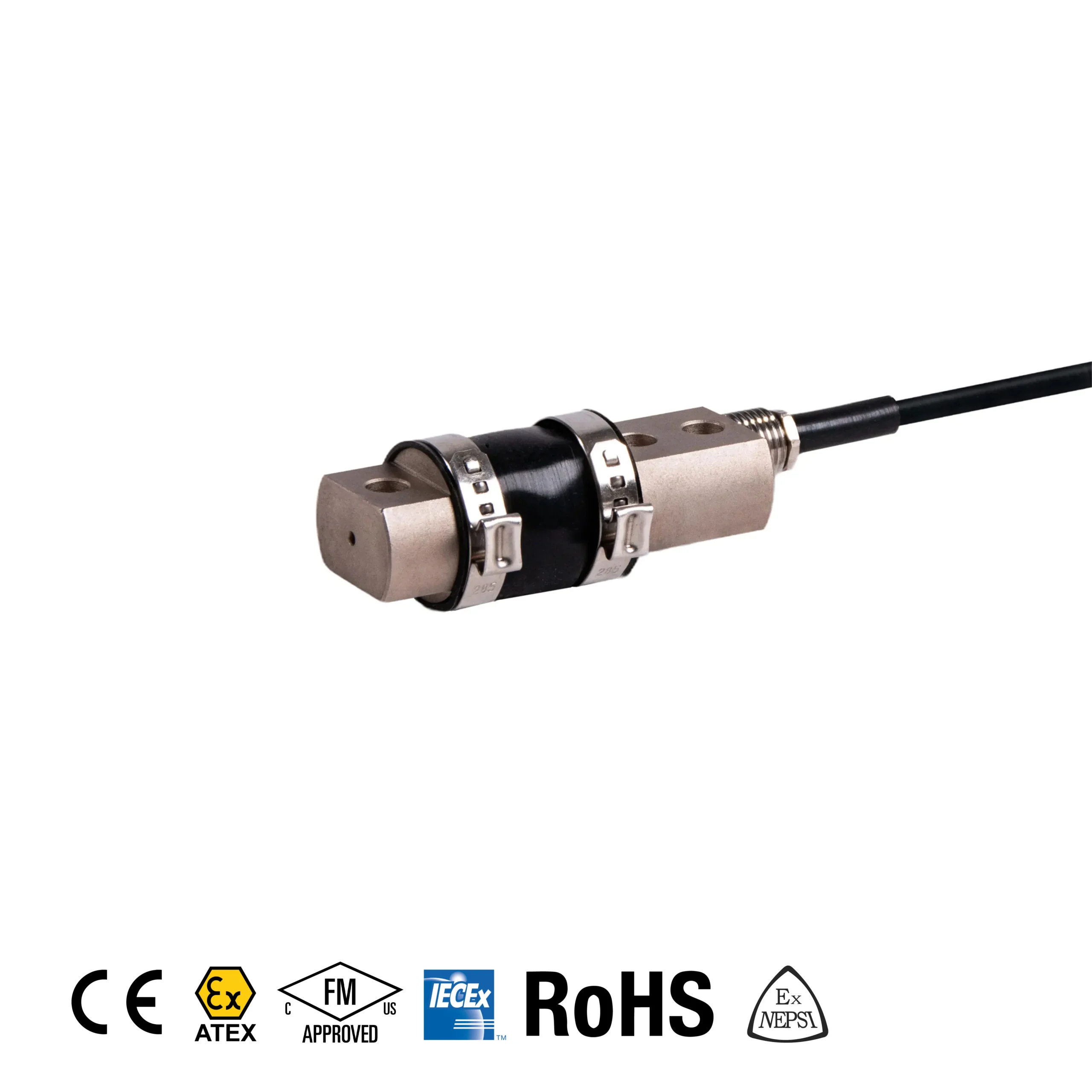

563SH Single Ended Beam Load Cell
The ANYLOAD 563SH is a nickel-plated alloy steel single ended beam load cell available in capacities from 25lb – 500lb, designed for platform scales, industrial weighing, and OEM applications requiring a compact, reliable shear beam sensor. Built with an environmentally sealed IP65 rating and a 3.0 mV/V full scale output, the 563SH delivers consistent accuracy with non-linearity and hysteresis errors both under ±0.030%, making it well-suited for demanding industrial and commercial weighing environments.
The 563SH is a direct interchangeable replacement for widely used load cells from Artech (50210), Rice Lake (RL50210), Vishay Revere Transducers (5503), and Vishay Sensortronics (60040), allowing straightforward drop-in upgrades or replacements in existing scale assemblies. Its compact, uniform body dimensions across the 25lb – 500lb capacity range simplify mounting and inventory management for scale manufacturers and service technicians. ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix for use in hazardous area applications.
Whether you are sourcing load cells for new platform scale builds, replacing legacy sensors from other manufacturers, or specifying components for industrial automation and process weighing systems, the ANYLOAD 563SH offers a proven, certified solution backed by ANYLOAD’s engineering and technical support. Contact us to discuss capacity selection, hazardous area requirements, or volume ordering.
Features
- Material: Alloy Steel
- Rated Capacities: 25lb, 50lb, 100lb, 150lb, 200lb, 250lb, 500lb
- Full Scale Output: 3mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP65
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
Specifications
| Rated Capacities | 25lb, 50lb, 100lb, 150lb, 200lb, 250lb, 500lb |
|---|---|
| Full Scale Output | 3mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Combine Error | 0.03% of full scale |
| Non-linearity | < ± 0.030% |
| Repeatability | < ± 0.020% |
| Hysteresis Error | < ± 0.020% |
| Creep in 30 minutes | < ± 0.030% |
| Input Resistance | 400Ω ± 20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP65 |
Interchangeable
| Artech | 50210 |
|---|---|
| Rice Lake | RL50210 |
| Vishay Revere Transducers | 5503 |
| Vishay Sensortronics | 60040 |
