563YA Single Ended Beam Load Cell

Name: 563YA Single Ended Beam Load Cell
SKU: 1050
Availability: InStock

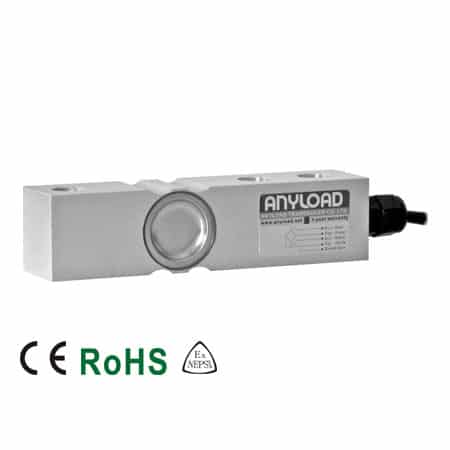

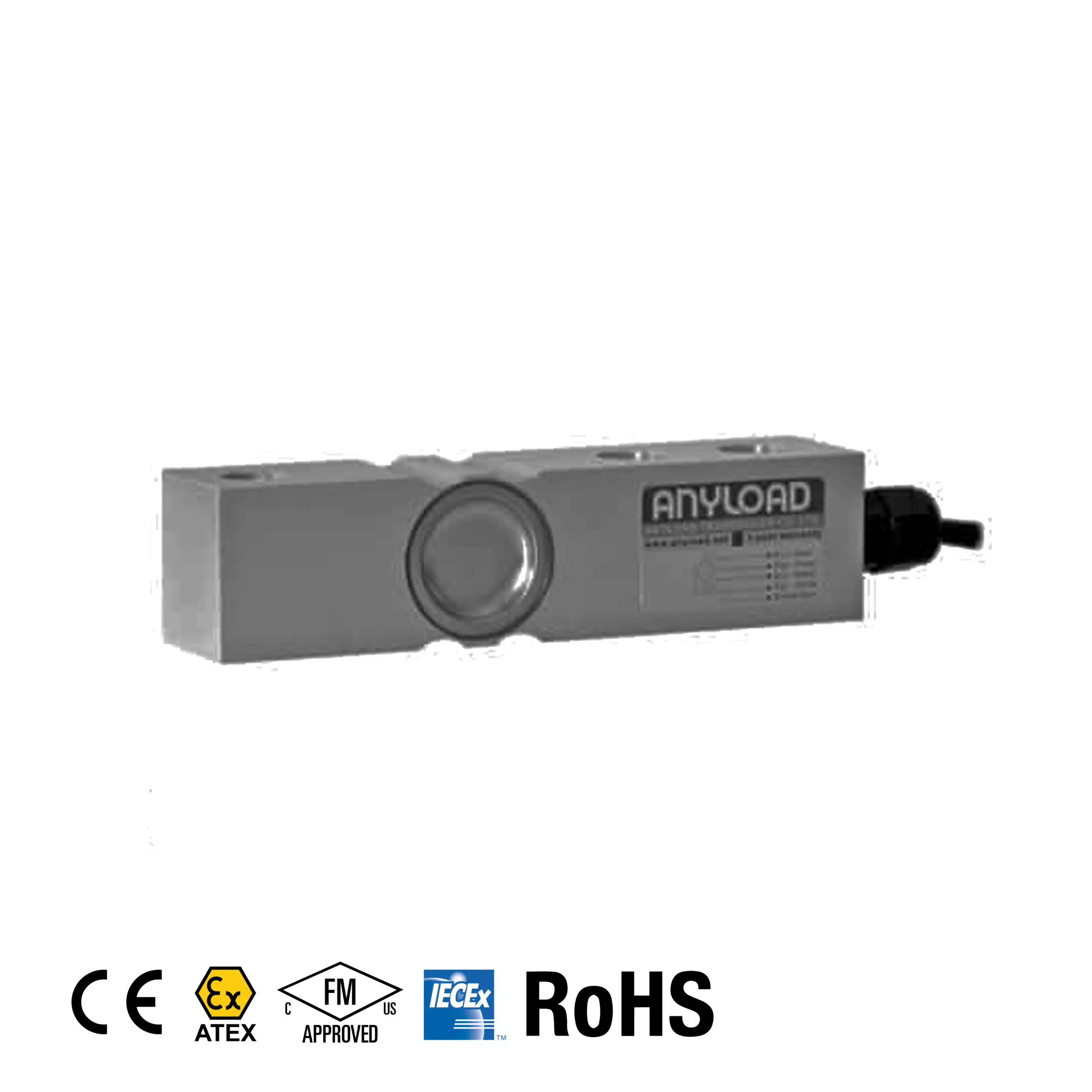

The ANYLOAD 563YA is a single ended beam load cell constructed from clear anodized aluminum, designed for general-purpose weighing applications requiring a compact, cost-effective shear beam sensor. Available in 200lb – 300lb rated capacities, the 563YA delivers a full scale output of 3.0 mV/V ±0.25% with excellent accuracy characteristics, including non-linearity, repeatability, and hysteresis error all within ±0.017% of full scale.

The 563YA features an IP67 environmentally sealed rating, making it suitable for use in light industrial and commercial environments where moisture protection is required. With a recommended excitation of 10V (15V maximum) and standard 350Ω input and output resistance, the sensor integrates easily into most analog weighing systems and instrumentation. Its 1/2-20 UNF-2B mounting thread and dimensional footprint make it a direct interchangeable replacement for the Vishay Tedea-Huntleigh Model 3310 in imperial thread configurations.

For applications requiring hazardous area compliance, the 563YA is also available in ATEX, FM, and IECEx approved versions with the “-Ex” suffix, broadening its suitability for use in potentially explosive environments. The load cell ships with a 6-meter cable and weighs approximately 0.6 kg, offering a lightweight and easy-to-install solution for platform scales, bench scales, industrial weighing systems, and OEM applications.

ANYLOAD supports engineers and system integrators in selecting the right load cell for their specific application requirements. Contact our team to discuss capacity ranges, hazardous area certifications, or custom configurations suited to your platform or process weighing needs.

Datasheet

Features

Rated capacities: 200lb – 300lb
Aluminum construction with clear anodized finish
Environmentally sealed to IP67
Safe Overload: 150% of full scale
Breaking Overload: 300% of full scale
FM / ATEX / IECEx certified optional

Specifications

Rated Capacities	200lb – 300lb
Full Scale Output	3.0 mV/V ± 0.25%
Zero Balance	± 0.02 mV/V
Non-linearity	< ± 0.017%
Repeatability	< ± 0.017%
Hysteresis Error	< ± 0.017%
Creep in 30 min.	< ± 0.023%
Input Resistance	350Ω ± 7
Output Resistance	350Ω ± 3
Element Material	Aluminum, Clear Anodized
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	>2 [50V DC] GΩ
Nominal Temperature Range	-10°C to 40°C / 14°F to 104°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type / IP Rating	Environmentally Sealed / IP67
