108JA Single Point Load Cell

108JA Single Point Load Cell

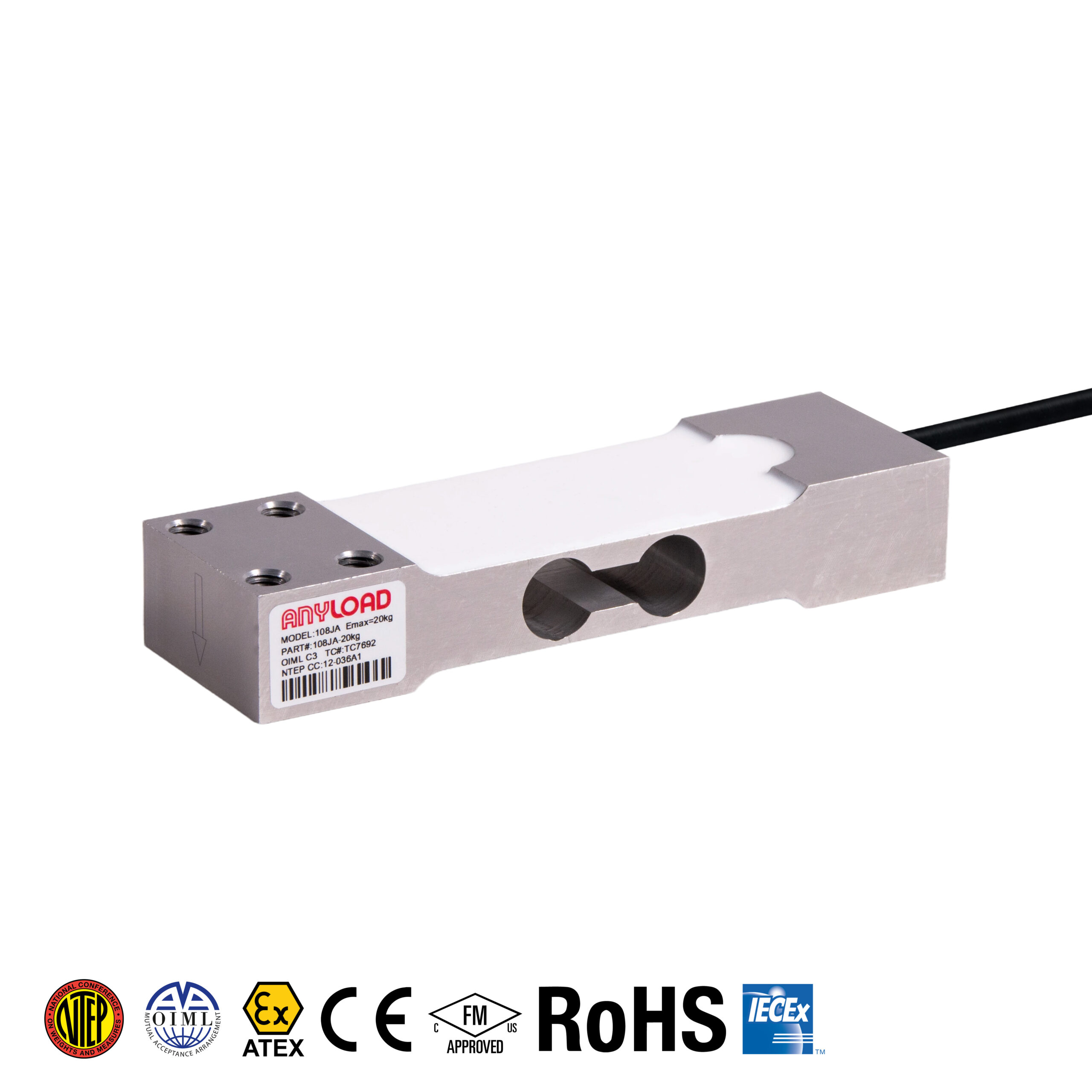

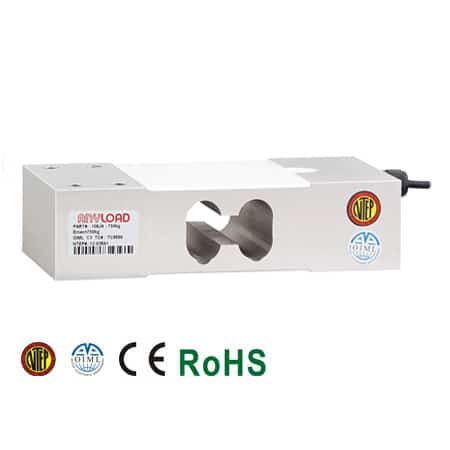

The ANYLOAD 108JA is an aluminum single point load cell available in capacities from 20kg to 2t, designed for platform scale and industrial weighing applications. Built with a clear anodized aluminum element and rated to IP66, the 108JA delivers a full scale output of 2.0 mV/V with non-linearity, repeatability, hysteresis, and creep all below ±0.017%, making it well suited for legal-for-trade and high-cycle industrial environments.

Platform size compatibility ranges from 460×600 mm at lower capacities up to 900×900 mm for capacities from 500kg to 2t. ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix for deployment in hazardous or explosive atmospheres.

NTEP certification covers Class III at 1:5,000 divisions for 20 – 500kg and 1:4,000 divisions for SE600kg to 2t, while OIML certification spans accuracy classes C4 through C7.5 depending on capacity.

See more

Datasheet
- +

Features

  • Rated Capacities: 20kg, 50kg, 60kg, LE60kg, 75kg, 100kg, LE100kg, 150kg, SE150kg, 200kg, SE200kg, 300kg, SE300kg, 400kg, SE400kg, 500kg, SE600kg, 750kg, 1t, 1.5t, 2t
  • Material: Aluminum, Clear Anodized
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • 20kg-500kg: NTEP 1:5 000 Class III, Single Cell;
    SE600kg-2t: NTEP 1:4 000 Class III, Single Ce
  • 20kg-30kg: OIML-CS C7.5, Y=20 000;
    50kg-500kg: OIML-CS C6, Y=29 000;
    SE600kg-2t: OIML-CS C4, Y=4 000
  • CE, RoHS and Ex(NEPSI) certified
  • ATEX, FM, IECEx available upon request
  • Higher Accuracy Available: 108JA-A2

Specifications

Rated Capacities 20kg, 50kg, 60kg, LE60Kg, 75kg, 100kg, LE100kg, 150kg, SE150kg, 200kg, SE200kg, 300kg, SE300kg, 400kg, SE400kg, 500kg, SE600kg, 750kg, 1t, 1.5t, 2t
Reference Max. Platform Size ≤ 100kg 460mm x 600mm
Reference Max. Platform Size (150-400)kg 600mm x 600mm
Reference Max. Platform Size ≥ 500kg 900mm x 900mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.017%
Input Resistance 415Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0023% of Cn/k
Nominal Temperature Range –10°C to 40°C/14°F to 122°F
Service Temperature Range –18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

Technical Files


Datasheet – 108JA

3D Drawings


108JA-(20-400)kg


108JA-(150-2000)kg

Approvals


NTEP Certificate of Conformity


CE Certificate of Conformity


RoHS Certificate of Conformity


National Measurement Institute (NMI) of Australia


OIML Certificate of Conformity

Interchangeable

ANYLOAD 108JA-LE60kg 108LA-60kg
ANYLOAD 108JA-LE100kg 108LA-100kg
ANYLOAD 108JA-SE150kg 108LA-150kg
ANYLOAD 108JA-SE200kg 108LA-200kg
ANYLOAD 108JA-SE300kg 108LA-300kg
ANYLOAD 108JA-50kg 651JS-50kg*
ANYLOAD 108JA-75kg 651JS-75kg*
ANYLOAD 108JA-LE75kg 651JS-75kg*
ANYLOAD 108JA-SE200kg 651JS-200kg*
ANYLOAD 108JA-SE400kg 651JS-400kg*

* Most dimensions are the same, except overall height (H on the drawing): 651JS all capacities at 49mm(1.9inch), while 108JA-50kg & 108JA-75kg 25mm(0.98inch), 108JA-LE75kg, 108JA-SE200kg, 108JA-SE400kg 40mm(1.57inch)
