ANYLOAD | J04EA-J04SA Junction Box

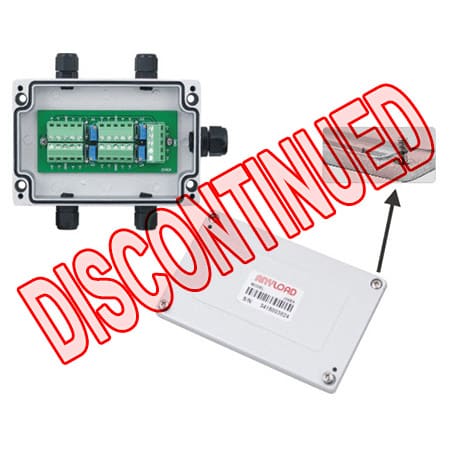

J04EA and J04SA Junction Box

ANYLOAD J04EA and J04SA junction and summing boxes accept inputs from multiple load cells and sum up the generated signals into a single output to ensure an accurate multi-cell balance adjustment.  The J04EA and J04SA are housed in an aluminum enclosure and are designed to accommodate two to four parallel load cell connections.

  • Enclosure Material: Aluminum casting
  • Number of cells: 2-4 single cells
  • Trimming Options: Individual cell with excitation or signal trim
  • Equipped with independent potentiometers
  • IP Rating: IP65
Clear
Product Enquiry
Number of cells 2-4 single cells
Input Cable Fittings PG7: 2mm-6mm diameter cable
Output Cable Fittings PG9: 4mm-8mm diameter cable
Trimming Individual cell with excitation or signal trim
Enclosure Material Aluminum casting
IP Rating IP65
Load Cell Resistance Signal Trim Excitation Trim
350Ω 3.6% of output 2.3% of output
700Ω 6.3% of output 1.3% of output
1000Ω 7.0% of output 1.0% of output

pdf- Download data sheet

pdf- Download manual - J04EA v1.2
pdf- Download manual - J04SA v1.2

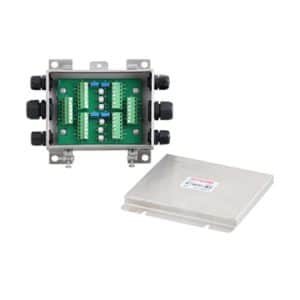

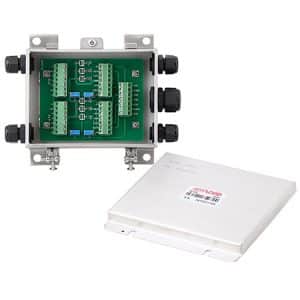

You may also like…
