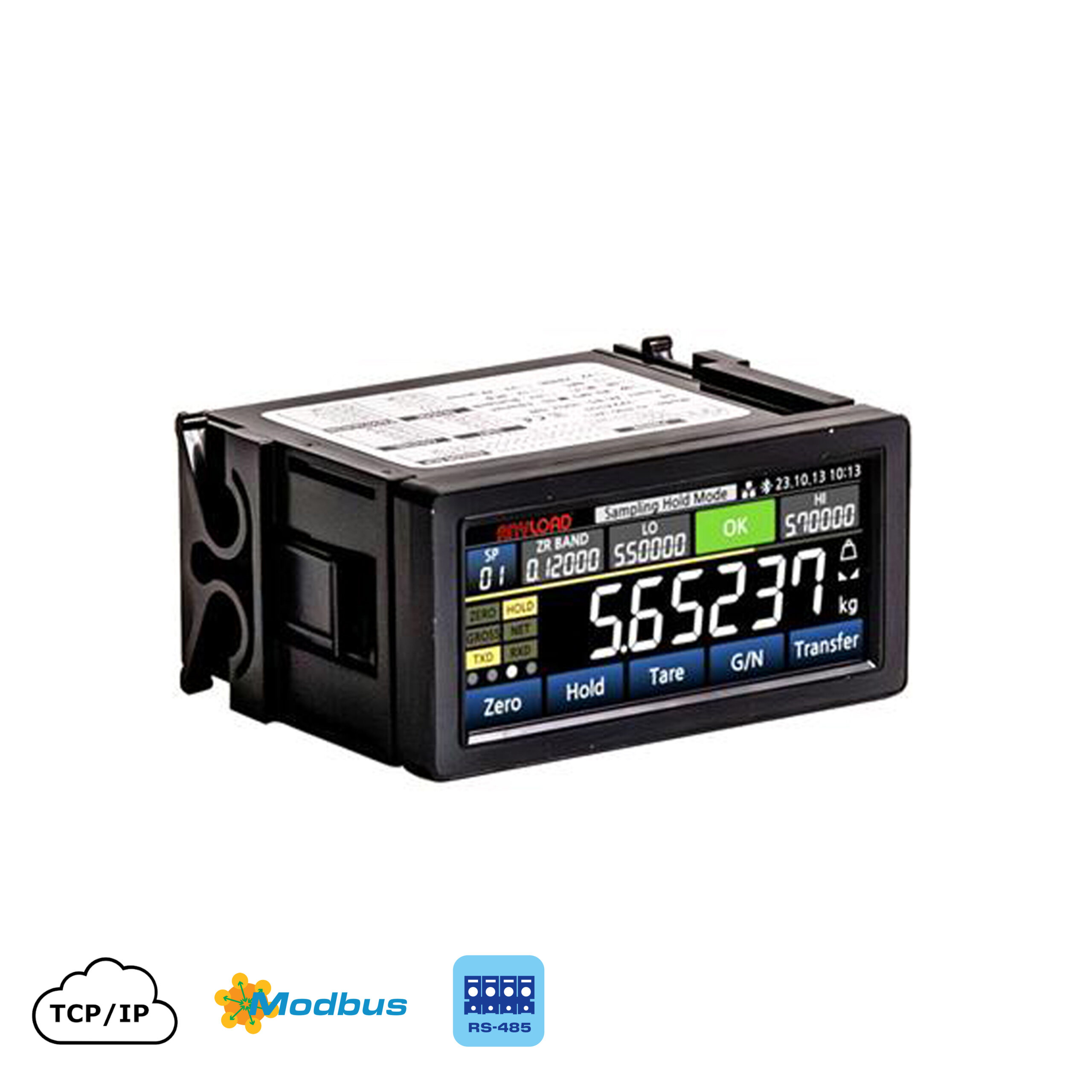

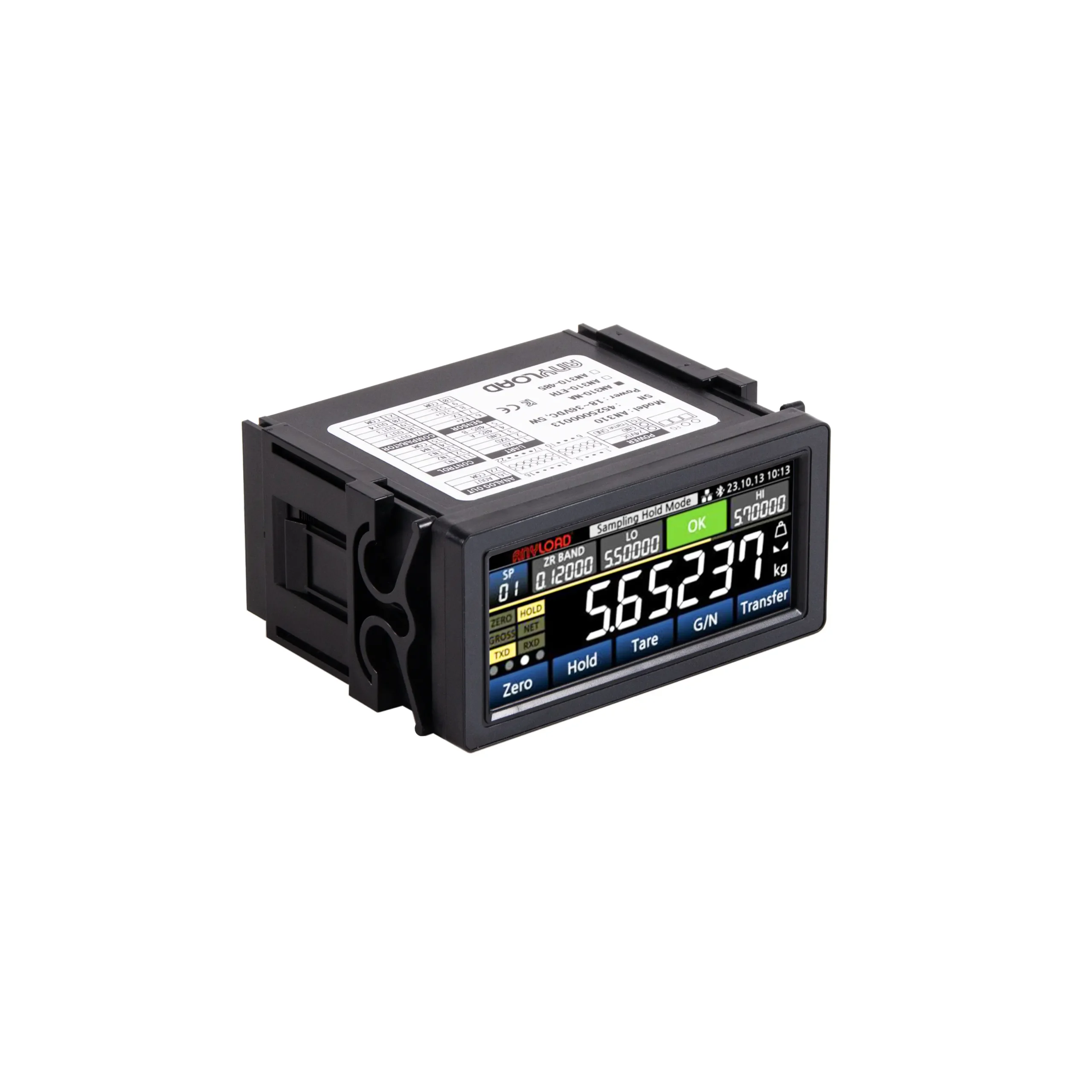

AN310 Panel Mount Indicator

The ANYLOAD AN310 is a precision panel mount indicator designed for advanced industrial weighing. Featuring a vivid 3.46″ IPS touch screen and ultra-fast 5 kHz ADC, it ensures accurate and responsive data capture—ideal for dynamic applications and automation systems.

Internal resolution of 16 million counts ensures exceptional precision and stability in measurement
Ultra-high-speed 5 kHz ADC enables fast, accurate weight capture, ideal for dynamic weighing scenarios.
Simultaneous multi-output support allows seamless integration with multiple systems and protocols.

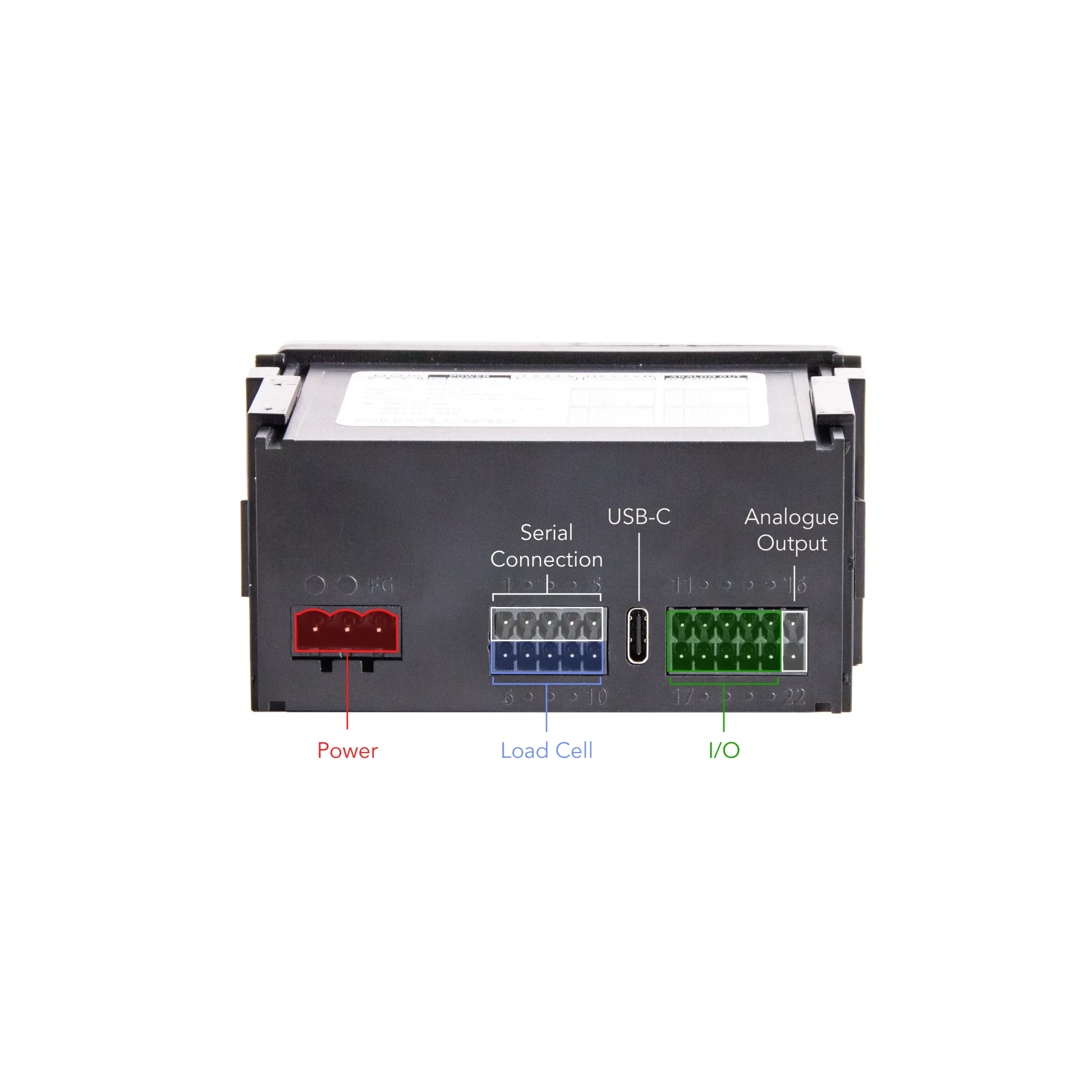

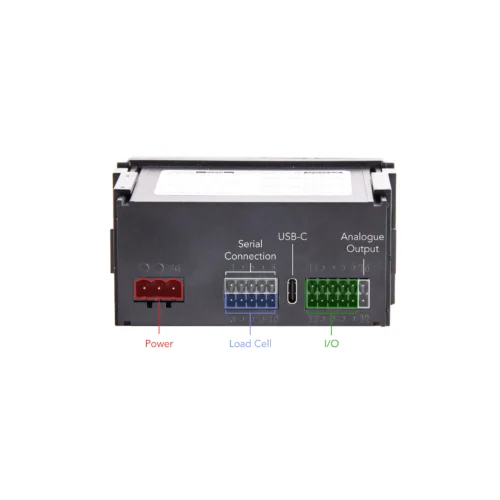

4 digital inputs (photocoupler) and 4 digital outputs (PhotoMOS relay) provide flexible external control and system interaction.
10-point calibration capability provides precise linearity across the full measuring range.
Password-protected calibration
Dual calibration modes support both real-load and digital methods for flexible installation and maintenance.
Stores up to 3 calibration backups with easy restore and automatic/manual save options

Datasheet

Part Number

Clear

Features

Internal resolution of 16 million counts ensures exceptional precision and stability in measurement
Ultra-high-speed 5 kHz ADC enables fast, accurate weight capture, ideal for dynamic weighing scenarios.
Simultaneous multi-output support allows seamless integration with multiple systems and protocols.
4 digital inputs (photocoupler) and 4 digital outputs (PhotoMOS relay) provide flexible external control and system interaction.
10-point calibration capability provides precise linearity across the full measuring range.
Password-protected calibration
Dual calibration modes support both real-load and digital methods for flexible installation and maintenance.
Stores up to 3 calibration backups with easy restore and automatic/manual save options

Specifications

Excitation Voltage	5VDC, up to 8 x 350Ω
Power Supply & Consumption	18 – 36 VDC, 5W
Non-linearity	0.01% FS
A/D Sample Rate	Up to 5000 Hz
IP Rating	IP40
Enclosure Material	ABS
Operating Temperature	-4°F – 140°F /-20°C – 60°C
Humidity	85% (non-condensing)
Analog Signal Input Range	0-39mV (-19.5-19.5 mV)
Unit of Measurement	g, kg, ton, lb, N, kN, kgm, Nm, lbin, lbft
Analogue Output (Optional)	0-10VDC; 0-5VDC; -5-5VDC; -10-10VDC; 4-20mA
Display Type	3.46″ color IPS LCD with touch screen
Resolution	Internal: 16,000,000 counts / Display: 999,999
Communication Port	RS-232 (default); RS-485 (Modbus-RTU); Ethernet (TCP/IP & Modbus-TCP)
